Prefab Steel Structure House with Galvanized Surface Treatment Customizable Size and EPS Sandwich Panel
Prefab Steel Structure House with Galvanized Surface Treatment Customizable Size and EPS Sandwich Panel
Prefab Steel Structure House with Galvanized Surface Treatment Customizable Size and EPS Sandwich Panel
Prefab Steel Structure House with Galvanized Surface Treatment Customizable Size and EPS Sandwich Panel
Prefab Steel Structure House with Galvanized Surface Treatment Customizable Size and EPS Sandwich Panel
Prefab Steel Structure House with Galvanized Surface Treatment Customizable Size and EPS Sandwich Panel
Specifications
Brand Name :
kxd
Model Number :
KXD-SSW1552
Certification :
ISO CE
Place of Origin :
Qingdao
MOQ :
500-1,999 Square Meters
Price :
US$49.00
Payment Terms :
T/T
Supply Ability :
50000ton/year
Delivery Time :
30days
Packaging Details :
pallet
Strength :
Strong
Specification :
Prefab Steel Buildings
Surfacetreatment :
Galvanized / Painted
Window Type :
Aluminum Alloy/PVC/Steel
Roof Cladding :
Steel Sheet，Sandwich Panel
Thickness Of Panel :
50mm, 75mm, 100mm, 150mm, 200mm, 250mm
Structure :
Modular
Description
Prefab Steel Structure Mobile Modular House
Product Overview
Model Number
KXD-SWT019
Certification
ISO, CE
Main Steel Frame
Metal
Size
Customized to Design Requirements
Product Description

Our prefabricated modular houses are constructed using light steel structures with sandwich panels for walls and roofs. Available insulation materials include polystyrene, polyurethane, rockwool, and fiberglass wool.

Key Features:
  • Easy assembly and disassembly for multiple uses
  • Cost-effective pricing from USD 30-60/m²
  • Rapid construction and simple installation
  • Environmentally friendly with minimal waste
  • Dry installation process with no construction garbage

Ideal for temporary buildings including dormitories, cafeterias, recreation rooms, washing facilities, and more.

Technical Specifications
Parameter Specification
Length 12000mm or customized
Width 5900mm or customized
Wall Height 2800mm or customized
Clear Height 2800mm or customized
Roof Slope 11 degrees or customized
Bearing Load 30kg/m²
Wind Pressure 0.45 KN/M²
Fire Proof Rating B2 Grade
Temperature Resistance -20°C to 50°C
Material Components
Component Specification
Wall Board 50mm-150mm EPS/glass wool/PU panel, 0.5mm color steel sheet
Roof Board 50mm-100mm EPS corrugated panel, 0.4mm steel sheet
Door Steel wood door, 750×2000mm with cylinder lock
Window (W-1) PVC, 940×1000mm, 5mm glass, sliding with fly screen
Window (W-2) PVC, 940×500mm, 5mm glass, sliding with fly screen
Base Structure H-style steel Q345, galvanized
Applications
Accommodation Units
Hospital/Medical Facilities
Labor Camps
Office Units
Dining Areas
Recreation Units
School Units
Relief Housing
Quality Certifications
  • CE EN1090 Certification
  • Safety Production License (No.150090-03)
  • State Qualification Class One (No.B1084037152301-6/2)
  • ISO9001:2008 Quality Management System
  • ISO14001:2004 Environment Management System
  • Occupational Health and Safety Management System

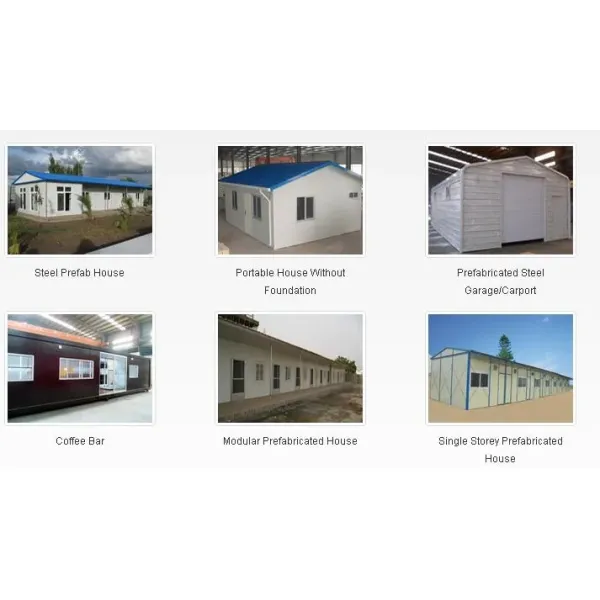

Product Gallery
Prefab Steel Structure House with Galvanized Surface Treatment Customizable Size and EPS Sandwich Panel Prefab Steel Structure House with Galvanized Surface Treatment Customizable Size and EPS Sandwich Panel Prefab Steel Structure House with Galvanized Surface Treatment Customizable Size and EPS Sandwich Panel Prefab Steel Structure House with Galvanized Surface Treatment Customizable Size and EPS Sandwich Panel
About KXD Steel Structure

Founded in 2004, Qingdao KXD Steel Structure Co., Ltd operates from a 50,000 square meter facility specializing in designing, manufacturing, and installing steel structure projects. Our team of 700 professionals includes 120 senior engineers and builders committed to delivering high-quality modular construction services.

Our Services Include:
  • Site Installation & Engineering Design
  • Camp Operations & Maintenance
  • Power Generation & Turnkey Solutions
  • Hospitality & Catering Services
  • Water & Sewage Treatment Systems
