Quick Assembly Eco-friendly High Strength Light Steel Structure Mini Storage Warehouse
Quick Assembly Eco-friendly High Strength Light Steel Structure Mini Storage Warehouse
Quick Assembly Eco-friendly High Strength Light Steel Structure Mini Storage Warehouse
Quick Assembly Eco-friendly High Strength Light Steel Structure Mini Storage Warehouse
Quick Assembly Eco-friendly High Strength Light Steel Structure Mini Storage Warehouse
Quick Assembly Eco-friendly High Strength Light Steel Structure Mini Storage Warehouse
Quick Assembly Eco-friendly High Strength Light Steel Structure Mini Storage Warehouse
Quick Assembly Eco-friendly High Strength Light Steel Structure Mini Storage Warehouse
Quick Assembly Eco-friendly High Strength Light Steel Structure Mini Storage Warehouse
Quick Assembly Eco-friendly High Strength Light Steel Structure Mini Storage Warehouse
Quick Assembly Eco-friendly High Strength Light Steel Structure Mini Storage Warehouse
Quick Assembly Eco-friendly High Strength Light Steel Structure Mini Storage Warehouse
Specifications
Model Number :
KXD-SS7
MOQ :
500 sqm
Delivery Time :
25 days
Wall And Roof :
Steel cladding sheet,Sandwich Panel
Price :
USD 69-100 per sqm
Construction Method :
Steel structure
Certification :
ISO/CE/SGS
Payment Terms :
L/C,T/T
Structure Type :
High Strength Steel Structure Frame
Feature :
Long lifetime , Eco-friendly, Re-cycled
Design Parameter :
Wind Load,Snow Load and Earthquake
Place of Origin :
Qingdao，China
Supply Ability :
500000 tons/month
Installation :
Prefabricated components for quick assembly
Brand Name :
KXD
Packaging Details :
steel pallet
Description
Peb Light Steel Structure Mini Storage Warehouses
Product Overview

Peb Light Steel Structure Mini Storage Warehouses offer a modern, efficient solution for storage and industrial applications. Compared with traditional concrete structure building systems, our light steel structure warehouses provide superior advantages including large span capabilities, reduced base structure demands, excellent seismic and wind resistance, attractive appearance, shorter construction cycles, strong corrosion resistance, environmental friendliness, and low maintenance costs.

Key Features
  • Custom design according to customer requirements
  • Manufactured under complete quality control system - ISO9001 certified
  • Professional installation with guidance from experienced engineers
  • Easy to assemble and dismantle
  • Environmentally friendly materials: reusable and recyclable
  • Shorter construction period with longer service life
  • High strength and stiffness with excellent weight-bearing capacity
  • Superior sound and heat insulation properties
  • Antiseptic, damp-proof, waterproof, and aseismatic capabilities
  • Fire-proof and heat/cold-insulation features
  • Non-shrinking construction that maximizes workspace
  • Minimal environmental pollution during construction
Technical Specifications
Component Specifications
Panel Material Parts External Wall Panel (Selectable):
• 50mm, 75mm or 100mm thickness EPS sandwich panel
• 50mm, 75mm or 100mm thickness Rockwool sandwich panel
• 900# Corrugated Galvanized Steel sheet with different colors
• Various PVC wall panels

Internal Wall Panel (Selectable):
• 50mm, 75mm or 100mm thickness EPS sandwich panel
• 50mm, 75mm or 100mm thickness Rockwool sandwich panel

Roofing Panel (Selectable):
• 50mm, 75mm or 100mm thickness EPS sandwich panel
• 50mm, 75mm or 100mm thickness Rockwool sandwich panel
• Corrugated Steel Sheet with insulating layer if needed
• Corrugated PVC roof panel

Skylight: 820# Glass Fiber Reinforced Plastics (FRP)
Door and Window External Door:
• Over-heat Orbit Sliding Door with double open
• Galvanized steel power-operated Roller Door

Internal Door:
• 50mm Thickness EPS sandwich panel with aluminum alloy door frame

Window:
• PVC Window or aluminum alloy window frame with glass
Drainage Parts Galvanized Water Channel:
• 2mm thickness galvanized steel water channel @ 3000mm or 2440mm/pcs

Down Spout:
• φ110 PVC Down spout with accessories
Connecting Pieces • Purline draw bar: φ12
• Horizontal Bracing: φ24 Circular Tube
• Knee-Bracing: L Steel
• Purline Drive pipe: Φ32*2
• Column Bracing: 24 Circular Tube
Other Components • Ventilating device
• Crane beam
• Canopy
• Bolts: Foundation bolt, High strength bolt, Normal bolts

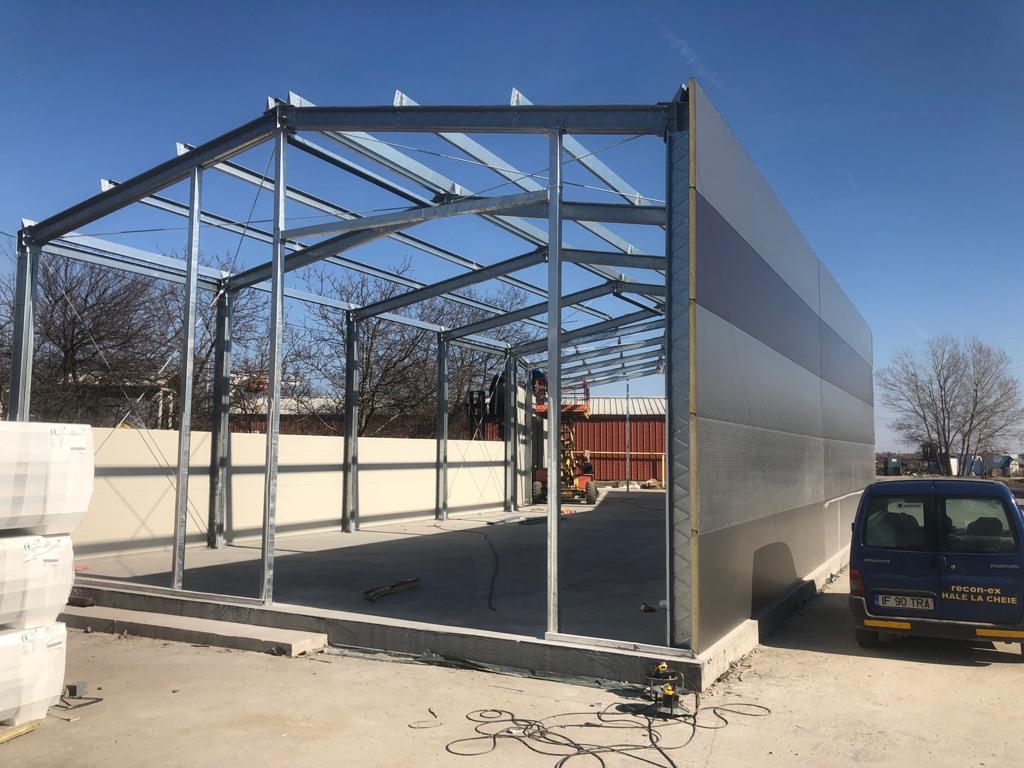

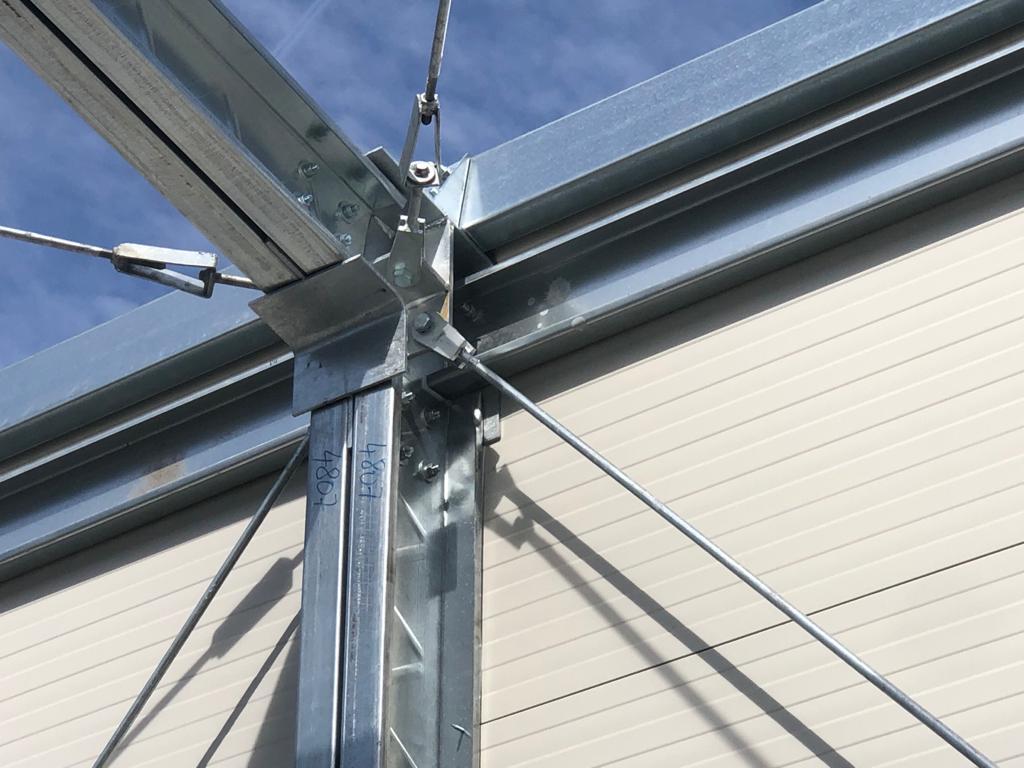

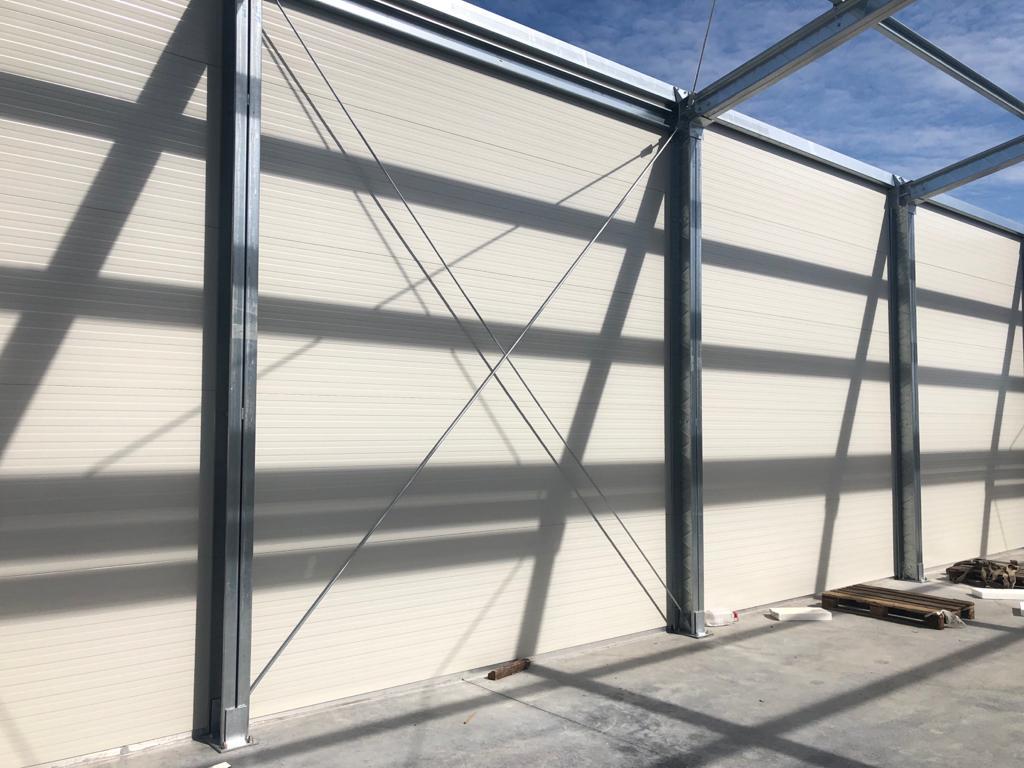

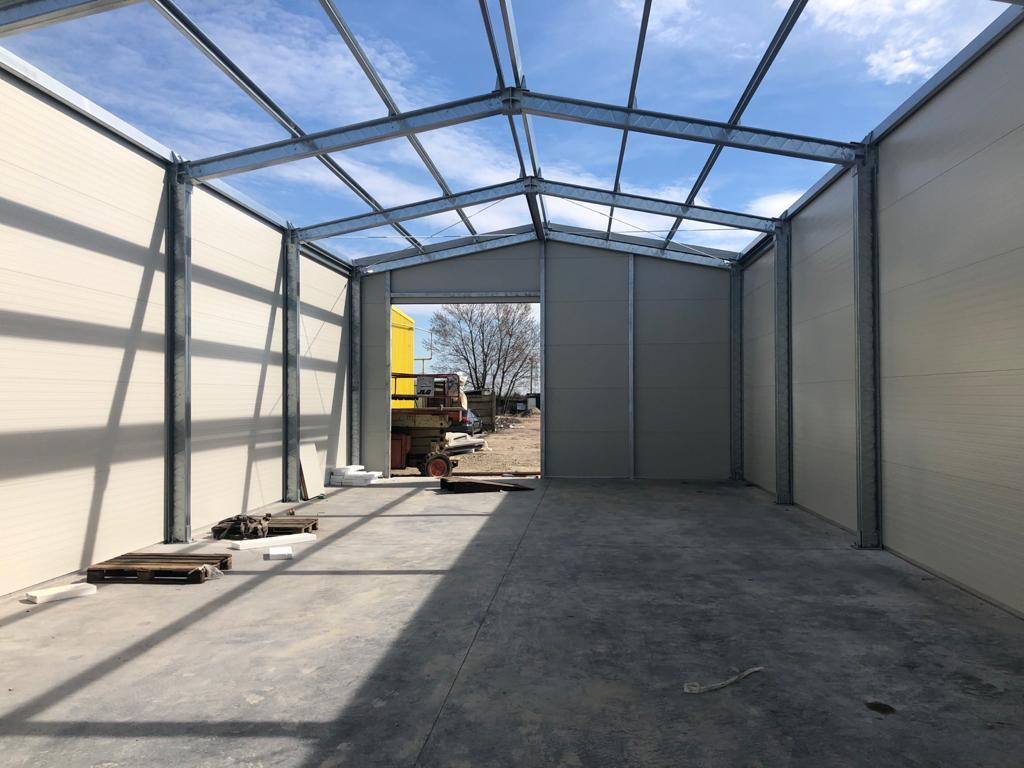

Product Gallery
