Specifications
Model Number :
KXD-SS7
Main Structurel Material :
Q355B/ASTM A572 Gr.50/EN S355/JIS SM490
MOQ :
500 sqm
Delivery Time :
25 days
Framework :
Steel structure
Price :
USD 69-100 per sqm
Turnkey Project :
Acceptable
Certification :
ISO/CE/SGS
Payment Terms :
L/C,T/T
Connection Form :
Bolt Connection
Quick Built :
Easy Install
Sandwich Panel :
EPS, Fiberglass, Rockwool, PU
Supply Ability :
500000 tons/month
Service :
Design, Manufacture And Installation
Brand Name :
KXD
Packaging Details :
steel pallet
Place of Origin :
Qingdao，China
Description
Prefab Metal Portal Frame Steel Structure Construction Workshop Buildings
Prefab Metal Portal Frame Steel Structure Construction Workshop Buildings
Technical Specifications
Items Specification
Main Steel Frame
Column Q235, Q345 Welded H Section Steel
Beam Q235, Q345 Welded H Section Steel
Sub-Frame
Purlin Q235 C and Z purlin
Knee brace Q235 Angle Steel
Tie Rod Q235 Circular Steel Pipe
Brace Q235 Round Bar
Vertical and Horizontal Support Q235 Angle Steel, Round Bar or Steel Pipe
Maintenance system
Roof Panel EPS Sandwich Panel / Glass Fiber Sandwich Panel / Rock Wool Sandwich Panel / PU Sandwich Panel / Steel Sheet
Wall Panel Sandwich Panel / Corrugated Steel Sheet
Accessories
Window Aluminium Alloy Window / PVC Window / Sandwich Panel Window
Door Sliding Sandwich Panel Door / Rolling Metal Door / Personal Door
Rainspout PVC
Crane 5MT, 10MT, 15MT and more
Surface Hot dip galvanized or painted
Live load on Roof In 120kg/Sqm (Color steel panel surrounded)
Wind Resistance Grade 12 Grades
Earthquake-resistance 12 Grades
Structure Usage Up to 50 years
Main Structure Features
We adopt hot-dip galvanizing C section or steel tube truss beam to reduce self-weight of design load and dosage of the steel. At the same time, hot-dip galvanized can widely improve anti-corrosion of the steel. The construction cycle of the steel structure work is short, which reduces the cost of the project effectively. The steel structure has strong shock resistance and can improve the comprehensive anti-seismic property of the whole house.
Advantages of Prefabricated Steel Structure Buildings
  • The construction speed is fast and the construction period is short
  • The weight of material is light and the strength is high
  • The performance on safety and seismic is good
  • The flexible structure can meet the needs of multiple functions
  • The steel structure materials can improve the use area of the warehouse building
  • The steel structure has long service life, usually more than 50 years
  • The materials are green, recyclable and environmental protection
  • Sandwich panel as wall and roof panel is good at heat and voice insulation
Drawings & Quotation Process
Customized Design Available
To provide you with an exact quotation and drawings, please provide the length, width, eave height and local weather conditions. We will quote for you promptly.
A. Customers with Existing Drawings
We can provide you the full service of production, shipment and installation guide, which is high quality and low cost. Because we own all kinds of technical facilities, complete test instruments and advanced production processes.
B. No Existing Drawings
Our excellent design team will freely design the light steel structure warehouse/workshop for you. Please provide the following information for a satisfactory drawing:
  • Dimension: Length, width, ridge height, eave height, etc.
  • Doors and Windows: Dimension, quantity, installation position
  • Local Climate: Wind load, snow load, roof load, Seismic load
  • Insulation materials: Insulated Sandwich panel or Single Steel Sheet
  • Crane beam: If needed, provide technological parameters
  • Usage: Application of light steel structure warehouse
  • Other requirements: Fire proofing, transparent roof, etc.

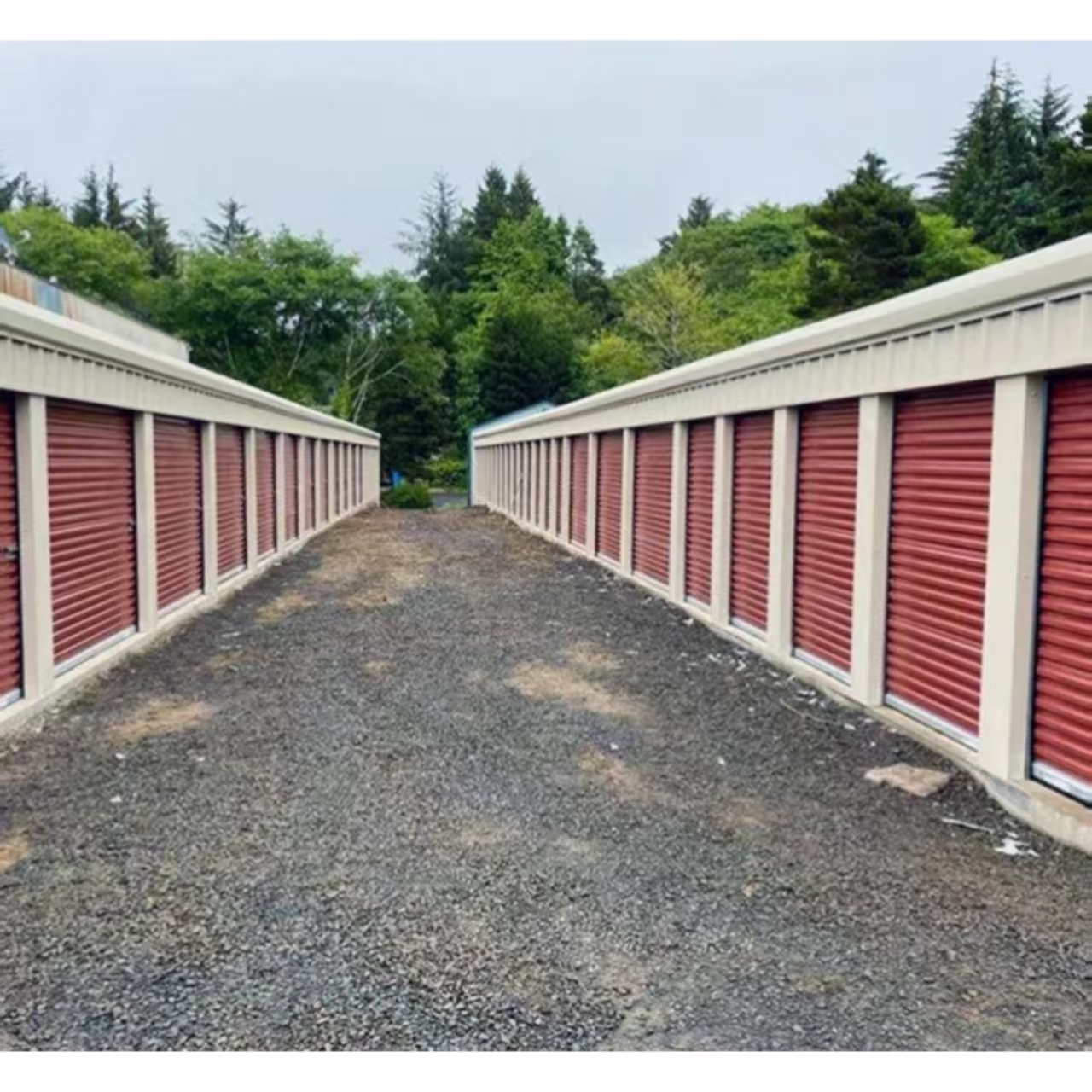

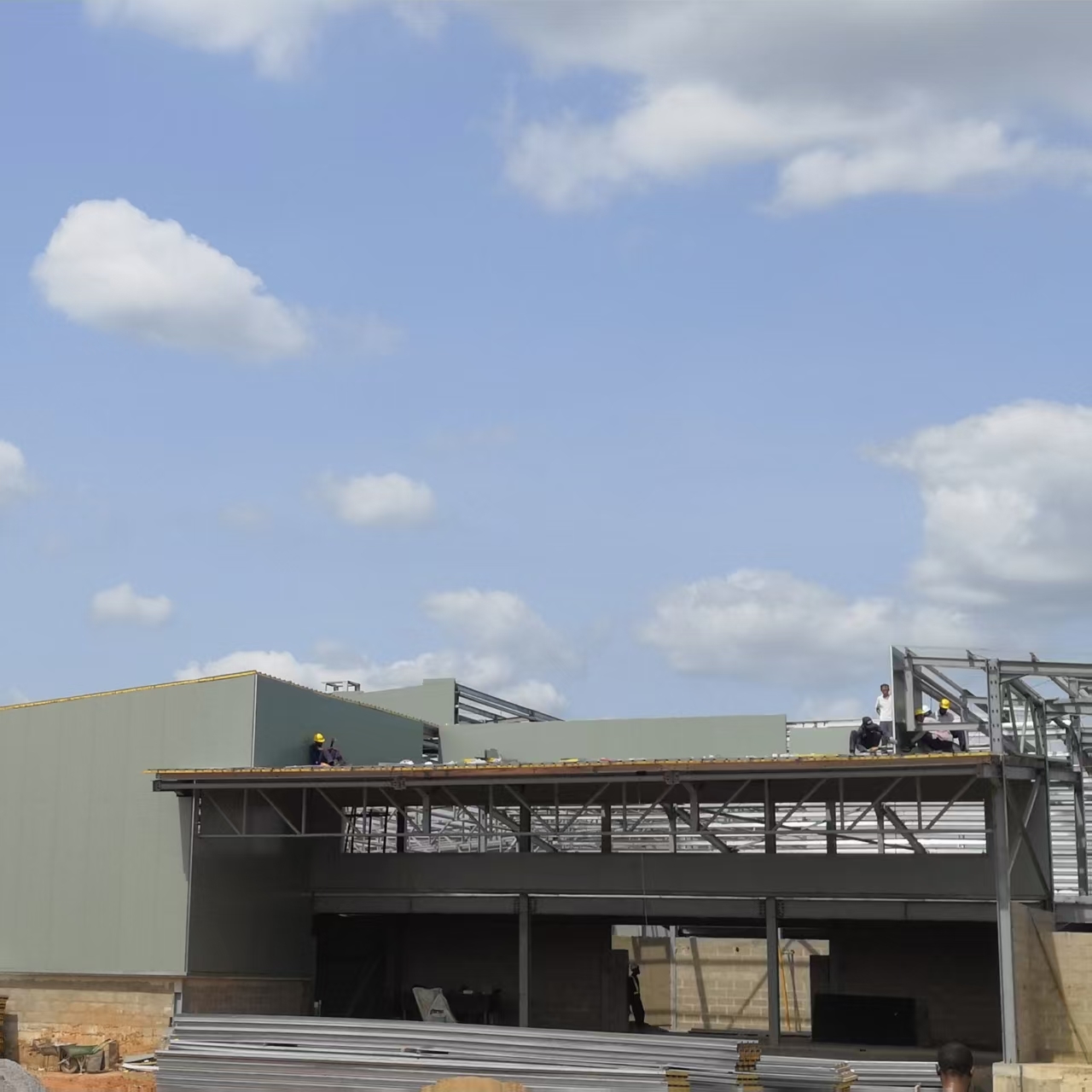

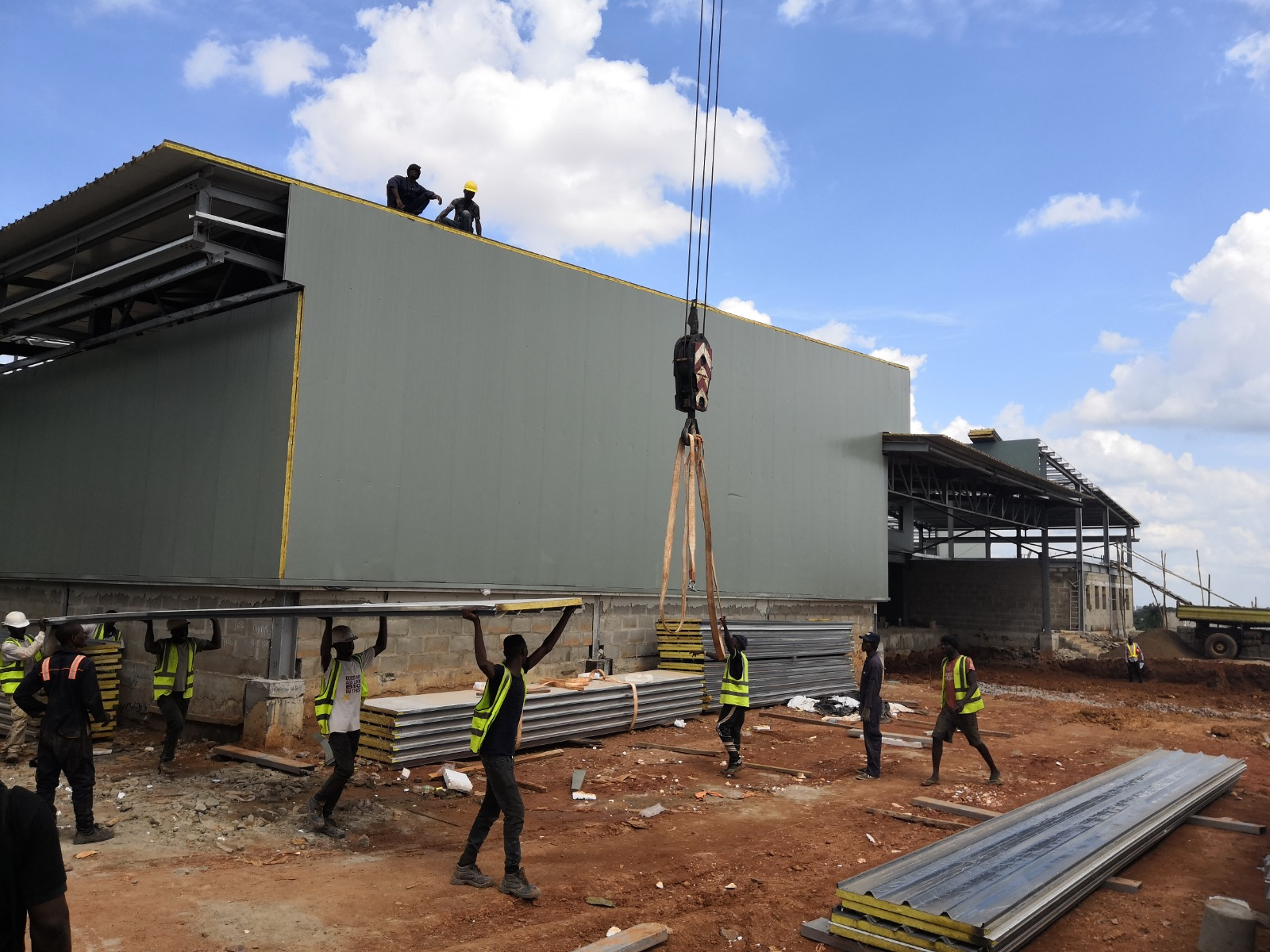

Product Gallery
Prefab Steel Structure Building with 50 Years Lifespan Quick Installation and Corrosion Resistant Portal Frame Prefab Steel Structure Building with 50 Years Lifespan Quick Installation and Corrosion Resistant Portal Frame Prefab Steel Structure Building with 50 Years Lifespan Quick Installation and Corrosion Resistant Portal Frame Prefab Steel Structure Building with 50 Years Lifespan Quick Installation and Corrosion Resistant Portal Frame
