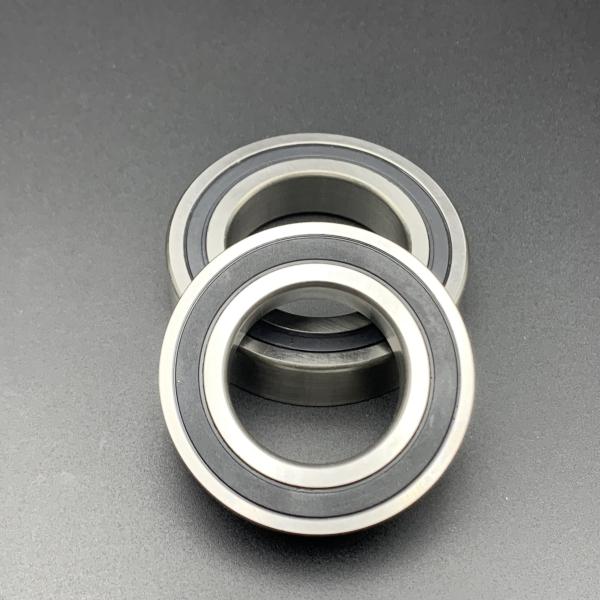

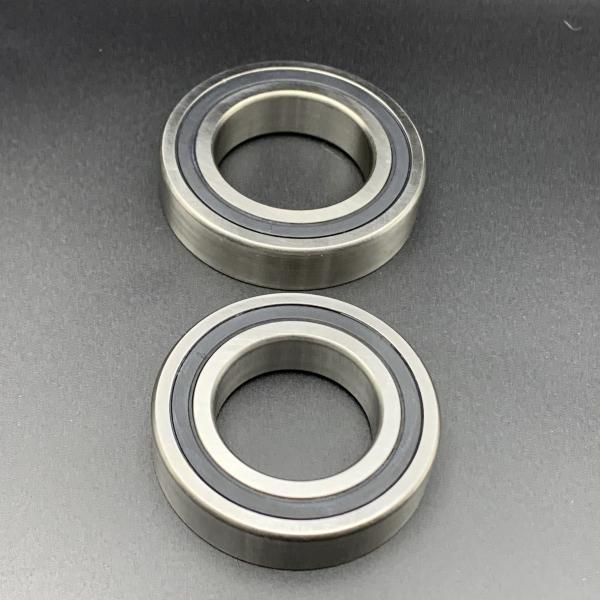

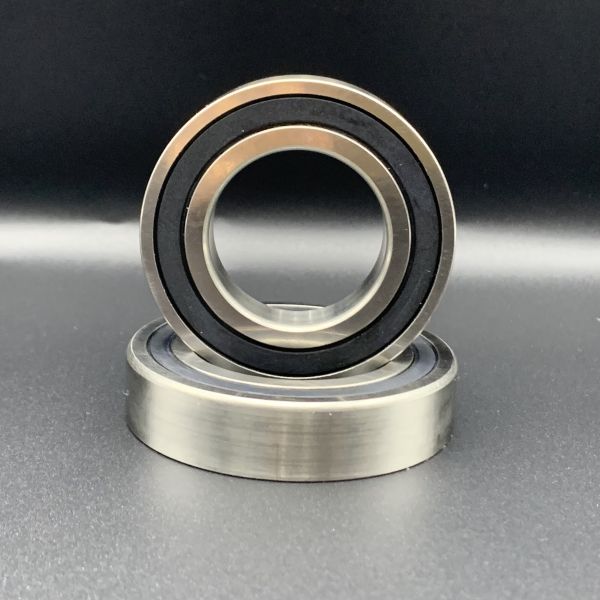

High Speed P4A Precision Angular Contact Ball Bearing 35x62x14mm for CNC Spindle Applications
High Speed P4A Precision Angular Contact Ball Bearing 35x62x14mm for CNC Spindle Applications
High Speed P4A Precision Angular Contact Ball Bearing 35x62x14mm for CNC Spindle Applications
High Speed P4A Precision Angular Contact Ball Bearing 35x62x14mm for CNC Spindle Applications
High Speed P4A Precision Angular Contact Ball Bearing 35x62x14mm for CNC Spindle Applications
High Speed P4A Precision Angular Contact Ball Bearing 35x62x14mm for CNC Spindle Applications
High Speed P4A Precision Angular Contact Ball Bearing 35x62x14mm for CNC Spindle Applications
High Speed P4A Precision Angular Contact Ball Bearing 35x62x14mm for CNC Spindle Applications
Specifications
Brand Name :
OEM
Model Number :
H7007C-2RZ P4A Precision Angular Contact Ball Bearing
Certification :
IATF16949:2016
Place of Origin :
China
MOQ :
100
Price :
Please contact us
Supply Ability :
100000pcs per month
Packaging Details :
plastic bag,box,carton,pallet
Tolerance Class :
P4A
Contact Angle :
15°
Seals Type :
Sealed 2RZ
Part Number :
CNC Spindle Bearings
Lubrication :
Grease
Type :
Angular Contact Ball Bearing
Preload :
light
Matched Arrangement :
2 Bearings
Delivery Time :
30 days
Description
H7007C-2RZ P4A Precision Angular Contact Ball Bearing Speed Spindle Bearings CNC
Design Features of the H7007C-2RZ P4A Precision Angular Contact Bearing

The H7007C-2RZ P4A Precision Angular Contact Ball Bearing is a prime example of advanced materials science, mechanical engineering, and precision manufacturing. Designed specifically for high-speed spindles and precision instruments where accuracy and speed are critical, this bearing delivers exceptional performance.

Bearing Number Dimensions(mm) Basic Load Rating(N) Limiting Speed(rpm) Weight(Kg)
Inner Diameter Outer Diameter Width Chamfer Dynamic Static Grease Oil
d D B rsmin r1smin Cr Cor Non-contact Non-contact reference
H7007C-2RZ 35 62 14 1 0.6 9200 7800 28000 / 0.18
Ring Material Steel
Roller Material Steel,Ceramic available
Cage Material Bakelite Phenolic
Contact Angle 15°,25° & 40° available
Lubrication Required
Matched Arrangement Available
Preload Available
Number Of Bearings In Matched Set 2
Universal Matching Bearing Yes,DB,DF,DT(Back to Back,Face to Face,Tandem)
Temperature Range -30°C ~ +110°C
ABEC Rating P4 (ABEC7)P5,P2 available
CERTIFICATE RoHS, IATF16949:2016
For Load Direction Angular Contact
Service OEM&ODM Customized Services
Samples Please Contact Us
Service Online Support,Professional Service
Size Standard,For custom sizes ,please contact us
Factory Manufacturer Yes

High Speed P4A Precision Angular Contact Ball Bearing 35x62x14mm for CNC Spindle Applications

High Speed P4A Precision Angular Contact Ball Bearing 35x62x14mm for CNC Spindle Applications

H7007C-2RZ P4A Super Precision Angular Contact Ball Bearing Key Design Features:
  • Dimensions: Bore Diameter: 35 mm
  • Outer Diameter: 62 mm
  • Width: 14 mm
  • Material Quality: Crafted from high-quality materials to ensure durability and reliability under demanding conditions.
  • Precision Manufacturing: Manufactured to extremely tight tolerances, ensuring superior dimensional and geometric accuracy.
  • High-Speed Capability: Optimized for high-speed operation with minimal heat generation and friction, making it ideal for applications requiring rapid rotation.
  • Load Capacity: Capable of handling both radial and axial loads efficiently, thanks to its angular contact design.
  • Preload Options: Available with various preload options to enhance stiffness and reduce play, improving overall system precision.
  • Surface Finish: Superior surface finish on raceways and rolling elements reduces noise and extends service life.
  • This bearing is an essential component in industries that demand high precision and performance, such as machine tool spindles, high-speed machinery, aerospace components, medical equipment, semiconductor manufacturing, automotive industry, and scientific instruments.
