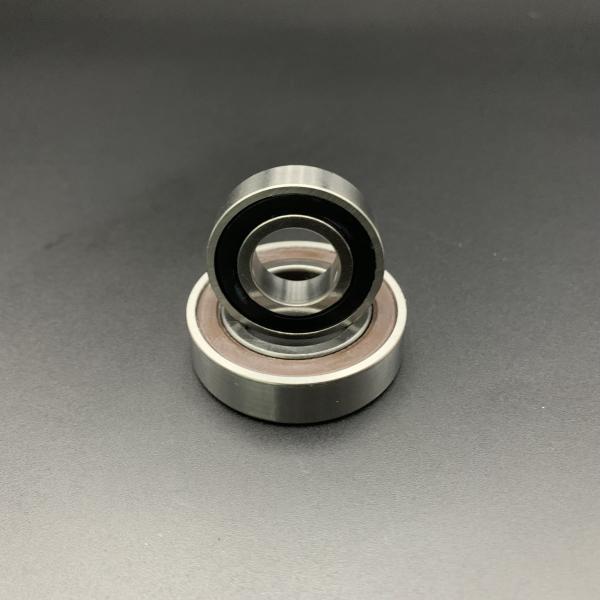

7003C-2RZ P4 Precision Angular Contact Ball Bearing 17x35x10mm with Light Preload for High-Speed Applications
7003C-2RZ P4 Precision Angular Contact Ball Bearing 17x35x10mm with Light Preload for High-Speed Applications
7003C-2RZ P4 Precision Angular Contact Ball Bearing 17x35x10mm with Light Preload for High-Speed Applications
7003C-2RZ P4 Precision Angular Contact Ball Bearing 17x35x10mm with Light Preload for High-Speed Applications
7003C-2RZ P4 Precision Angular Contact Ball Bearing 17x35x10mm with Light Preload for High-Speed Applications
7003C-2RZ P4 Precision Angular Contact Ball Bearing 17x35x10mm with Light Preload for High-Speed Applications
7003C-2RZ P4 Precision Angular Contact Ball Bearing 17x35x10mm with Light Preload for High-Speed Applications
7003C-2RZ P4 Precision Angular Contact Ball Bearing 17x35x10mm with Light Preload for High-Speed Applications
Specifications
Seals Color :
Black and Red
Interchangeable With :
SKF
Lubrication :
Grease
Sealed Type :
2RZ
Brand Name :
OEM
Model Number :
7003C-2RZ P4 Precision Angular Contact Ball Bearing
Certification :
IATF16949:2016
Place of Origin :
China
MOQ :
100
Price :
Please contact us
Supply Ability :
500000pcs per month
Delivery Time :
30 days
Packaging Details :
plastic bag,box,carton,pallet
Part Number :
7003C-2RZ P4 Precision Angular Contact Ball Bearing
Preload :
Light Preload
Tolerance :
P4 (ABEC-7)
Contact Angle :
C/15°
Description
7003C-2RZ P4 Precision Angular Contact Ball Bearing 17x35x10mm For Carving Machines
Product Overview

The 7003C-2RZ P4 Precision Angular Contact Ball Bearing is engineered for applications demanding both speed and accuracy, such as high-speed spindles in carving machines. Built with premium materials and advanced manufacturing techniques, this bearing delivers outstanding performance, reliability, and consistent precision even under challenging operating conditions.

Technical Specifications
Bearing Number Dimensions (mm) Basic Load Rating (N) Limiting Speed (rpm) Weight (Kg)
7003C-2RZ 17×35×10 3800 / 2500 53000 0.04
Construction Details
Ring Material: Imported Premium-Grade Bearing Steel (803 Q, Sweden)
Roller Material: Imported Japanese AKS Steel Balls, Grade G2, or Imported Saint-Gobain Ceramic Balls, Grade G2
Cage Material: Bakelite Phenolic
Contact Angle: 15°, 25° & 40° available
Lubrication: Required Grease
Temperature Range: -30°C to +110°C
ABEC Rating Precision: P4 (ABEC7) P5, P2 available
Certifications: RoHS, IATF16949:2016
Key Design Features
  • Dimensions: Bore Diameter: 17 mm, Outer Diameter: 35 mm, Width: 10 mm
  • Material Quality: Crafted from high-quality materials for durability and reliability under demanding conditions
  • Precision Manufacturing: Manufactured to extremely tight tolerances for superior dimensional and geometric accuracy
  • High-Speed Capability: Optimized for high-speed operation with minimal heat generation and friction
  • Load Capacity: Efficiently handles both radial and axial loads with angular contact design
  • Preload Options: Available with various preload options to enhance stiffness and reduce play
  • Surface Finish: Superior surface finish on raceways and rolling elements reduces noise and extends service life
Additional Information
Matched Arrangement: Available
Preload: Available
Number in Matched Set: 2 pcs/set
Universal Matching: Yes, DB, DF, DT (Back to Back, Face to Face, Tandem)
For Load Direction: Angular Contact
Service: OEM & ODM Customized Services
Samples: Please Contact Us
Support: Online Support, Professional Service
Size Options: Standard, Custom sizes available
Manufacturer: Factory Manufacturer
Applications

This bearing is essential for industries demanding high precision and performance, including machine tool spindles, high-speed machinery, aerospace components, medical equipment, semiconductor manufacturing, automotive industry, and scientific instruments.
