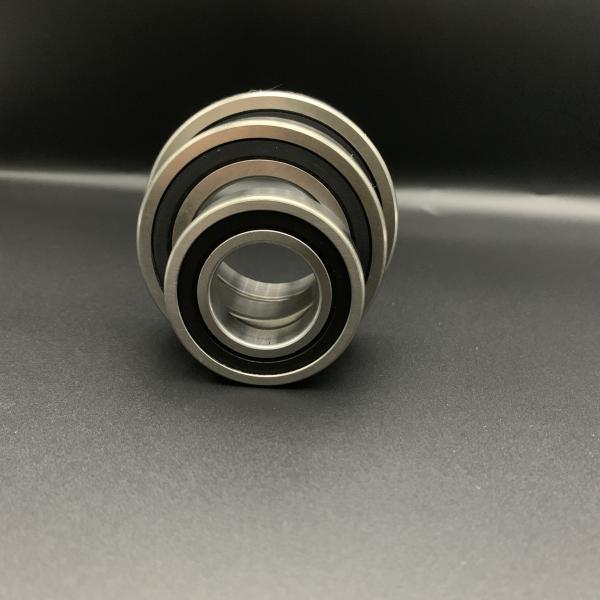

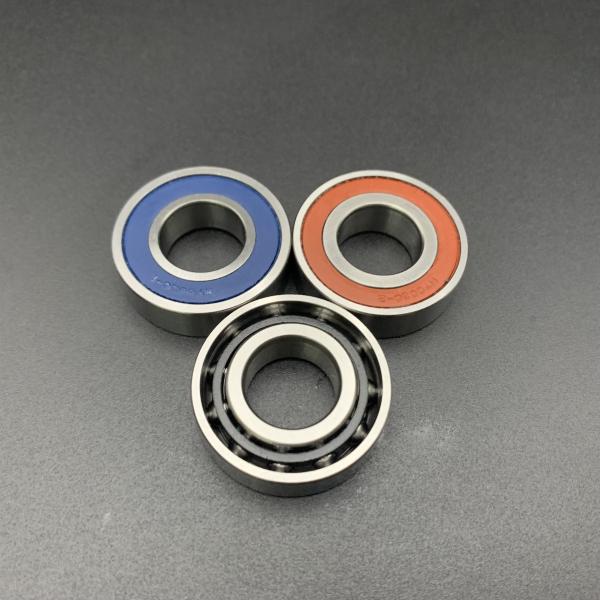

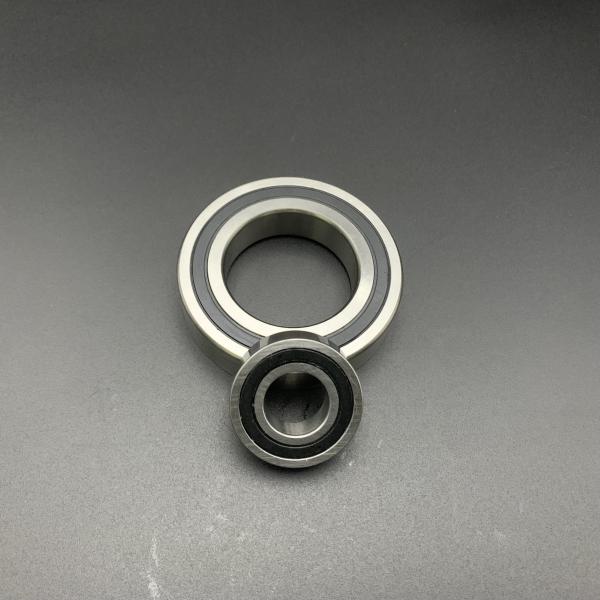

H7005C-2RZ P4A Precision Angular Contact Ball Bearing 25x47x12mm for High-Speed CNC Spindles
H7005C-2RZ P4A Precision Angular Contact Ball Bearing 25x47x12mm for High-Speed CNC Spindles
H7005C-2RZ P4A Precision Angular Contact Ball Bearing 25x47x12mm for High-Speed CNC Spindles
H7005C-2RZ P4A Precision Angular Contact Ball Bearing 25x47x12mm for High-Speed CNC Spindles
H7005C-2RZ P4A Precision Angular Contact Ball Bearing 25x47x12mm for High-Speed CNC Spindles
H7005C-2RZ P4A Precision Angular Contact Ball Bearing 25x47x12mm for High-Speed CNC Spindles
H7005C-2RZ P4A Precision Angular Contact Ball Bearing 25x47x12mm for High-Speed CNC Spindles
H7005C-2RZ P4A Precision Angular Contact Ball Bearing 25x47x12mm for High-Speed CNC Spindles
Specifications
Tolerance Class :
P4A
Part Number :
H7005C-2RZ P4A Precision Angular Contact Ball Bearing
Lubrication :
Grease as Agreement
Interchangeable With :
SKF
Matched Arrangement :
2 Bearings/pair
Type :
Angular Contact Ball Bearing
Preload :
light
Seals Color :
Black and Brown
Contact Angle :
C/15°
Logo :
As per customers' requirements
Brand Name :
OEM
Model Number :
7005C-2RZ P4A Precision Angular Contact Ball Bearing
Certification :
IATF16949:2016
Place of Origin :
China
MOQ :
100
Price :
Please contact us
Supply Ability :
200000pcs per month
Packaging Details :
plastic bag,box,carton,pallet
Delivery Time :
30 days
Description
H7005C-2RZ P4A CNC Spindle Bearing Replacement Super Precision Angular Contact Ball Bearing
H7005C-2RZ P4A Super Precision Angular Contact Ball Bearing Speed Spindle CNC Tool
Design Features
The H7005C-2RZ P4A Precision Angular Contact Ball Bearing uses high-quality materials and precise manufacturing techniques. Built for high-speed spindles and precision instruments, it ensures accurate and fast operation. This bearing provides excellent performance and reliability in critical applications.
Bearing Number Dimensions(mm) Basic Load Rating(N) Limiting Speed(rpm) Weight(Kg)
H7005C-2RZ 25 × 47 × 12 6200 (Dynamic)
4600 (Static)		 38000 (Grease) 0.09
Technical Specifications
Ring Material Steel
Roller Material Steel Ball, Ceramic Ball available
Cage Material Bakelite Phenolic
Contact Angle 15°, 25° & 40° available
Lubrication Required Grease
Matched Arrangement Available 2 pcs/pair or as arrangement
Preload Available Light
Number Of Bearings In Matched Set 2
Universal Matching Bearing Yes, DB, DF, DT (Back to Back, Face to Face, Tandem)
Temperature Range -30°C ~ +110°C
Precision ABEC Rating P4 (ABEC7) P5, P2 available
CERTIFICATE RoHS, IATF16949:2016
For Load Direction Angular Contact
Key Design Features
  • Dimensions: Bore Diameter: 25 mm, Outer Diameter: 47 mm, Width: 12 mm
  • Material Quality: Crafted from high-quality materials to ensure durability and reliability under demanding conditions
  • Precision Manufacturing: Manufactured to extremely tight tolerances, ensuring superior dimensional and geometric accuracy
  • High-Speed Capability: Optimized for high-speed operation with minimal heat generation and friction
  • Load Capacity: Capable of handling both radial and axial loads efficiently
  • Preload Options: Available with various preload options to enhance stiffness and reduce play
  • Surface Finish: Superior surface finish on raceways and rolling elements reduces noise and extends service life
Applications
This bearing is an essential component in industries that demand high precision and performance, including machine tool spindles, high-speed machinery, aerospace components, medical equipment, semiconductor manufacturing, automotive industry, and scientific instruments.
Additional Services
Service OEM & ODM Customized Services
Samples Please Contact Us for Details
Service Online Support, Professional Service
Size Standard, For custom sizes, please contact us
Factory Manufacturer Yes
