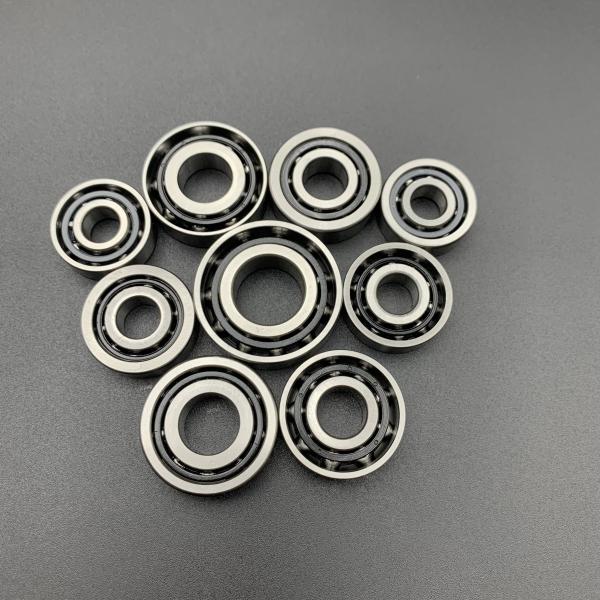

7007C-2RZ P4 Precision Angular Contact Ball Bearing 35x62x14mm Sealed 2RZ for High-Speed Spindles
7007C-2RZ P4 Precision Angular Contact Ball Bearing 35x62x14mm Sealed 2RZ for High-Speed Spindles
7007C-2RZ P4 Precision Angular Contact Ball Bearing 35x62x14mm Sealed 2RZ for High-Speed Spindles
7007C-2RZ P4 Precision Angular Contact Ball Bearing 35x62x14mm Sealed 2RZ for High-Speed Spindles
7007C-2RZ P4 Precision Angular Contact Ball Bearing 35x62x14mm Sealed 2RZ for High-Speed Spindles
7007C-2RZ P4 Precision Angular Contact Ball Bearing 35x62x14mm Sealed 2RZ for High-Speed Spindles
7007C-2RZ P4 Precision Angular Contact Ball Bearing 35x62x14mm Sealed 2RZ for High-Speed Spindles
7007C-2RZ P4 Precision Angular Contact Ball Bearing 35x62x14mm Sealed 2RZ for High-Speed Spindles
Specifications
Brand Name :
OEM
Model Number :
7007C-2RZ Precision Angular Contact Ball Bearing
Certification :
IATF16949:2016
Place of Origin :
China
MOQ :
100
Price :
Please contact us
Supply Ability :
200000pcs per month
Delivery Time :
30 days
Packaging Details :
plastic bag,box,carton,pallet
Interchangeable With :
SKF
Tolerance Class :
P4
Sealed Type :
2RZ
Seals Color :
Red and Black
Contact Angle :
15°/C angle
Preload :
Light
Lubrication :
Grease
Part Number :
7007C-2RZ Precision Machine Tool Bearings
Description
7007C-2RZ Precision Machine Tool Bearings, Angular Contact Ball Bearing 35x62x14
7007C-2RZ Precision Angular Contact Ball Bearings 35x62x14mm Sealed Spindle Tools
Design Features of the 7007C-2RZ Precision Angular Contact Bearing
The 7007C-2RZ Precision Angular Contact Ball Bearing is crafted from superior materials and manufactured to exacting standards. It's perfectly suited for high-speed spindles and precision instruments where accuracy and rapid operation are essential. This bearing delivers outstanding performance and maintains reliability even under challenging conditions.
Bearing Number Dimensions(mm) Basic Load Rating(N) Limiting Speed(rpm) Weight(Kg)
7007C-2RZ 35x62x14 Cr: 18500
Cor: 13500		 Grease: 8500 0.15
Ring Material: Steel
Roller Material: Steel Ball, Ceramic available
Cage Material: Bakelite Phenolic
Contact Angle: 15°, 25° & 40° available
Lubrication: Required Grease
Matched Arrangement: Available
Preload: Available
Number Of Bearings In Matched Set: 2 pcs/set
Universal Matching Bearing: Yes, DB, DF, DT
Temperature Range: -30°C ~ +110°C
ABEC Rating Precision: P4 (ABEC7) P5, P2 available
CERTIFICATE: RoHS, IATF16949:2016
For Load Direction: Angular Contact
Service: OEM&ODM Customized Services
Samples: Please Contact Us
Size: Standard, custom sizes available
Factory Manufacturer: Yes
7007C-2RZ P4 Precision Angular Contact Ball Bearing 35x62x14mm Sealed 2RZ for High-Speed Spindles 7007C-2RZ P4 Precision Angular Contact Ball Bearing 35x62x14mm Sealed 2RZ for High-Speed Spindles
7007C-2RZ Precision Angular Contact Ball Bearing Key Design Features
Bore Diameter: 35 mm
Outer Diameter: 62 mm
Width: 14 mm
Material Quality: High-quality materials for durability
Precision Manufacturing: Extremely tight tolerances
High-Speed Capability: Optimized for rapid rotation
Load Capacity: Handles radial and axial loads
Preload Options: Various options available
Surface Finish: Superior finish reduces noise
This bearing is an essential component in industries that demand high precision and performance, such as machine tool spindles, high-speed machinery, aerospace components, medical equipment, semiconductor manufacturing, automotive industry, and scientific instruments.
Applications of 7007C-2RZ Precision Angular Contact Ball Bearing
  • Aerospace: Aircraft Landing Gear, Gyroscopes - Equipment that requires high precision and reliability
  • Machine Tools: Spindles, Feed Systems - Components that demand high precision and stability
  • Industrial Automation: Robot Joints, Servo Motors - Transmission systems requiring high precision and reliability
  • Medical Equipment: High-Speed Dental Tools, Surgical Instruments, Imaging Devices - Applications with stringent requirements for cleanliness and reliability
  • Precision Instruments: Measuring Instruments, Laboratory Equipment - Occasions where precision is strictly required
  • Semiconductor Manufacturing Equipment: Wafer Handling Equipment - Devices that require high precision and operate in cleanroom environments
