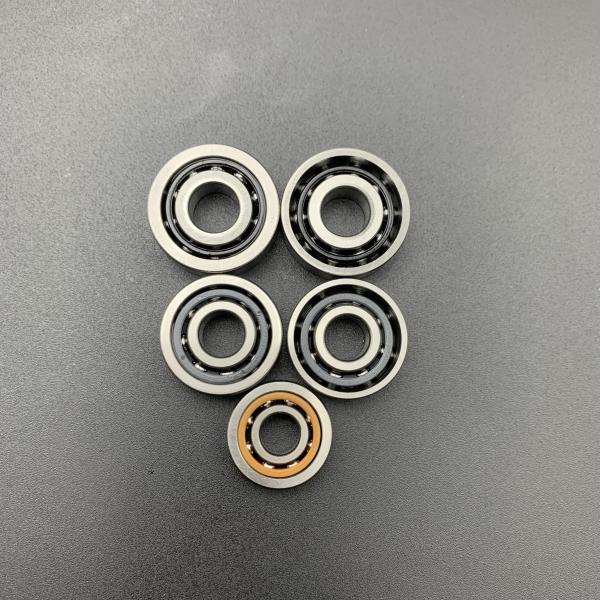

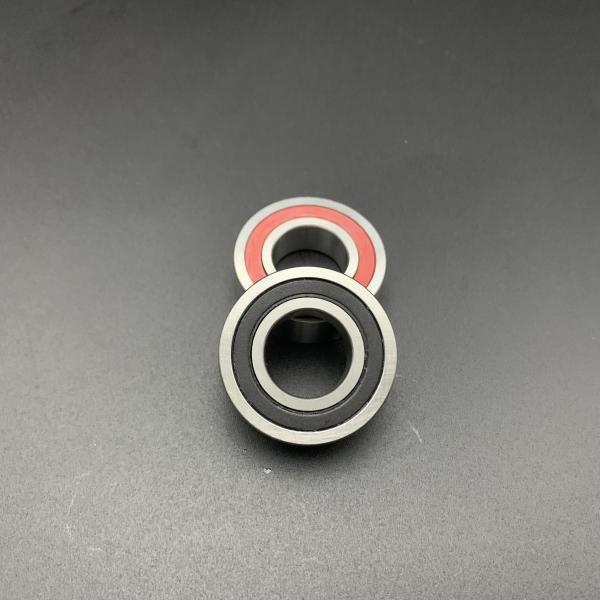

7001C-2RZ Spindle Bearing 12x28x8mm P4 Precision Sealed 2RZ for High-Speed Applications
7001C-2RZ Spindle Bearing 12x28x8mm P4 Precision Sealed 2RZ for High-Speed Applications
7001C-2RZ Spindle Bearing 12x28x8mm P4 Precision Sealed 2RZ for High-Speed Applications
7001C-2RZ Spindle Bearing 12x28x8mm P4 Precision Sealed 2RZ for High-Speed Applications
7001C-2RZ Spindle Bearing 12x28x8mm P4 Precision Sealed 2RZ for High-Speed Applications
7001C-2RZ Spindle Bearing 12x28x8mm P4 Precision Sealed 2RZ for High-Speed Applications
7001C-2RZ Spindle Bearing 12x28x8mm P4 Precision Sealed 2RZ for High-Speed Applications
7001C-2RZ Spindle Bearing 12x28x8mm P4 Precision Sealed 2RZ for High-Speed Applications
Specifications
Tolerance Class :
P4
Interchangeable With :
SKF
Contact Angle :
15°/C angle
Sealed Type :
2RZ
Brand Name :
OEM
Model Number :
7001C-2RZ Precision Angular Contact Ball Bearing
Certification :
IATF16949:2016
Place of Origin :
China
MOQ :
100
Price :
Please contact us
Supply Ability :
500000pcs per month
Delivery Time :
30 days
Packaging Details :
plastic bag,box,carton,pallet
Lubrication :
Grease
Preload :
Light
Part Number :
7001C-2RZ Precision Angular Contact Ball Bearings
Seals Color :
Red and Black
Description
7001C-2RZ Spindle Bearing 12x28x8 For Precision Instruments

7001C-2RZ Precision Angular Contact Ball Bearings 10x26x8mm Sealed Spindle Tools

Design Features

The 7001C-2RZ Precision Angular Contact Ball Bearing is crafted from superior materials and manufactured to exacting standards. It's perfectly suited for high-speed spindles and precision instruments where accuracy and rapid operation are essential. This bearing delivers outstanding performance and maintains reliability even under challenging conditions.

Bearing Number Dimensions (mm) Basic Load Rating (N) Limiting Speed (rpm) Weight (Kg)
7001C-2RZ 12x28x8 5200 (Dynamic)
2500 (Static)		 18000 (Grease) 0.02
Ring MaterialSteel
Roller MaterialSteel Ball, Ceramic available
Cage MaterialBakelite Phenolic
Contact Angle15°, 25° & 40° available
LubricationRequired Grease
Matched ArrangementAvailable
PreloadAvailable
Number Of Bearings In Matched Set2 pcs/set
Universal Matching BearingYes, DB, DF, DT (Back to Back, Face to Face, Tandem)
Temperature Range-30°C ~ +110°C
ABEC Rating PrecisionP4 (ABEC7) P5, P2 available
CERTIFICATERoHS, IATF16949:2016
For Load DirectionAngular Contact
ServiceOEM & ODM Customized Services
SamplesPlease Contact Us
SizeStandard, For custom sizes please contact us
Factory ManufacturerYes
7001C-2RZ Spindle Bearing 12x28x8mm P4 Precision Sealed 2RZ for High-Speed Applications 7001C-2RZ Spindle Bearing 12x28x8mm P4 Precision Sealed 2RZ for High-Speed Applications
Key Design Features
  • Dimensions: Bore Diameter: 12 mm, Outer Diameter: 28 mm, Width: 8 mm
  • Material Quality: Crafted from high-quality materials to ensure durability and reliability under demanding conditions
  • Precision Manufacturing: Manufactured to extremely tight tolerances, ensuring superior dimensional and geometric accuracy
  • High-Speed Capability: Optimized for high-speed operation with minimal heat generation and friction
  • Load Capacity: Capable of handling both radial and axial loads efficiently
  • Preload Options: Available with various preload options to enhance stiffness and reduce play
  • Surface Finish: Superior surface finish on raceways and rolling elements reduces noise and extends service life

This bearing is an essential component in industries that demand high precision and performance, including machine tool spindles, high-speed machinery, aerospace components, medical equipment, semiconductor manufacturing, automotive industry, and scientific instruments.

Applications
  • Aerospace: Aircraft Landing Gear, Gyroscopes - equipment requiring high precision and reliability
  • Machine Tools: Spindles, Feed Systems - components demanding high precision and stability
  • Industrial Automation: Robot Joints, Servo Motors - transmission systems requiring high precision and reliability
  • Medical Equipment: High-Speed Dental Tools, Surgical Instruments, Imaging Devices - applications with stringent cleanliness and reliability requirements
  • Automotive Components: Generators, Air Conditioning Compressors, Steering Systems - rotating parts of vehicle auxiliary systems
  • Precision Instruments: Measuring Instruments, Laboratory Equipment - occasions where precision is strictly required
  • Semiconductor Manufacturing Equipment: Wafer Handling Equipment - devices requiring high precision and operating in cleanroom environments
