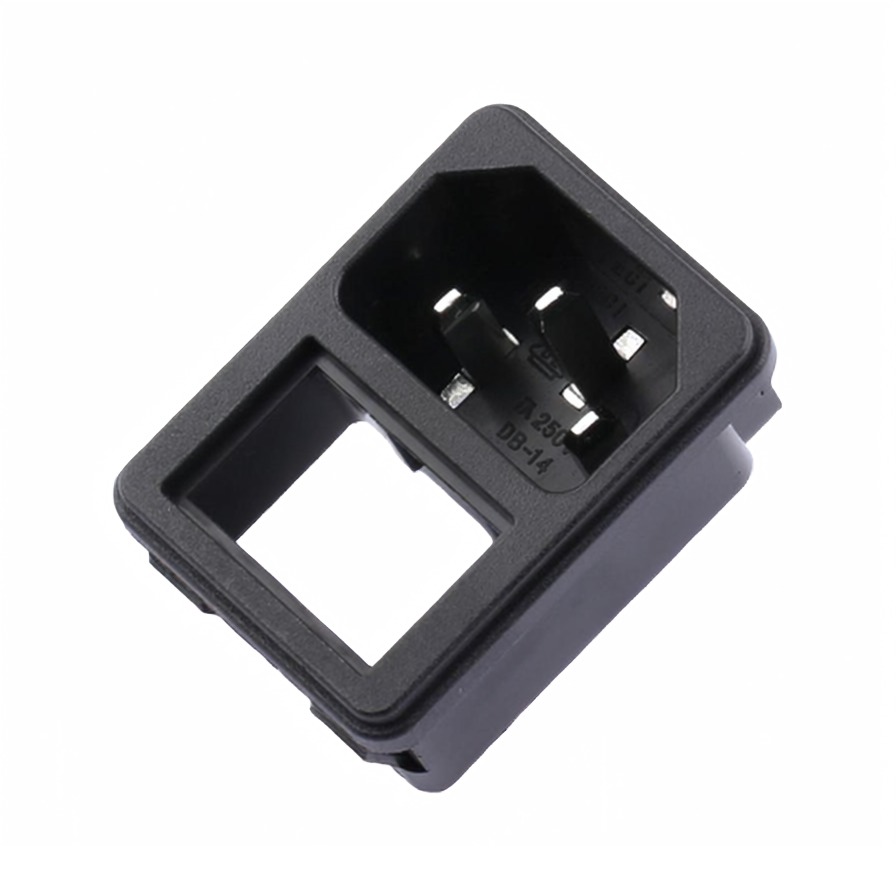

HCTL DB-14-2F+RS
HCTL DB-14-2F+RS
Specifications
Packaging Details :
Through Hole
Brand Name :
DB-14-2F+RS
Mounting Type :
Panel Mount
Standard :
IEC 320-C14
Rated voltage :
250V
Delivery Time :
1 working day
Description :
Through Hole Plugs and Receptacles RoHS
Rated current :
15A
Model Number :
DB-14-2F+RS
MOQ :
1
Stock :
200
Number of Ports :
1
PIN Number Per Port :
3
Description

Product Overview

This product is designed for electrical applications, offering reliable performance and durability. It is suitable for various usage scenarios requiring a robust connection and safety features.

Operating Life

5000 cycles

Material

NYILON 66 94V-2~0

Technical Specifications

RatingVoltage (AC)Current (A)Temperature Rating (C)CertificationsFuse Rating (VAC)Fuse Current (A)Fuse Power (W)Insertion Force (kgf)Extraction Force (kgf)Terminal Strength (N)Withstand Voltage (Terminals to Terminals) (VAC)Withstand Voltage (Terminals to Base) (VAC)Leakage Current (mA)Insulation Resistance (M)Test Voltage (DC)
15A 250V AC25015105UL, cUL25003750
10A 250V AC25010VDE, 3C, KC2506.32.51.366.8802500375013 100500
