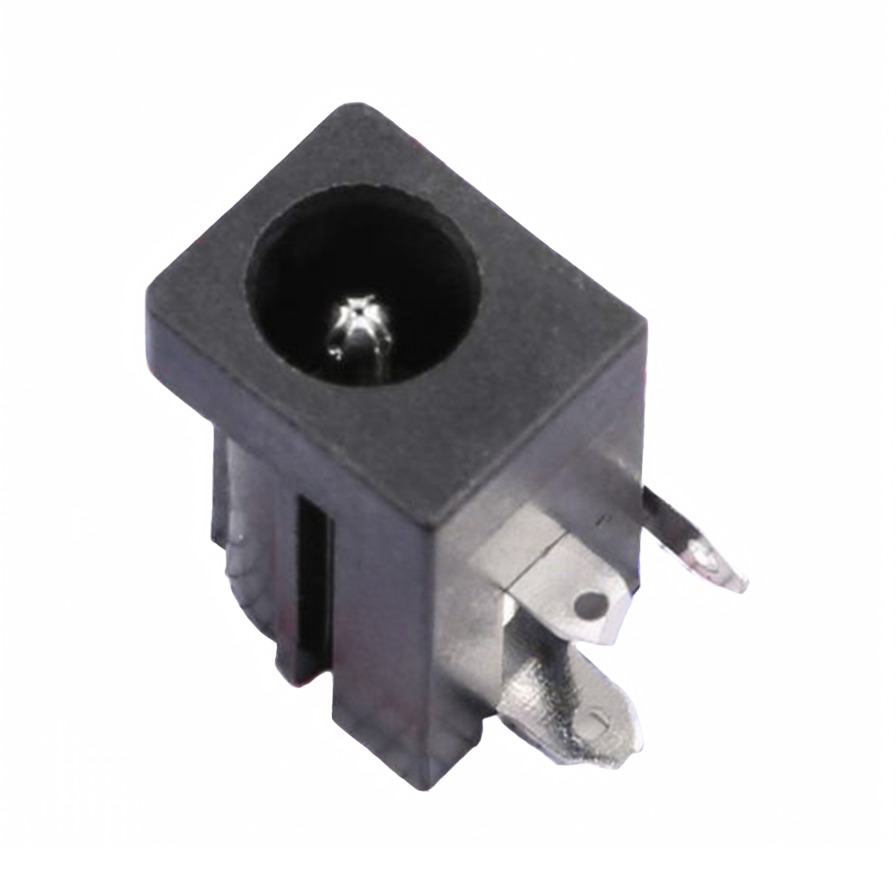

G-Switch DC-005H-D020
G-Switch DC-005H-D020
Specifications
Rated current :
7A
Delivery Time :
1 working day
Packaging Details :
Through Hole
Stock :
1136
MOQ :
1
Description :
Power Barrel Connector Jack 2mm ID 5.8mm OD Through Hole, Right Angle
Mounting Type :
Right Angle
working temperature :
-40℃~+85℃
Rated voltage :
35V
Model Number :
DC-005H-D020
Connector Type :
DC Power Jack
Inside Contact Diameter :
2mm
Brand Name :
DC-005H-D020
Outside Contact Diameter :
5.8mm
Description

DC Power Jack

Model: DC-005H-D020

A DC power jack for various electronic applications.

Product Name

DC Power Jack

Brand

G-Switch

Part Number

DC-005H-D020

Needle Diameter

2.0mm (D020)

Housing Material

PA/PBT BLACK

Center Pin Material

BRASS Sn80UT/Ni 40u

Contact Spring Material

COPPER ALLOY Sn80UT/Ni 40u

Certifications

RoHS Compliant

SpecificationValueUnit
Operating Temperature Range-40 to +85C
Rating7.0A, 35VDC
Insulation Resistance100M min. (100V DC)
Dielectric Strength500V AC for 1 min
Contact Resistance30m max.
Life Expectancy5,000Cycles
