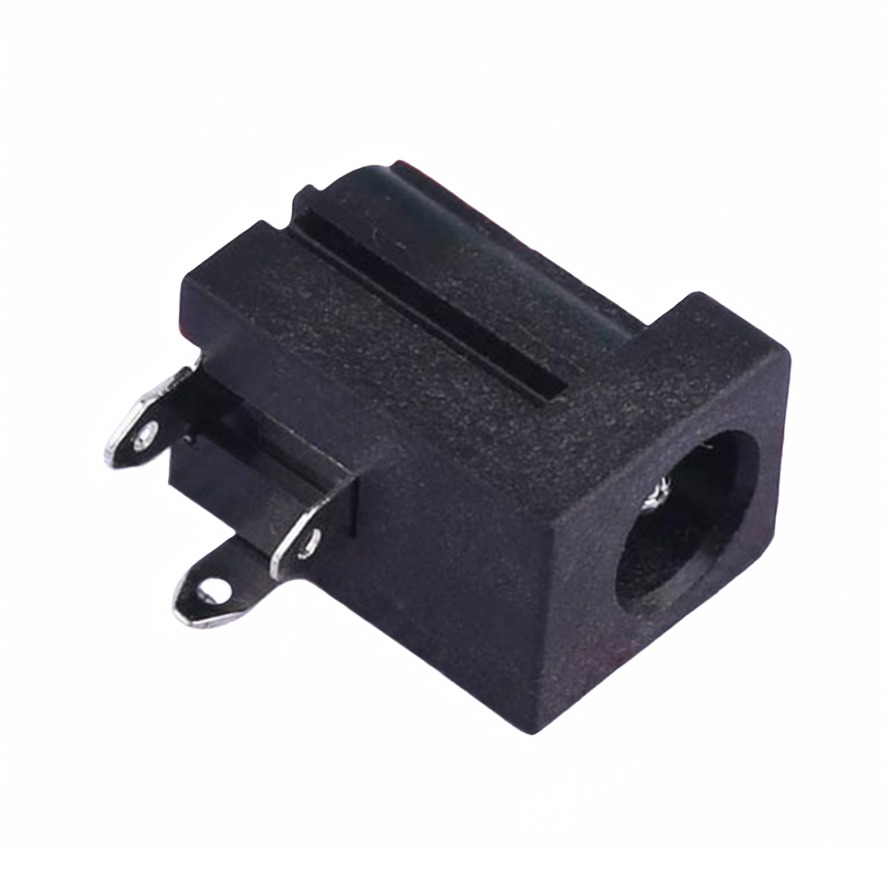

G-Switch DC-005H-D025
G-Switch DC-005H-D025
Specifications
Stock :
592
Rated voltage :
35V
MOQ :
1
Brand Name :
DC-005H-D025
Packaging Details :
Through Hole
Connector Type :
DC Power Jack
Rated current :
7A
Inside Contact Diameter :
2.5mm
working temperature :
-40℃~+85℃
Outside Contact Diameter :
5.8mm
Description :
Power Barrel Connector Jack 2.5mm ID 5.8mm OD Through Hole, Right Angle
Delivery Time :
1 working day
Model Number :
DC-005H-D025
Mounting Type :
Right Angle
Description

DC Power Jack

Model: DC-005H-D025

A reliable DC power jack designed for various electronic applications. Features a needle diameter of 2.5mm.

Brand

G-Switch

Part Number

DC-005H-D025

Needle Diameter

2.5mm

Housing Material

PAIOTAL BLACK

Centerpin Material

BRASS SnBOU/Ni 40u

Spring Material

COPPER ALLOY SnBOU/NI 40u

Certifications

RoHS Compliant

SpecificationValueUnit
Operating Temperature Range-40 to +85C
Rating7.0A, 35VDC
Insulation Resistance100M min. (100V DC)
Dielectric Strength500V AC (for 1 min)
Contact Resistance30m max.
Life5,000Cycles
