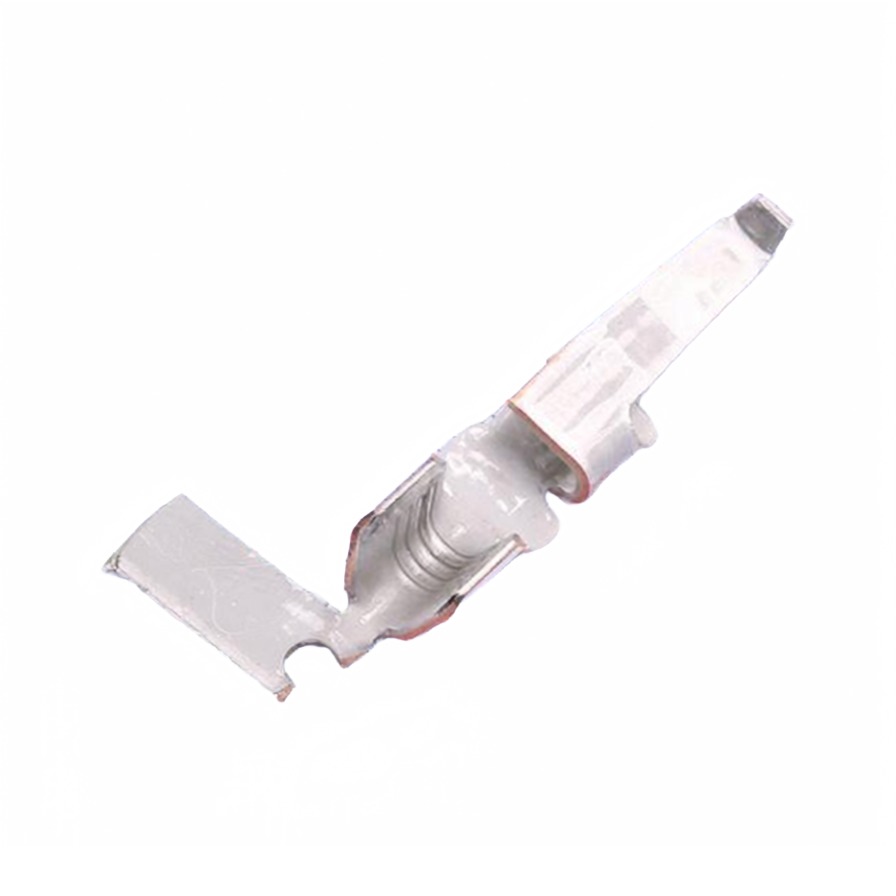

TE Connectivity 556880-2
TE Connectivity 556880-2
Specifications
MOQ :
1
Stock :
888
Contact Plating :
Tin
Model Number :
556880-2
Rated Voltage (Max) :
600V
Brand Name :
TE Connectivity
Delivery Time :
1 working day
Packaging Details :
-
Description :
Connector Terminal Tin Crimp
Contact Material :
Copper alloy
Description

Product Overview

The 556880-2 is a Receptacle Contact designed for discrete wire applications. It features a Tin plating for both termination and mating areas, a locking lance contact retention mechanism, and a dual beam contact shape. This contact is suitable for power circuit applications and is rated for 600 VAC and 600 VDC with a maximum current rating of 30 A. It is compatible with wire sizes from 12 to 10 AWG (3.31 5.26 mm).

Product Attributes

  • Brand: TE Connectivity (implied by TE Part # and TE.com references)
  • Contact Type: Receptacle
  • Contact Retention Type: Locking Lance
  • Wire Contact Termination Area Plating Material: Tin
  • Contact Mating Area Plating Material: Tin
  • Base Material: Copper Alloy
  • Industry Standards: UL recognized
  • Flammability Rating: UL 94V-0
  • RoHS Compliance: EU RoHS Directive 2011/65/EU Compliant, EU ELV Directive 2000/53/EC Compliant, China RoHS Directive MIIT Order No 32, 2016, Low Halogen

Technical Specifications

Part NumberDescriptionOperating VoltageWire Size (AWG)Wire Size (mm)Current Rating (Max)Operating Temperature RangeTermination Method to Wire & CableContact Retention Within Housing
556880-2Receptacle Contact, Tin, Locking Lance Contact Retention, Discrete Wire600 VAC, 600 VDC12 103.31 5.2630 A0 105 C [32 221 F]CrimpLocking Lance
