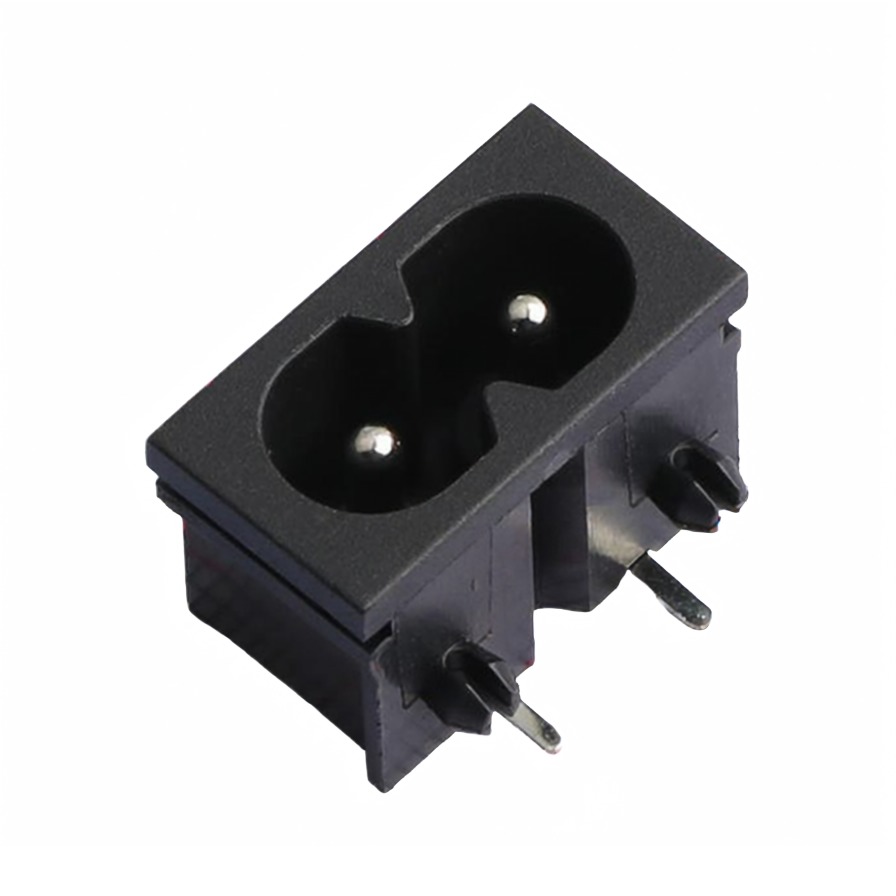

Legion RT-C08-F2-BH
Legion RT-C08-F2-BH
Specifications
Mounting Type :
Right Angle
Standard :
IEC 320-C8
Rated voltage :
125V
MOQ :
5
Description :
Through Hole,Right Angle Plugs and Receptacles RoHS
Number of Ports :
1
Rated current :
7A
Delivery Time :
1 working day
Packaging Details :
Through Hole,Right Angle
Model Number :
RT-C08-F2-BH
Brand Name :
Legion
PIN Number Per Port :
2
Stock :
200
Description

Product Overview

The RT-C08 series is a component designed for electrical applications, rated for 2.5A at 250VAC and 7A at 125VAC. It features robust construction with tin-plating and nickel-plating for its contacts, ensuring reliable conductivity. The component is designed for PCB mounting and is available in various colors, including black, white, and green, meeting UL94V-0 flammability standards.

Brand

ROCKTEK

Model Identifier

RT-C08

Part Number Prefix

RT-C08-F2-

Material (Body)

PA66 UL94V-0

Material (Contacts)

C2680 (1/2H Tin-plating 3~5m) & C3602 (Ni-plating 3~5m)

Certifications

CCC, VDE, UL, CUL

Color Options

Black (BH), White (WH), Green (GH)

Manufacturing Date

2017.06.14

Revision Note

Modified UL safety marking

Contact Resistance

50m Max

Insulation Resistance

>100M Min (500VDC)

Dielectric Strength

>2000VAC (0.5mA, 1 minute)

Technical Specifications

Product CodeColorRating (AC)Contact MaterialPlatingTerminal TypeBody MaterialCertifications
RT-C08-F2-BHBlack2.5A 250V~ / 7A 125V~C2680 / C3602Tin-plating 3~5m / Ni-plating 3~5mPIN terminalPA66 UL94V-0CCC, VDE, UL, CUL
RT-C08-F2-WHWhite2.5A 250V~ / 7A 125V~C2680 / C3602Tin-plating 3~5m / Ni-plating 3~5mPIN terminalPA66 UL94V-0CCC, VDE, UL, CUL
RT-C08-F2-GHGreen2.5A 250V~ / 7A 125V~C2680 / C3602Tin-plating 3~5m / Ni-plating 3~5mPIN terminalPA66 UL94V-0CCC, VDE, UL, CUL
