Specifications
Place of Origin :
Henan, China
Brand Name :
Aobest
Model Number :
galvanized
Type :
Bare
Application :
Overhead
Conductor Material :
galvanized steel
Conductor Type :
Stranded
Insulation Material :
No jacket
Rated voltage :
10KV
Product name :
high quality stranded guy wire
Certification :
ISO9001,ISO14001
Conductor :
galvanized steel
Name :
stay wire
Standard :
IEC NEMA GB JIS
MOQ :
1000 meters
Price :
$2.00/meters >=1000 meters
Description

Stranded Guy wire/stay wire/galvanized steel wire rope galvanized steel wire strand

Galvanized Steel Stay Wire
Guy and Messanger strands
Galvanized Steel Strands

Galvanized Stay Wire strands is used for transmission line poles, ACSR core,messanger, guy wire, telegraph & telephone poles,etc
Construction: 1x7 / 1x19 / 1x37
ASTM A475 / ASTM B498 / BS 183

Application: For ground / earth wire and bare conductor core ACSR, guy wire and messanger.

No. of Wires: 7

Diameter: 3/16; 7/32; 1/4; 9/32; 5/16; 3/8; 7/16; 1/2; 9/16; 5/8 Inches;

Number
of
wires
in
strand		 Stee
wire
diameter
mm		 Norminal
diameter
of the
strand
mm		 The cross
section
area of
strand
mm 2		 Nominal tensile streng of Gal.steel wire Mpa Approximate
Weight
of stand
per
Kg/100M
1175 1270 1370 1470 1570
Breaking strength of strand KN≥
1×7 1.60 4.8 14.07 16.53 17.87 19.28 20.68 22.09 11.17
1.80 5.4 17.81 20.93 22.62 24.40 26.18 27.96 14.14
2.00 6.0 21.99 25.84 27.93 30.13 32.32 34.52 17.46
2.20 6.6 26.60 31.26 33.78 36.44 39.10 41.76 22.77
2.30 6.9 29.08 34.17 36.93 39.84 42.75 45.66 23.09
2.60 7.8 37.17 43.60 47.20 50.92 54.63 58.30 29.51
2.90 8.7 46.24 54.33 58.72 63.36 67.97 72.60 36.71
3.00 9.0 49.48 58.14 62.84 67.79 72.74 77.68 42.38
3.20 9.6 56.30 66.15 71.50 77.13 82.76 88.39 44.70
3.50 10.5 67.35 79.14 85.85 92.27 99.00 105.74 53.48
3.80 11.4 79.39 93.28 100.82 108.76 116.70 124.64 63.04

Number
of
wires
in
strand		 Stee
wire
diameter
mm		 Norminal
diameter
of the
strand
mm		 The cross
section
area of
strand
mm 2		 Nominal tensile streng of Gal.steel wire Mpa Approximate
Weight
of stand
per
Kg/100M
1175 1270 1370 1470 1570
Breaking strength of strand KN≥
1×19 1.60 8.0 38.2 44.88 48.51 52.38 56.15 59.97 30.40
1.80 9.0 48.35 56.81 61.40 66.24 71.07 75.91 38.49
2.00 10.0 59.69 70.14 75.81 81.77 87.74 93.71 47.51
2.20 11.6 72.22 84.86 91.71 98.94 106.16 113.39 56.69
2.30 11.5 78.94 92.75 100.25 108.15 116.04 123.94 62.84
2.60 13.0 100.88 118.53 125.12 138.20 148.29 158.38 80.30
2.90 14.5 125.50 147.46 159.38 171.93 184.48 197.03 99.90
3.00 15.0 134.30 157.80 170.56 183.99 197.42 210.85 105.43
3.20 16.0 152.81 179.55 194.06 209.35 224.63 239.91 121.64

All steel strands are smooth, uniform and free from all defects, such as spills, splits, die marks, scratches and abrasion.

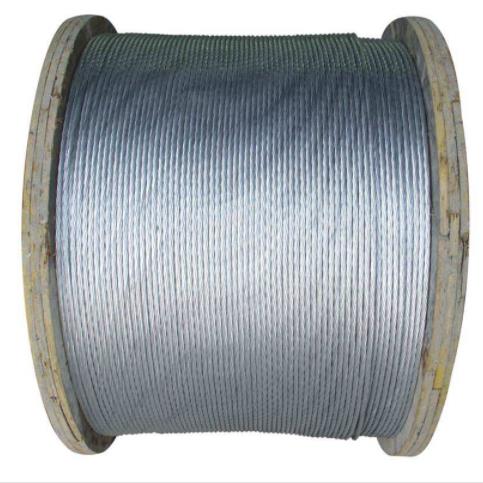

The earth wire is suitably packed before dispatch in non-returnable wooden drums or as per customer's requirement.

(Note:the above information is limit, we also can manufacture many other kinds of wires/cables according to customer's special requirement and we also accept OEM orders with other equivalent standards. Please feel free to tell me the diameter or nominal section are to me, I will send our best quotation to you.

)

STRANDED GUY WIRE Bare Type 50 mm2 Galvanized Steel Wire for Overhead in Sudan Direct

We have the most professional manufactory of cables.
We can produce products as your requirement.
Please contact me freely; maybe I’ll give you a big surprise. ^.^
