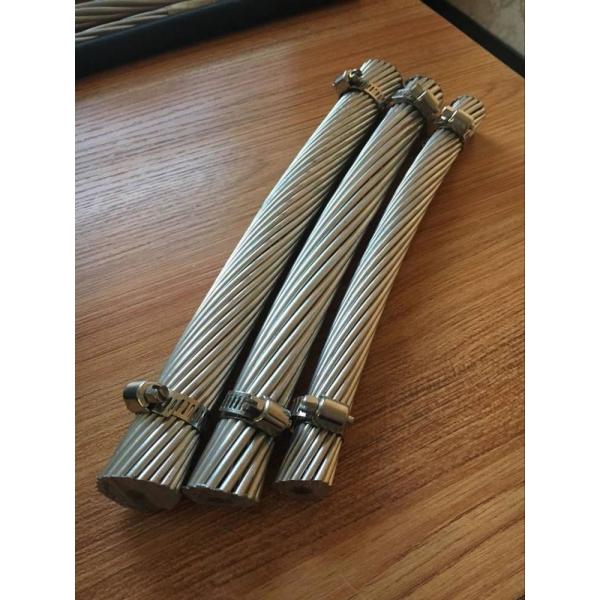

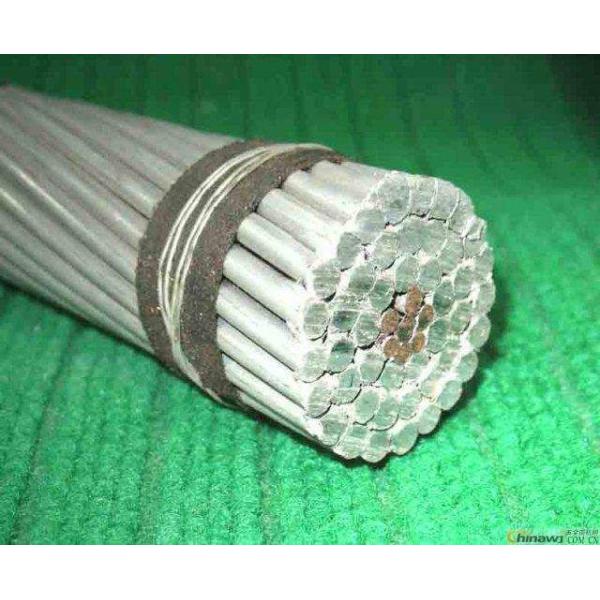

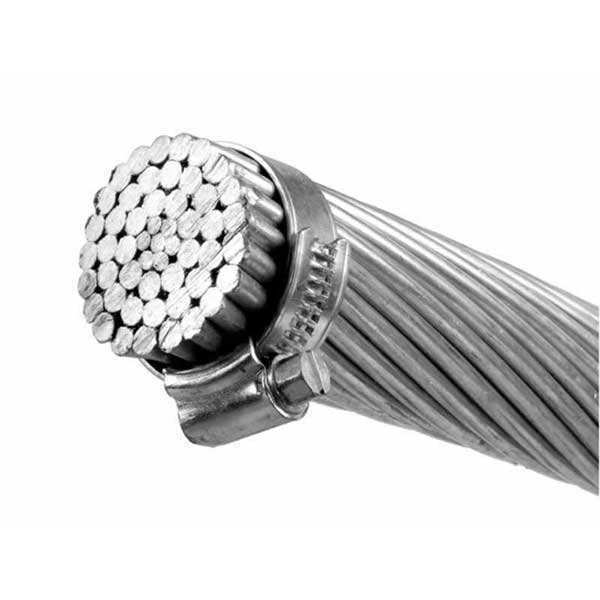

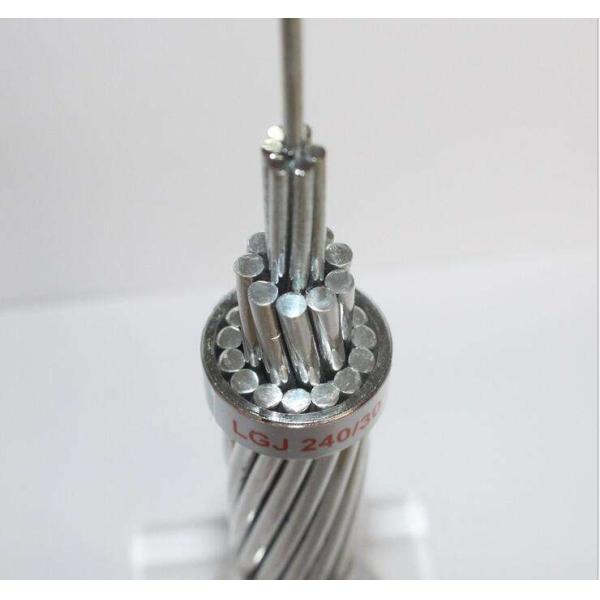

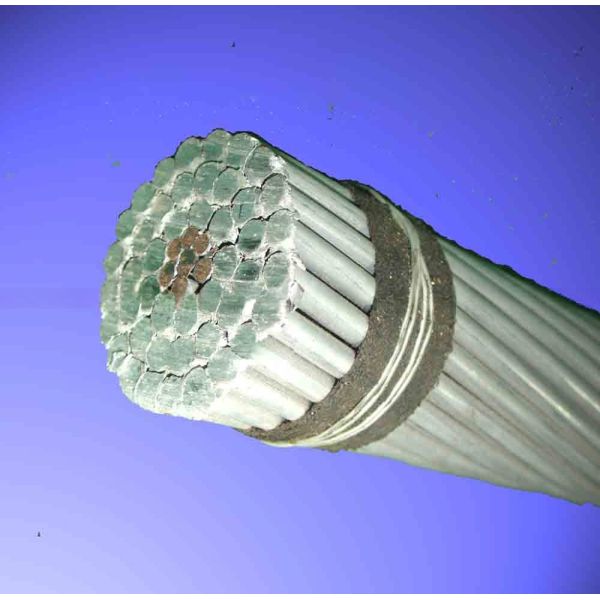

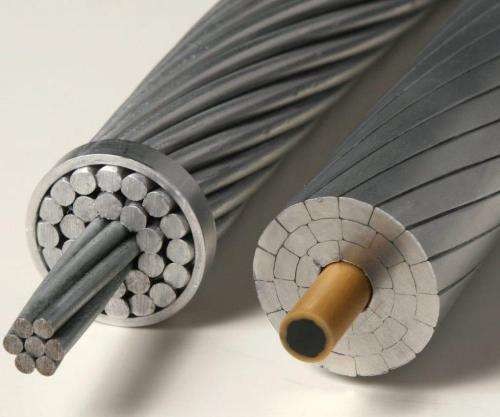

HIGH Tensile galvanized steel wire BARE CABLE
HIGH Tensile galvanized steel wire BARE CABLE
HIGH Tensile galvanized steel wire BARE CABLE
HIGH Tensile galvanized steel wire BARE CABLE
HIGH Tensile galvanized steel wire BARE CABLE
HIGH Tensile galvanized steel wire BARE CABLE
HIGH Tensile galvanized steel wire BARE CABLE
HIGH Tensile galvanized steel wire BARE CABLE
HIGH Tensile galvanized steel wire BARE CABLE
HIGH Tensile galvanized steel wire BARE CABLE
HIGH Tensile galvanized steel wire BARE CABLE
HIGH Tensile galvanized steel wire BARE CABLE
Specifications
Steel Grade :
high carbon wire rod
Standard :
AiSi
Place of Origin :
Henan, China
Type :
galvanized
Application :
Construction
Alloy Or Not :
Non-Alloy
Special Use :
Cold Heading Steel
Model Number :
1X3 1X4 1X7 1X19 1X37
Brand Name :
Aobest
Grade :
STEEL
Delivery Time :
8-14 days
Wire Gauge :
1.57mm-4.7mm
Certificate :
ISO9001/BV
standard :
IEC
Packaging Details :
standard export wooden drum/steel wooden drum or according to clients' requirment
Port :
Qingdao/Shanghai port
Supply Ability :
650000 Meter/Meters per Week
MOQ :
10 kilometers
Price :
$1,650.00/kilometers 10-49999 kilometers
Description

Guy wire/stay wire/galvanized steel wire rope galvanized steel wire strand

Galvanized Steel Stay Wire
Guy and Messanger strands
Galvanized Steel Strands

Galvanized Stay Wire strands is used for transmission line poles, ACSR core,messanger, guy wire, telegraph & telephone poles,etc
Construction: 1x7 / 1x19 / 1x37
ASTM A475 / ASTM B498 / BS 183

Application: For ground / earth wire and bare conductor core ACSR, guy wire and messanger.

No. of Wires: 7 , 19, 37

Diameter: 3/16; 7/32; 1/4; 9/32; 5/16; 3/8; 7/16; 1/2; 9/16; 5/8 Inches;

Constructions:
1 x 3 diameter of wire in strand: 2.64 to 4.19mm
1 x 7 diameter of wire in strand: 1.04 to 5.26mm
1 x 19 diameter of wire in strand: 2.64 to 5.08mm
1 x 37 diameter of wire in strand: 3.63 to 4.55mm

Number
of
wires
in
strand		 Stee
wire
diameter
mm		 Norminal
diameter
of the
strand
mm		 The cross
section
area of
strand
mm 2		 Nominal tensile streng of Gal.steel wire Mpa Approximate
Weight
of stand
per
Kg/100M
1175 1270 1370 1470 1570
Breaking strength of strand KN≥
1×7 1.60 4.8 14.07 16.53 17.87 19.28 20.68 22.09 11.17
1.80 5.4 17.81 20.93 22.62 24.40 26.18 27.96 14.14
2.00 6.0 21.99 25.84 27.93 30.13 32.32 34.52 17.46
2.20 6.6 26.60 31.26 33.78 36.44 39.10 41.76 22.77
2.30 6.9 29.08 34.17 36.93 39.84 42.75 45.66 23.09
2.60 7.8 37.17 43.60 47.20 50.92 54.63 58.30 29.51
2.90 8.7 46.24 54.33 58.72 63.36 67.97 72.60 36.71
3.00 9.0 49.48 58.14 62.84 67.79 72.74 77.68 42.38
3.20 9.6 56.30 66.15 71.50 77.13 82.76 88.39 44.70
3.50 10.5 67.35 79.14 85.85 92.27 99.00 105.74 53.48
3.80 11.4 79.39 93.28 100.82 108.76 116.70 124.64 63.04

Number
of
wires
in
strand		 Stee
wire
diameter
mm		 Norminal
diameter
of the
strand
mm		 The cross
section
area of
strand
mm 2		 Nominal tensile streng of Gal.steel wire Mpa Approximate
Weight
of stand
per
Kg/100M
1175 1270 1370 1470 1570
Breaking strength of strand KN≥
1×19 1.60 8.0 38.2 44.88 48.51 52.38 56.15 59.97 30.40
1.80 9.0 48.35 56.81 61.40 66.24 71.07 75.91 38.49
2.00 10.0 59.69 70.14 75.81 81.77 87.74 93.71 47.51
2.20 11.6 72.22 84.86 91.71 98.94 106.16 113.39 56.69
2.30 11.5 78.94 92.75 100.25 108.15 116.04 123.94 62.84
2.60 13.0 100.88 118.53 125.12 138.20 148.29 158.38 80.30
2.90 14.5 125.50 147.46 159.38 171.93 184.48 197.03 99.90
3.00 15.0 134.30 157.80 170.56 183.99 197.42 210.85 105.43
3.20 16.0 152.81 179.55 194.06 209.35 224.63 239.91 121.64

We can provide more info than above, if needed. Customer's specification are available upon request.
