stay wire for telegraph pole
stay wire for telegraph pole
stay wire for telegraph pole
stay wire for telegraph pole
stay wire for telegraph pole
stay wire for telegraph pole
stay wire for telegraph pole
stay wire for telegraph pole
stay wire for telegraph pole
stay wire for telegraph pole
stay wire for telegraph pole
stay wire for telegraph pole
Specifications
Place of Origin :
Henan, China
Brand Name :
Aobest
Model Number :
guy wire
Insulation Material :
PE
Type :
LOW VOLTAGE
Application :
Construction
Conductor Material :
Steel wire
Jacket :
PE
Product name :
stay wire
Conductor :
Galvanized steel

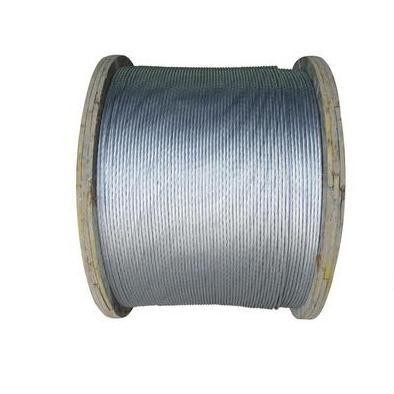

Package :
Wooden Drum
Certificate :
ISO9001/ISO14001 /OHSAS18001/CCC

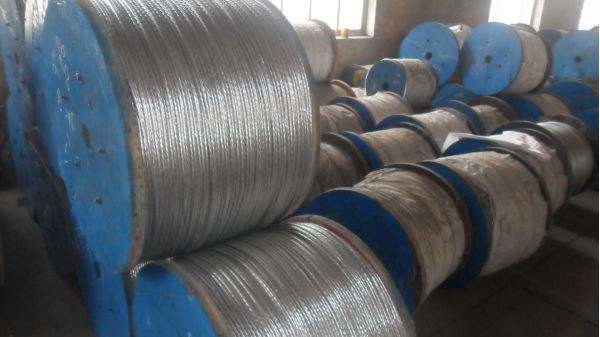

Packaging Details :
export standard wooden drum
Price :
$6,500.00/tons
Description

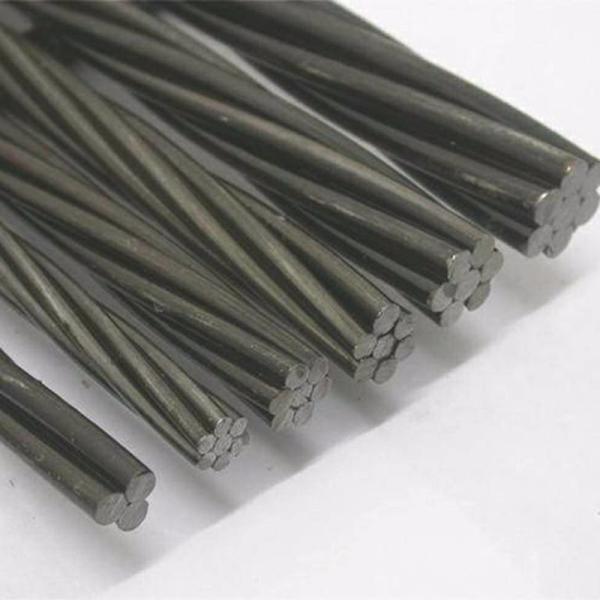

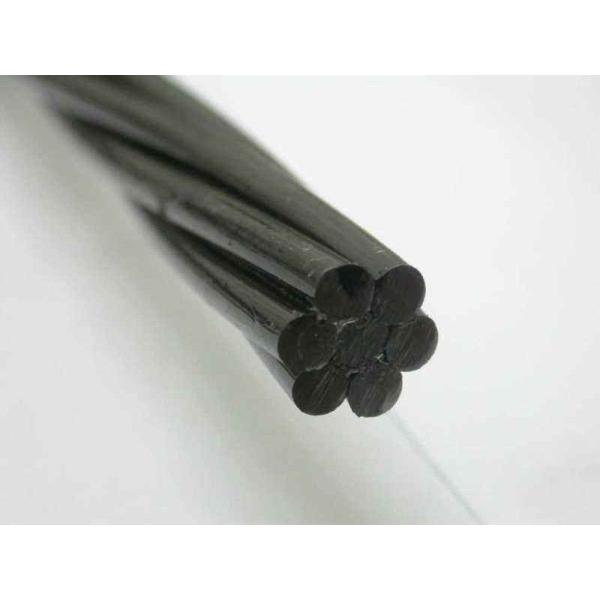

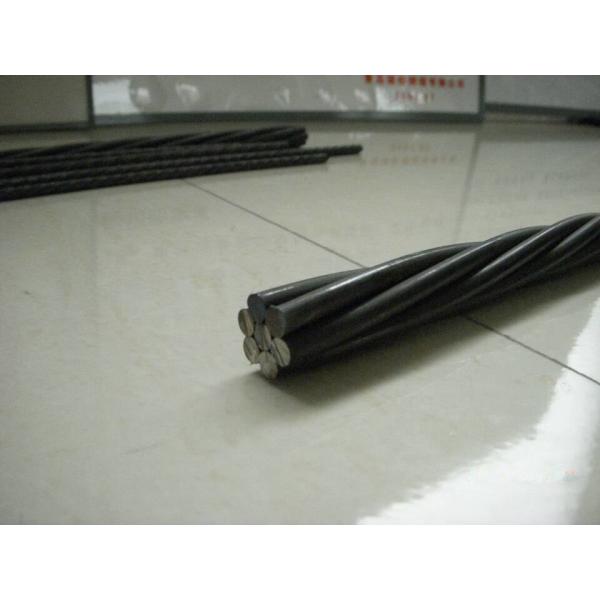

Galvanized Steel Guy Wire
Guy Wire and Messanger strands
Galvanized Steel Strands
Construction: 1x7 / 1x19 / 1x37
Manufacturing Standard: ASTM A475 / ASTM B498 / BS 183

Siemens Martin Grade, High Strength Grade, Extra High Strength Grade

Application: For ground / earth wire and bare conductor core ACSR, guy wire and messanger.

No. of Wires: 7

Diameter: 3/16; 7/32; 1/4; 9/32; 5/16; 3/8; 7/16; 1/2; 9/16; 5/8 Inches;

Number
of
wires
in
strand		 Stee
wire
diameter
mm		 Norminal
diameter
of the
strand
mm		 The cross
section
area of
strand
mm 2		 Nominal tensile streng of Gal.steel wire Mpa Approximate
Weight
of stand
per
Kg/100M
1175 1270 1370 1470 1570
Breaking strength of strand KN≥
1×7 1.60 4.8 14.07 16.53 17.87 19.28 20.68 22.09 11.17
1.80 5.4 17.81 20.93 22.62 24.40 26.18 27.96 14.14
2.00 6.0 21.99 25.84 27.93 30.13 32.32 34.52 17.46
2.20 6.6 26.60 31.26 33.78 36.44 39.10 41.76 22.77
2.30 6.9 29.08 34.17 36.93 39.84 42.75 45.66 23.09
2.60 7.8 37.17 43.60 47.20 50.92 54.63 58.30 29.51
2.90 8.7 46.24 54.33 58.72 63.36 67.97 72.60 36.71
3.00 9.0 49.48 58.14 62.84 67.79 72.74 77.68 42.38
3.20 9.6 56.30 66.15 71.50 77.13 82.76 88.39 44.70
3.50 10.5 67.35 79.14 85.85 92.27 99.00 105.74 53.48
3.80 11.4 79.39 93.28 100.82 108.76 116.70 124.64 63.04

Number
of
wires
in
strand		 Stee
wire
diameter
mm		 Norminal
diameter
of the
strand
mm		 The cross
section
area of
strand
mm 2		 Nominal tensile streng of Gal.steel wire Mpa Approximate
Weight
of stand
per
Kg/100M
1175 1270 1370 1470 1570
Breaking strength of strand KN≥
1×19 1.60 8.0 38.2 44.88 48.51 52.38 56.15 59.97 30.40
1.80 9.0 48.35 56.81 61.40 66.24 71.07 75.91 38.49
2.00 10.0 59.69 70.14 75.81 81.77 87.74 93.71 47.51
2.20 11.6 72.22 84.86 91.71 98.94 106.16 113.39 56.69
2.30 11.5 78.94 92.75 100.25 108.15 116.04 123.94 62.84
2.60 13.0 100.88 118.53 125.12 138.20 148.29 158.38 80.30
2.90 14.5 125.50 147.46 159.38 171.93 184.48 197.03 99.90
3.00 15.0 134.30 157.80 170.56 183.99 197.42 210.85 105.43
3.20 16.0 152.81 179.55 194.06 209.35 224.63 239.91 121.64
