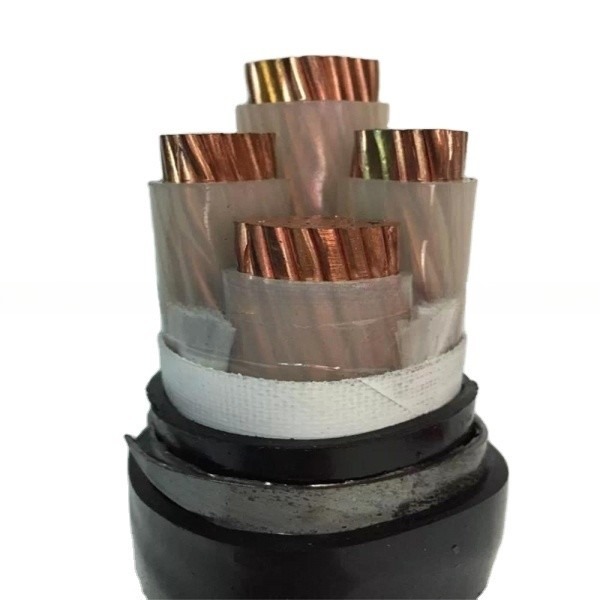

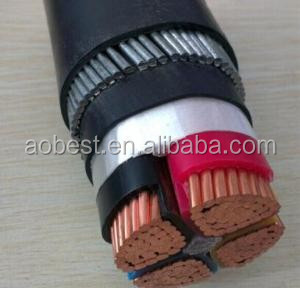

2024 Hot Sale PVC Insulated Steel Wire Armoured Low Voltage Multi Conductor Cable for Industrial Use Copper Material
2024 Hot Sale PVC Insulated Steel Wire Armoured Low Voltage Multi Conductor Cable for Industrial Use Copper Material
2024 Hot Sale PVC Insulated Steel Wire Armoured Low Voltage Multi Conductor Cable for Industrial Use Copper Material
2024 Hot Sale PVC Insulated Steel Wire Armoured Low Voltage Multi Conductor Cable for Industrial Use Copper Material
2024 Hot Sale PVC Insulated Steel Wire Armoured Low Voltage Multi Conductor Cable for Industrial Use Copper Material
2024 Hot Sale PVC Insulated Steel Wire Armoured Low Voltage Multi Conductor Cable for Industrial Use Copper Material
2024 Hot Sale PVC Insulated Steel Wire Armoured Low Voltage Multi Conductor Cable for Industrial Use Copper Material
2024 Hot Sale PVC Insulated Steel Wire Armoured Low Voltage Multi Conductor Cable for Industrial Use Copper Material
2024 Hot Sale PVC Insulated Steel Wire Armoured Low Voltage Multi Conductor Cable for Industrial Use Copper Material
2024 Hot Sale PVC Insulated Steel Wire Armoured Low Voltage Multi Conductor Cable for Industrial Use Copper Material
2024 Hot Sale PVC Insulated Steel Wire Armoured Low Voltage Multi Conductor Cable for Industrial Use Copper Material
2024 Hot Sale PVC Insulated Steel Wire Armoured Low Voltage Multi Conductor Cable for Industrial Use Copper Material
Specifications
Place of Origin :
Henan, China
Brand Name :
Aobest
Model Number :
KVVP KVVP1 KVVP2 KVV22P
Insulation Material :
PVC
Type :
LOW VOLTAGE
Application :
Industrial
Conductor Material :
Copper
Jacket :
PVC
Size :
50 mm2
Product name :
Copper Core PVC Insulated Electrical Power Cable
Name :
pvc insulated cable
Color :
Requirement
Certificate :
ISO9001/ISO14001 /OHSAS18001/CCC
Standard :
BS IEC ASTM DIN
Conductor :
copper
Insulation :
pvc
Sheath :
pvc
Rated voltage :
600/1000 Volts
Core :
Multi-core
MOQ :
2 kilometers
Price :
$1,000.00 - $10,000.00/kilometers
Description

FLEXIBLE PVC multi conductor CONTROL CABLE

1. Standard
The control cable can be produced according to the standard GB9330-1988, and the factory can also manufacture the cables in accordance with other standards.
2. Scope of Application
The control cable are suitable for the wiring of electrical controlling equipments and instruments, monitoring and controlling return circuit, electrical protection and measurement in power distribution unit under the circumstance that the rated voltage is up to 450/750V AC.
3. Service Conditions
(1)The long-time working temperature of conductor of PVC insulated control cable is 70°C
The long-time working temperature of conductor of XLPE insulated control cable is 90°C
(2) The temperature for laying the cables can not be lower than 0°C. Permissible bending radius(r): Unarmoured cable: R≥ 6D; (D: Outer diameter of the cable); Armoured or copper-tape screened cable: R≥ 12D; Shielded flexible cable: R≥ 6D

PVC Insulated Control Cable Parameter

Type Name Section Area(mm2) No. of Core Application Site
KVV Copper Conductor,PVC Insulated and Sheathed Control Cable 0.75 1.0 1.5 2.5 2-16 Permanent installation indoors,in cable ditches or pipes
4 6 2-14
10 2-10
KVVP Copper Conductor,PVC Insulated and Sheathed,Braiding Shielded Control Cable 0.75 1.0 1.5 2.5 2-61 Permanent installation indoors,in cable ditches or pipes where shielding is required
4 6 2-14
10 2-10
KVVP2 Copper Conductor,PVC Insulated and Sheathed,Copper-tape Screened Control Cable 0.75 1.0 1.5 2.5 4-10 Permanent installation indoors,in cable ditches or pipes where shielding is required
4 6 7-61
10 4-10
KVV22 Copper Conductor,PVC Insulated and Sheathed,Steel tape Armored Control Cable 0.75 1.0 1.5 2.5 7-61 Permanent installation indoors,in cable ditches,Be able to withstand stronger external mechanical force
4 6 4-14
10 4-14
KVVR Copper Conductor,PVC Insulated and Sheathed,Flexible Control Cable 0.5-2.5 4-61 Installation indoors where flexibility and movability are required
KVVRP Copper Conductor,PVC Insulated and Sheathed,Braiding shielded Flexible Control Cable 0.5 0.75 1.0 4-61 Installation indoors where flexibility shielding and movability are required
