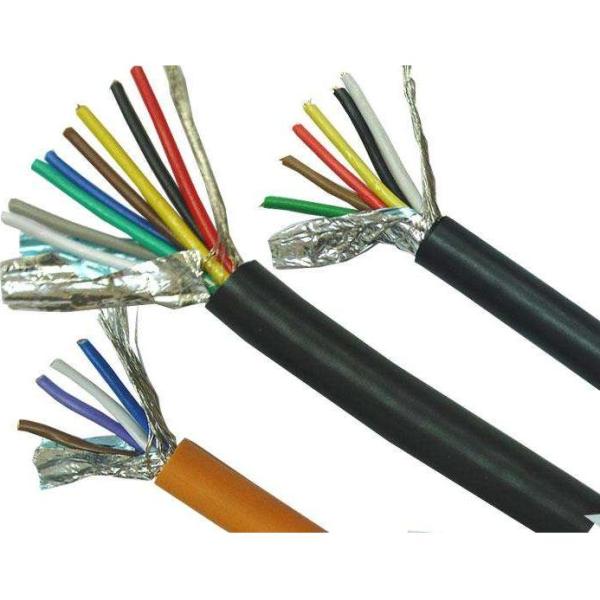

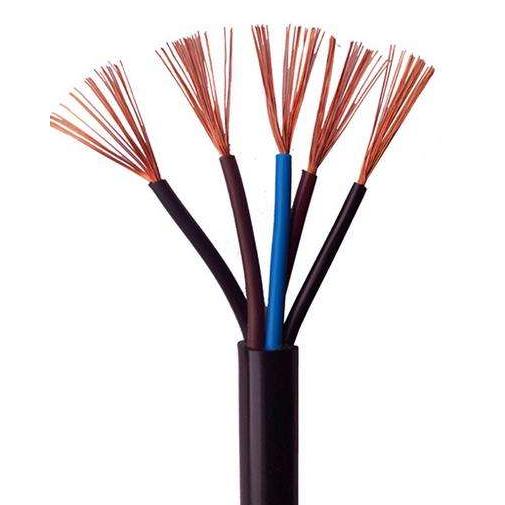

Industrial Grade Cu Conductor Braided Shield Power Cable for Low Voltage Applications
Industrial Grade Cu Conductor Braided Shield Power Cable for Low Voltage Applications
Industrial Grade Cu Conductor Braided Shield Power Cable for Low Voltage Applications
Industrial Grade Cu Conductor Braided Shield Power Cable for Low Voltage Applications
Industrial Grade Cu Conductor Braided Shield Power Cable for Low Voltage Applications
Industrial Grade Cu Conductor Braided Shield Power Cable for Low Voltage Applications
Industrial Grade Cu Conductor Braided Shield Power Cable for Low Voltage Applications
Industrial Grade Cu Conductor Braided Shield Power Cable for Low Voltage Applications
Industrial Grade Cu Conductor Braided Shield Power Cable for Low Voltage Applications
Industrial Grade Cu Conductor Braided Shield Power Cable for Low Voltage Applications
Industrial Grade Cu Conductor Braided Shield Power Cable for Low Voltage Applications
Industrial Grade Cu Conductor Braided Shield Power Cable for Low Voltage Applications
Specifications
Place of Origin :
Henan, China
Brand Name :
Aobest
Model Number :
Control cable
Insulation Material :
PVC
Type :
LOW VOLTAGE
Application :
Industrial
Conductor Material :
Copper
Jacket :
PVC
Shielding :
Braid
Product name :
control cable
Certificate :
ISO9001/ISO14001/OHSAS18001/CCC
Standard :
BS IEC ASTM DIN
Keywords :
Instrucment cable
Package :
Wooden Drum
MOQ :
1000 kilometers
Price :
$5,000.00/kilometers >=1000 kilometers
Description
Specifications:
Control Cable:Cu/PVC/PVC
-standard:GB,IEC,AS ,DIN
-Approval:CQC,ABS,GL ,QMS
-10ys experience

Application:

Used as power and connecting cables in mechanical engineering for tooling machinery, control unit,

production lines, transportation equipment, conveyor and assembly lines as well as in plant construction

under the circumstance that the rated voltage is up to 450/750V AC.

Character and Relevant Parameters:

1. Long-term service temperature of the cable conductor: 70°C

2. Rated voltage: 300/500V,450/750V ,600/1000V.

3. Cable lying temperature ≥ 0°C

4. Cores: 2, 3, 4, 5, 6,7, 8, 10, 12, 14, 16, 19, 24, 27, 30, 37, 44, 48, 52, 61

5. Minimun bending radius:

Non armored ≥ out diameter of cable 6 times

Armored layer or copper tape shielded ≥ outer diameter of cable 12 times

Shielded layer soft cable ≥ outer diameter of cable 6 times

PVC Insulated Control Cable Parameter:

Type

Name

Section Area(mm2)

No. of Core

KVV

 Copper Conductor, PVC Insulated and Sheathed control cable

0.75 1.0 1.5 2.5

2-8 10 12 14 16 19 24 27 30 37

4.0 6.0

2-8 10 12 14

KVVP

Copper Conductor, PVC Insulated and Sheathed, Copper-braid Screened Control Cable

0.75 1.0 1.5 2.5

2-8 10 12 14 16 19 24 27 30 37

4.0 6.0

2-8 10 12 14

KVVP2

Copper Conductor, PVC Insulated and Sheathed, Copper-tape Screened Control Cable

0.75 1.0 1.5 2.5

2-8 10 12 14 16 19 24 27 30 37

4.0 6.0

2-8 10 12 14

KVVP2-22

Copper Conductor, PVC Insulated and Sheathed, Copper-tape Screened Steel-tape armored Control Cable

0.75 1.0 1.5 2.5

2-8 10 12 14 16 19 24 27 30 37

4.0 6.0

2-8 10 12 14

KVV22

Copper Conductor, PVC Insulated and Sheathed, Steel-tape armored Control Cable

0.75 1.0 1.5 2.5

2-8 10 12 14 16 19 24 27 30 37

4.0 6.0

2-8 10 12 14

KVVR

Copper Conductor, PVC Insulated and Sheathed, Flexible Control Cable

0.75 1.0 1.5 2.5

2-8 10 12 14 16 19 24 27 30 37

4.0 6.0

2-8 10 12 14

KVVRP

Copper Conductor, PVC Insulated and Sheathed, Braiding shielded Flexible Control Cable

0.75 1.0 1.5 2.5

2-8 10 12 14 16 19 24 27 30 37

4.0 6.0

2-8 10 12 14
Industrial Grade Cu Conductor Braided Shield Power Cable for Low Voltage ApplicationsIndustrial Grade Cu Conductor Braided Shield Power Cable for Low Voltage ApplicationsIndustrial Grade Cu Conductor Braided Shield Power Cable for Low Voltage Applications
