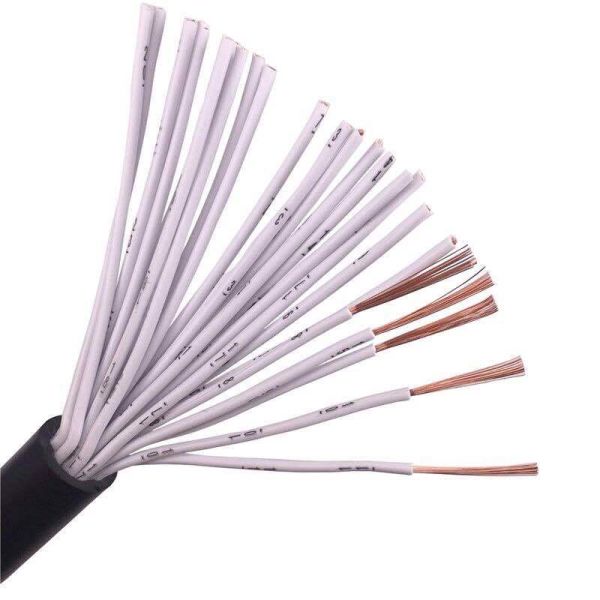

4mm Insulated Copper Conductor Pairs Twisted Control Cable for Precise Control System
4mm Insulated Copper Conductor Pairs Twisted Control Cable for Precise Control System
4mm Insulated Copper Conductor Pairs Twisted Control Cable for Precise Control System
4mm Insulated Copper Conductor Pairs Twisted Control Cable for Precise Control System
4mm Insulated Copper Conductor Pairs Twisted Control Cable for Precise Control System
4mm Insulated Copper Conductor Pairs Twisted Control Cable for Precise Control System
4mm Insulated Copper Conductor Pairs Twisted Control Cable for Precise Control System
4mm Insulated Copper Conductor Pairs Twisted Control Cable for Precise Control System
4mm Insulated Copper Conductor Pairs Twisted Control Cable for Precise Control System
4mm Insulated Copper Conductor Pairs Twisted Control Cable for Precise Control System
4mm Insulated Copper Conductor Pairs Twisted Control Cable for Precise Control System
4mm Insulated Copper Conductor Pairs Twisted Control Cable for Precise Control System
Specifications
Place of Origin :
Henan, China
Brand Name :
Aobest
Model Number :
control cable
Application :
INSTRUMENTATION
Conductor Material :
Copper
Jacket :
PVC
Insulation Material :
PVC XLPE PE
Type :
control cable
Product Name :
high quality control cable 4mm
Conductor :
high quality control cable 4mm
Color :
Requirement
Insulation :
PVC XLPE PE
Certificate :
ISO9001
Standard :
ASTM
Price :
$1.00 - $9.00/kilometers
Description

Best Price Copper Conductor Pairs Twisted Control Cable 4mm and Instrument Cable

1.Standard

The control cable can be produced according to the standard GB9330-1988,IEC60227(60502,60332),DIN, BS, and our factory can also manufacture the cables in accordance with other standards.

2.Service Conditions

(1) The long-time working temperature of conductor of PVC insulated cable is 70oC

The long-time working temperature of conductor of XLPE insulated cable is 90oC

(2) The temperature for laying the cables can not be lower than 0oC.Permissible bending radius(r):unarmoured cable:r≥6D;(D: outer diameter of the cable);armoured or copper-tape screened cable:r≥12D;shielded flexible cable:r≥6D

3.Type& Specification

Type

Name

Section Area(mm2)

No. of Core

Application Site

KVV

Copper Conductor,PVC Insulated and Sheathed Control Cable

0.75 1.0 1.5 2.5

2-16

Permanent installation indoors,in cable ditches or pipes

4 6

2-14

10

2-10

KVVP

Copper Conductor,PVC Insulated and Sheathed,Braiding Shielded Control Cable

0.75 1.0 1.5 2.5

2-61

Permanent installation indoors,in cable ditches or pipes where shielding is required

4 6

2-14

10

2-10

KVVP2

Copper Conductor,PVC Insulated and Sheathed,Copper-tape Screened Control Cable

0.75 1.0 1.5 2.5

4-10

Permanent installation indoors,in cable ditches or pipes where shielding is required

4 6

7-61

10

4-10

KVV22

Copper Conductor,PVC Insulated and Sheathed,Steel tape Armored Control Cable

0.75 1.0 1.5 2.5

7-61

Permanent installation indoors,in cable ditches,Be able to withstand stronger external mechanical force

4 6

4-14

10

4-14

KVVR

Copper Conductor,PVC Insulated and Sheathed,Flexible Control Cable

0.5-2.5

4-61

Installation indoors where flexibility and movability are required

KVVRP

Copper Conductor,PVC Insulated and Sheathed,Braiding shielded Flexible Control Cable

0.5 0.75 1.0

4-61

Installation indoors where flexibility shielding and movability are required

1.5 2.5

4-48

KYJV

Copper Conductor,XLPE Insulated and PVC Sheathed Control Cable

0.75 1.0 1.5 2.5

2-16

Permanent installation indoors,in cable ditches or pipes

4 6

2-14

10

2-10

KYJVP

Copper Conductor,XLPE Insulated,Braiding Shielded,PVC Sheathed Control Cable

0.75 1.0 1.5 2.5

2-61

Permanent installation indoors,in cable ditches or pipes where shielding is required

4 6

2-14

10

2-10

KYJV22

Copper Conductor,XLPE Insulated,Steel-tape Armoured,PVC Sheathed Control Cable

0.75 1.0 1.5 2.5

7-61

Permanent installation indoors,in cable ditches,pipes or underground Be cable to with stand stronger external mechanical force

4 6

4-14

10

4-10

KYJVP2

Copper Conductor,XLPE Insulated,Copper tape Screened,PVC Sheathed Control Cable

0.75 1.0 1.5 2.5

7-61

Permanent installation indoors,in cable ditches or pipes where shielding is required

4 6

4-14

10

4-10

KYJVR

Copper Conductor,XLPE Insulated,PVC Sheathed Flexible Control Cable

0.5-2.5

4-61

Installation indoors where flexibility and movability are required

KYJVRP

Copper Conductor,XLPE Insulated,Braiding Shielded,PVC Sheathed Flexible Control Cable

0.5 0.75 1.0

4-61

1.5 2.5

4-48

Installation indoors where flexibility shielding and movability are required

More information will be offered upon your request, if needed.!
