Best Price Single-Phase Insulated Low Voltage Cable Concentric Type
Best Price Single-Phase Insulated Low Voltage Cable Concentric Type
Best Price Single-Phase Insulated Low Voltage Cable Concentric Type
Best Price Single-Phase Insulated Low Voltage Cable Concentric Type
Best Price Single-Phase Insulated Low Voltage Cable Concentric Type
Best Price Single-Phase Insulated Low Voltage Cable Concentric Type
Best Price Single-Phase Insulated Low Voltage Cable Concentric Type
Best Price Single-Phase Insulated Low Voltage Cable Concentric Type
Best Price Single-Phase Insulated Low Voltage Cable Concentric Type
Best Price Single-Phase Insulated Low Voltage Cable Concentric Type
Best Price Single-Phase Insulated Low Voltage Cable Concentric Type
Best Price Single-Phase Insulated Low Voltage Cable Concentric Type
Specifications
Place of Origin :
Henan, China
Brand Name :
Aobest
Model Number :
BS 7870 NYCY
Insulation Material :
PVC/PE/XLPE
Type :
LOW VOLTAGE
Application :
Energy Supply
Conductor Material :
Copper or Aluminum
Jacket :
PVC/PE/XLPE
Product name :
concentric cable
Certificate :
ISO9001/ISO14001 /OHSAS18001/CCC
Standard :
BS IEC ASTM DIN
Conductor :
cooper or aluminum conductor
Rated voltage :
0.6/1KV
Package :
Wooden Drum
MOQ :
300 meters
Price :
$0.66/meters
Description

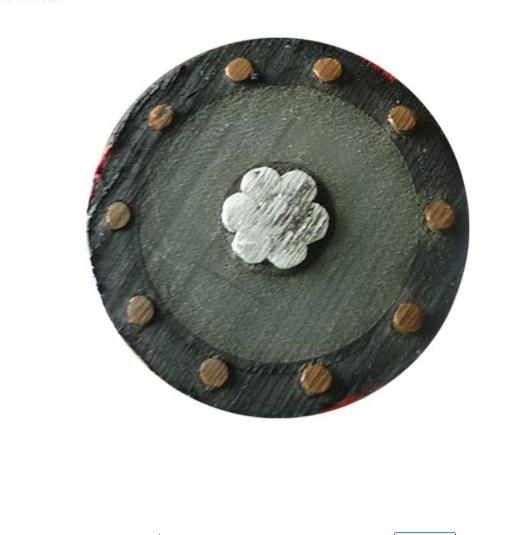

Concentric Split single phase service cable, 4mm to 35mm

Plain annealed stranded copper phase conductor,

XLPE insulated surrounded by a concentric layer of plain annealed solid copper neutral conductors.

XLPE insulated and plain annealed solid strand bare copper earth conductors,

PVC outer sheath. Black.

600/1000 volts

grade to BS7870.

Choose a cable type

CCC Code Conductor size
(MM2)		 Stranding Cores Weight
(KG/KM)		 Overall
Diameter (MM)		 Gland
Size		 Cleat Trefoil
Cleat
4SPLITCON 4 7/0.85 1 206 9.6 20S - -
6SPLITCON 6 7/1.04 1 281 11.4 20 - -
10SPLITCON 10 7/1.35 1 394 12.7 20 - -
16SPLITCON 16 7/1.70 1 583 14.6 25 - -
25SPLITCON 25 *7/2.14 1 843 18.7 32 - -
35SPLITCON 35 7/2.52 1 1300 23 40 - -

Conductor identification :
Brown live/Blue neutral.

Should not be installed at temperatures below 0oc or above + 60oc.

Also available in Violet outer sheath in 6mm, 10mm, 16mm & 25mm.

* Stranding of neutral is the same as phase conductor except 25 sq mm which has 11 x 1.70mm.
