2024 High Quality 10mm Airdac Cable with Pilot Core Copper Conductor XLPE Insulation Low Voltage Insulated for Construction
2024 High Quality 10mm Airdac Cable with Pilot Core Copper Conductor XLPE Insulation Low Voltage Insulated for Construction
2024 High Quality 10mm Airdac Cable with Pilot Core Copper Conductor XLPE Insulation Low Voltage Insulated for Construction
2024 High Quality 10mm Airdac Cable with Pilot Core Copper Conductor XLPE Insulation Low Voltage Insulated for Construction
2024 High Quality 10mm Airdac Cable with Pilot Core Copper Conductor XLPE Insulation Low Voltage Insulated for Construction
2024 High Quality 10mm Airdac Cable with Pilot Core Copper Conductor XLPE Insulation Low Voltage Insulated for Construction
Specifications
Place of Origin :
Henan, China
Brand Name :
Aobest
Model Number :
10mm airdac cable
Insulation Material :
xlpe
Type :
LOW VOLTAGE
Application :
Construction
Conductor Material :
Copper
Jacket :
PVC
Product name :
Airdac cable
material :
airdac cable aluminum
Conductor :
Alulminum
Standard :
BS IEC ASTM DIN
Certificate :
ISO9001/ISO14001 /OHSAS18001/CCC
MOQ :
5000 kilometers
Price :
$2.30/kilometers
Description

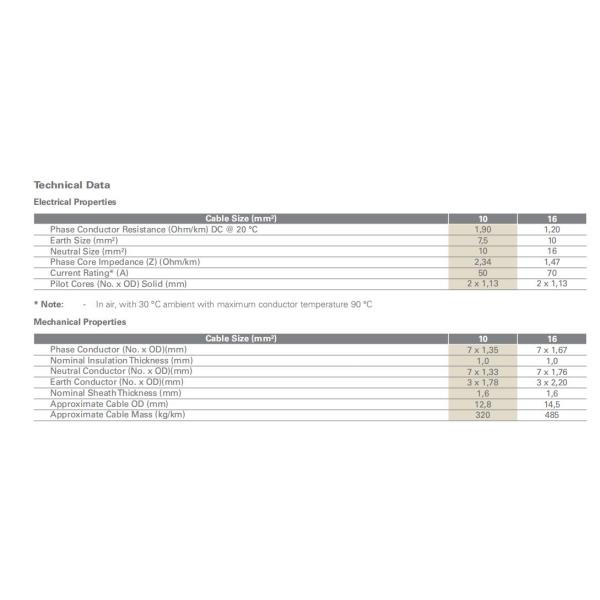

Specifications for 10mm airdac cable with Pilot Core Airdac Cable

2024 High Quality 10mm Airdac Cable with Pilot Core Copper Conductor XLPE Insulation Low Voltage Insulated for Construction

2024 High Quality 10mm Airdac Cable with Pilot Core Copper Conductor XLPE Insulation Low Voltage Insulated for Construction2024 High Quality 10mm Airdac Cable with Pilot Core Copper Conductor XLPE Insulation Low Voltage Insulated for Construction2024 High Quality 10mm Airdac Cable with Pilot Core Copper Conductor XLPE Insulation Low Voltage Insulated for Construction2024 High Quality 10mm Airdac Cable with Pilot Core Copper Conductor XLPE Insulation Low Voltage Insulated for Construction2024 High Quality 10mm Airdac Cable with Pilot Core Copper Conductor XLPE Insulation Low Voltage Insulated for Construction2024 High Quality 10mm Airdac Cable with Pilot Core Copper Conductor XLPE Insulation Low Voltage Insulated for Construction

Cu/Al conductor PVC insulation concentric conductor PVC sheath power cable

Application:

Power cable of Cu conductor PVC insulation PVC sheath and concentric conductor is used for power transmission on power lines of rated voltage 0.6/1kV or lower. It is widely used in petrochemical industry, metallurgy, mines and high-rise buildings.

Standards: IEC502-1983, IEC331-1970

Conductor: Cu/Al

Insulation: PVC (Premature Ventricular Contraction)

Sheath: PVC (Premature Ventricular Contraction)

Sheath Color: Black or Gray (Bespoke cable)

Bending Radius:

Single core: 20D ± 0.05, multi-core: 15D ± 0.05

Temperature Rating: 0°C to 70°C

0.6/1kV 3+1-core Cu(Al)/PVC/PVC Concentric Conductor Cable

Nominal cross sectional area of conductor(mm2)

Approx, overall diameter(mm)

3×16+1×10

21.5

3×25+1×16

25.1

3×50+1×25

28.1

3×95+1×50

35.0

3×120+1×70

38.7

3×300+1×150

59.5

More information will be offered, if needed.

Aluminum Alloy Concentric Cable 2x6AWG
ASTM B801

Label: ALUMINUM Alloy CONCENTRIC CABLE
2x6 AWG
Specified
Standard ASTM B 801
Constructive Characteristics
Wiring direction last to the right
layer:
Wiring step: 8-16 outer diameter
Dimensional Characteristics
Single aluminum wire diameter(mm): 1.5544
Phase Diameter (mm): 4.66
Number of threads: 7
Section of the Phase conductor(mm2): 13.3
Phase insulation thickness (mm): 1.14
Diameter of the insulation phase conductor(mm): 6.94
Neutral wire Characteristics:
Coverage rate(%): ≥90
Neutral Diameter(mm): 1.08
Number of threads: 14
Section(mm2): 12.97
Neutral angle of incidence: 30°≤α≤40°
Inner ribbon thickness (mm): 0.15
Cover thickness(mm): 1.14
Approximate Outside Diameter (mm): 11.14
Electrical Characteristics
Density at 20 ºC g/m³: 2.71
Weight of single aluminum conductor(kg/km): 36.8
Approximate weight (kg / km): 156
Current-carrying capacity to 90ºC(A): 60
Resistance in C.C. a 20 ºC(Ω/km): ≤ 2,16

Any inquiry, pls contact me freely. Best prices will be offered.

2024 High Quality 10mm Airdac Cable with Pilot Core Copper Conductor XLPE Insulation Low Voltage Insulated for Construction2024 High Quality 10mm Airdac Cable with Pilot Core Copper Conductor XLPE Insulation Low Voltage Insulated for Construction

Welcome email to get good price: aobest(at)aobest.cn

whatsapp: +86 13310857673
