Ultra-Lightweight Foldable Vehicle Security Barrier with Electrostatic Powder Coating for Crash Protection
Ultra-Lightweight Foldable Vehicle Security Barrier with Electrostatic Powder Coating for Crash Protection
Specifications
Payment Terms :
T/T,L/C
Surface Finish :
Electrostatic Powder Coating
Brand Name :
RMHs
Weight :
13.4kg
Packaging Details :
Packed in cartons, 400 units per 40-foot container
Model Number :
STOPPY
Material :
Aluminum Profile + Rubber
MOQ :
50 units
Delivery Time :
30
Color :
Yellow / Orange-Yellow
Place of Origin :
CHINA
Folded Dimensions :
Approx. 1400 × 530 × 80 mm
Price :
USD 2,100/unit
Structure :
Foldable (No Locking Mechanism)
Supply Ability :
500 units per month
Applicable Speed Limit :
≤ 30 km/h
Certification :
ISO 9001
Unfolded Dimensions :
1400 × 530 × 230 mm
Description
Vehicle Security Barriers
The HITOMARUKUN is a lightweight mobile crash barrier specifically designed for low-speed urban roads and construction zones. It is used for perimeter isolation around work areas to prevent vehicle intrusion and protect on-site personnel and equipment.
The product is constructed from aluminum profiles, offering lightweight, high-strength, and corrosion-resistant properties. It is non-combustible and recyclable. The surface features electrostatic powder coating - the yellow/orange-yellow finish maintains high visibility without fading or rusting even after long-term outdoor use. The base is equipped with specially formulated rubber plates that provide the friction needed for braking and can be replaced separately when worn.
Ultra-Lightweight Foldable Vehicle Security Barrier with Electrostatic Powder Coating for Crash Protection
Product Specifications
Item Specification
Product Name Lightweight Foldable Crash Barrier
Brand RMHs
Model HITOMARUKUN
Material Aluminum Profile + Rubber
Unfolded Dimensions 1400 * 530 * 230 mm
Folded Dimensions Approx. 1400 * 530 * 80 mm
Weight 13.4 kg
Color Yellow / Orange-Yellow
Structure Foldable (No Locking Mechanism)
Surface Finish Electrostatic Powder Coating
Manufacturing Process Bending & Welding
Applicable Speed Limit ≤ 30 km/h
Applicable Vehicle Type Small Vehicles
Interception Principle Front-Wheel Lifting + Ground Friction Braking
Energy Absorption Plastic Deformation of Aluminum Profile
Flame Retardancy Non-Combustible
Environmental Friendliness 100% Recyclable
Anti-Slip Base Special Rubber Plate
Accessory (Optional) Mesh Cold-Light Arrow Guide Sign
Application Scenarios Residential Construction, Municipal Road Maintenance, Temporary Control Zones
Deployment Method Single-Person Handling, Place and Use Immediately
Storage Method Folded Storage in Dry, Ventilated Area
Ultra-Lightweight Foldable Vehicle Security Barrier with Electrostatic Powder Coating for Crash Protection Ultra-Lightweight Foldable Vehicle Security Barrier with Electrostatic Powder Coating for Crash Protection
Core Advantages
  • 13.4kg - can be carried and deployed by a single person without auxiliary tools
  • Foldable structure - compact size when folded, fits in a vehicle trunk
  • Pure mechanical interception - no power or hydraulics required, place and use immediately
  • Non-combustible aluminum - will not fuel a fire, preventing secondary disasters
  • Electrostatic powder coating - weather-resistant and corrosion-resistant, long-lasting visibility

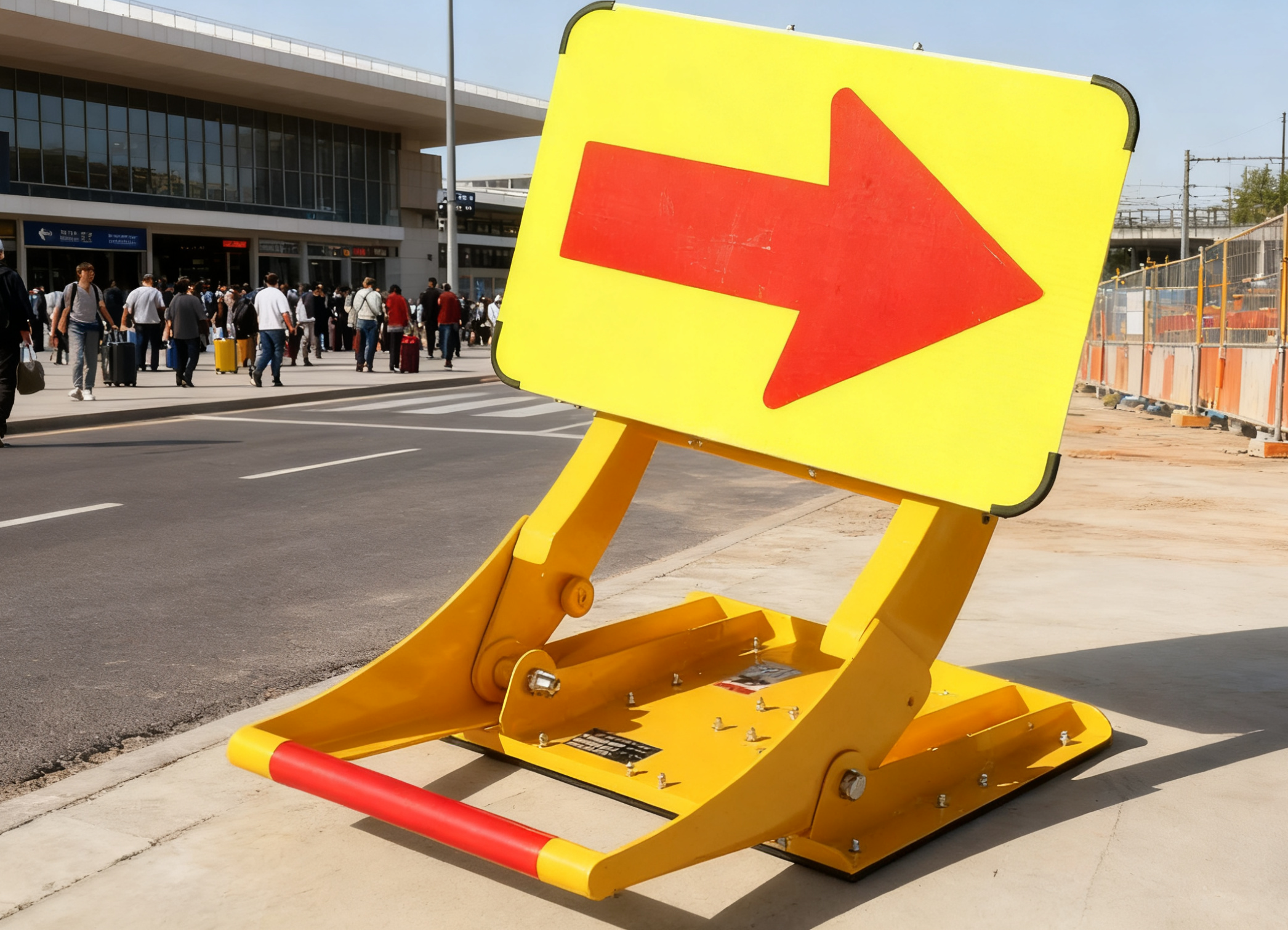

  • Side handles allow attachment of a cold-light arrow guide sign for warning and traffic guidance
Ultra-Lightweight Foldable Vehicle Security Barrier with Electrostatic Powder Coating for Crash Protection
Competition Analysis
Comparison with Major Competitors:
Comparison Item HITOMARUKUN Traditional Steel Barrier Plastic Water-Filled Barrier Heavy-Duty Crash Barrier
Weight 13.4kg 20-40kg 10-15kg (empty) 50kg+
Foldable ✓ Few models ✗ ✗
Interception Capability Medium (≤30km/h) Low Low High (highway sections)
Non-Combustible ✓ ✓ ✗ ✓
Portability High Low Medium Extremely Low
Maintenance Cost Low Medium Low High
Price Medium Low Low High
Competitive Advantages
  • 13.4kg ultra-lightweight - industry-leading
  • Foldable design for easy carrying and storage
  • Non-combustible aluminum material - outstanding safety
  • Purely mechanical structure - no maintenance of electronic or hydraulic systems required
  • Can be paired with an arrow guide sign - multi-purpose functionality
Ultra-Lightweight Foldable Vehicle Security Barrier with Electrostatic Powder Coating for Crash Protection Ultra-Lightweight Foldable Vehicle Security Barrier with Electrostatic Powder Coating for Crash Protection
Working Principle
When a vehicle strikes the barrier, the structure lifts the front wheels, causing them to lose contact with the ground. The impact force is transferred to the ground via the lever principle, with the ground absorbing the primary force. Simultaneously, the rubber plates at the base generate friction against the road surface, forcing the vehicle to decelerate and stop within a short distance. The entire process is purely mechanical - no electronics, hydraulics, or external power required - ensuring reliable operation in all weather conditions.
Ultra-Lightweight Foldable Vehicle Security Barrier with Electrostatic Powder Coating for Crash Protection

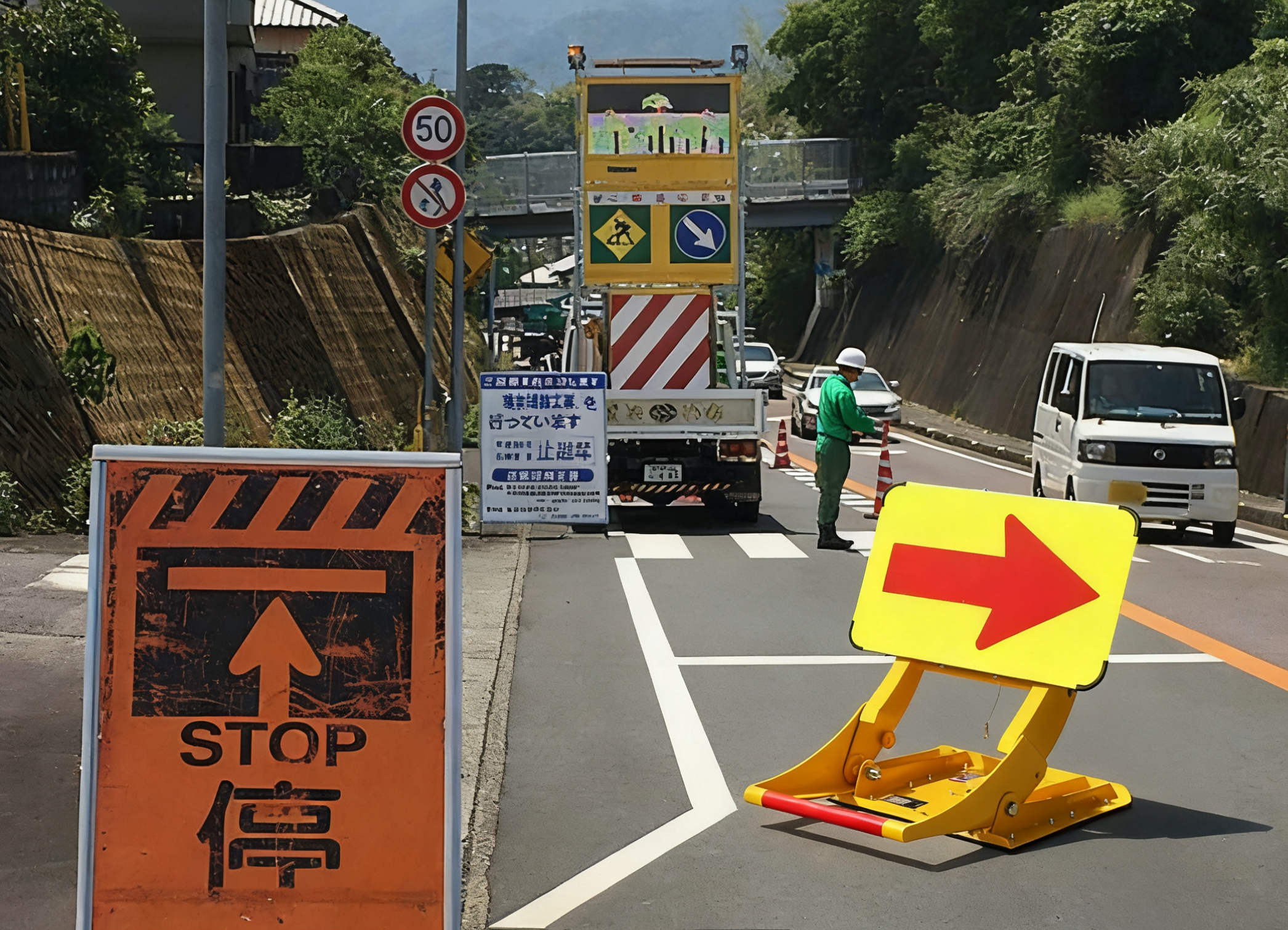

Application Scenarios
  • Temporary municipal road maintenance
  • Residential construction site isolation
  • Manhole cover repairs
  • Pavement marking operations
  • Temporary traffic control
  • Event road closures
Ultra-Lightweight Foldable Vehicle Security Barrier with Electrostatic Powder Coating for Crash Protection Ultra-Lightweight Foldable Vehicle Security Barrier with Electrostatic Powder Coating for Crash Protection
Operating Instructions
Deployment Steps:
  • Remove the barrier from storage and lay it flat on the ground.
  • Place with the rubber plate facing down, grasp both sides with both hands, and pull outward to fully unfold.
  • Position it facing the oncoming traffic direction.
  • Ensure the rubber plate at the base is in full contact with the ground.
Removal Steps:
  • Remove the guide sign (if attached).
  • Clean the surface and the rubber plate at the base.
  • Fold inward from both sides.
  • Store in a dry, ventilated area.
Precautions
Pre-deployment checks: rubber plate facing down and fully contacting the ground, barrier fully unfolded, facing oncoming traffic, placed on flat solid ground.
After impact: Check for personnel safety first, then inspect the barrier for deformation. Severe deformation must be replaced immediately. Do not reuse.
Prohibited Actions: Use on sections exceeding 30 km/h; use in partially unfolded or folded state; use with rubber plate facing upward or placed sideways; continue using after severe deformation; unauthorized modification or repair.
Ultra-Lightweight Foldable Vehicle Security Barrier with Electrostatic Powder Coating for Crash Protection
Optional Configurations
  • Mesh cold-light arrow guide sign (with hook-and-loop tape)
  • Reflective warning strips
  • Custom colors (for bulk orders)
Ultra-Lightweight Foldable Vehicle Security Barrier with Electrostatic Powder Coating for Crash Protection
Frequently Asked Questions
Q1: What is this product?
A lightweight foldable crash barrier used for construction zone isolation and vehicle interception to prevent vehicles from entering work areas.
Q2: What are the core highlights?
13.4kg ultra-lightweight, foldable design, purely mechanical interception, no power required, deployable by one person.
Q3: What is the main material?
Aluminum profile + rubber. The main body is made of high-quality aluminum profiles - lightweight, high-strength, corrosion-resistant, non-combustible, and 100% recyclable.
Q4: What scenarios is it suitable for?
Low-speed urban sections with speed limits of 30 km/h or below, municipal construction, residential work zones, temporary traffic control, and similar applications.
Q5: How does it achieve interception?
Upon impact, it lifts the front wheels of the vehicle, transfers the impact force to the ground through the lever principle, and uses friction between the rubber base plates and the ground to brake, forcing the vehicle to stop within a short distance.
Q6: Why is it a high-quality product?
High-quality aluminum profile materials - high strength and corrosion resistance; electrostatic powder coating - durable finish that does not peel; strict quality control system - 100% inspection before shipment; China's leading manufacturing technology.
Q7: What safety features does it have?
Non-combustible aluminum - will not fuel a fire or produce hazardous debris; purely mechanical structure requires no power, reliable in all weather; electrostatic powder coating is weather-resistant and corrosion-resistant.
Q8: What are the advantages of "Made in China"?
High-quality raw material sourcing, strict quality control systems, competitive pricing, and reliable production and delivery schedules.
Q9: How is it operated and stored?
Deployment: lay flat -> pull open -> position (yellow side facing traffic) -> confirm ground contact - done in two minutes. Storage: fold and place in a vehicle trunk or store in a dry, ventilated area.
Q10: What vehicles and speed limits is it suitable for?
Suitable for small vehicles (sedans, SUVs, etc.) on road sections with speed limits of 30 km/h or below. Not suitable for highways or routes with heavy vehicles.
