132kg Galvanized Rustproof Modular Vehicle Barriers
132kg Galvanized Rustproof Modular Vehicle Barriers
132kg Galvanized Rustproof Modular Vehicle Barriers
132kg Galvanized Rustproof Modular Vehicle Barriers
132kg Galvanized Rustproof Modular Vehicle Barriers
132kg Galvanized Rustproof Modular Vehicle Barriers
132kg Galvanized Rustproof Modular Vehicle Barriers
132kg Galvanized Rustproof Modular Vehicle Barriers
Specifications
Brand Name :
RMHs
Model Number :
Tomaruzo
Place of Origin :
China
MOQ :
100PCS
Price :
USD3000~3300PCS
Payment Terms :
T/T,L/C
Supply Ability :
50PCS per 1 month
Delivery Time :
30
Packaging Details :
wooden box 35 sets of 40-inch containers
Material :
Aluminum
Weight :
132kg
Size :
L1800*W800*H1200mm
Color :
Yellow/Orange
Use :
Place behind the construction section
Surface treatment process :
Electrostatic spraying
Description

Anti-Ram Vehicle Barriers, Vehicle Barrier Perimeter Security Products Better Barriers


Product Overview

This product is a large vehicle crash cushion designed for high-risk work zones such as highways and expressways. It can be deployed directly behind work vehicles or placed independently at the end of a closed lane. In the event of a vehicle incursion into the work area due to driver error, it can force the errant vehicle to decelerate and stop in a controlled and efficient manner, creating a critical "life-saving buffer zone" for personnel ahead and ensuring a safe working environment.


Detailed Technical Specifications & Structure



Item Specifications & Description
Product Model RMHs TOMARUZO
Core Function Absorbs high-speed impact energy, stops large vehicles in a controlled manner, and protects personnel in work zones.
Operation Mode Sold as a set of 2 units. Connected in series by 2 high-strength stainless steel connecting rods to form a robust barrier.
Application Scope Highway maintenance, municipal road construction, bridge/tunnel operations, major accident scene isolation for emergency response, protection for temporary lane closure work zones.
Main Materials 1. Aluminum (Patented Energy-Absorbing Material): High plasticity, efficiently absorbs energy through controlled deformation; environmentally friendly and recyclable; low spark risk upon impact, reducing potential for secondary fires.
2. Rubber Base Plate: Increases friction with the road surface to dissipate kinetic energy; features anti-slip and flame-retardant properties.
Cushioning System 1. Primary Energy Absorption Zone: Large aluminum absorption section providing initial cushioning.
2. Base Shock Absorbers: Equipped with 8 specialized shock-absorbing units capable of absorbing impact forces from frontal collisions at angles up to 25°.
Surface Finish Anti-rust Plastic Spray Coating (High-visibility Engineering Yellow/Orange): Rust-proof, weather-resistant, highly conspicuous, suitable for all-weather outdoor use.
Mobility & Installation Mobility: Fitted with rubber wheels and specialized anti-slip rubber plates at the base for easy maneuvering and stable parking.
Installation: Modular design, disassembles into 8 parts. Two people can quickly assemble or disassemble it on-site, facilitating transport and storage.
Safety & Warning Can be equipped with an LED Arrow Board on top to enhance long-range visibility and warning, especially during low-light conditions. Core energy-absorbing material is patented; product has passed overseas professional safety tests.

Physical Parameters

  • Weight (Single Unit): 132 kg

  • Dimensions (Single Unit): Length 1800 × Width 800 × Height 1200 mm (L1800W800H1200mm)

  • Color: Yellow / Orange

Usage Method

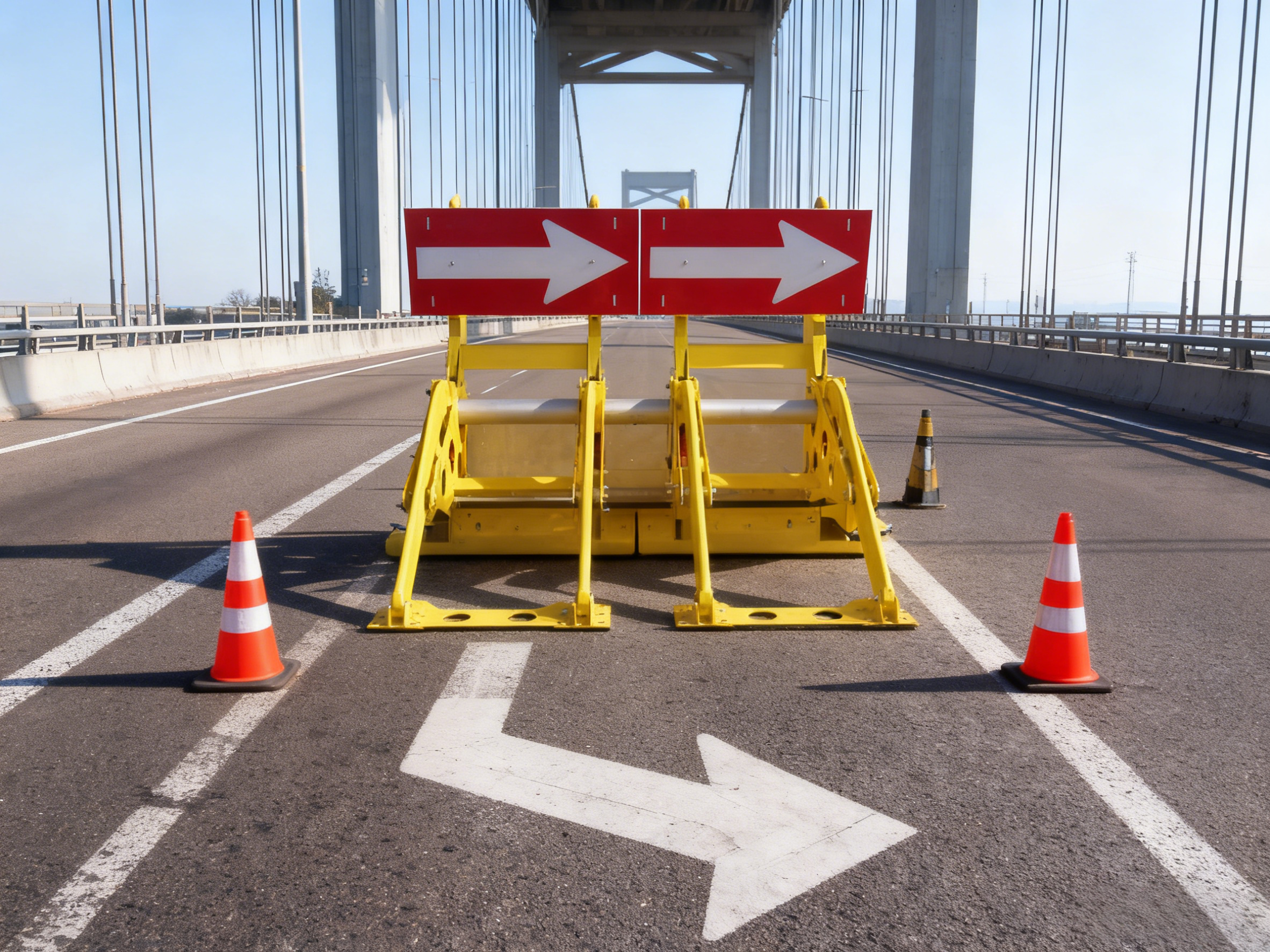

Place it on the roadway behind the work zone to serve as a physical buffer barrier. It can be used independently or paired with an LED arrow board to enhance advance warning effectiveness.

The design is reasonable and ingenious, and the designed rubber wheel is easy to move.


Core Advantages

  • Verified Interception Performance: Tested by the Japan Automobile Research Institute, it can shorten the braking distance of a 10-ton truck (traveling at 80 km/h) by nearly 5 meters, demonstrating significant interception effectiveness.

  • Patented Energy Absorption, Safe & Reliable: The core energy-absorbing components utilize patented aluminum alloy material and have passed rigorous overseas safety tests.

  • Efficient Energy Dissipation Principle: Utilizes lever principles and momentum transfer mechanisms to rapidly lift the front wheels, channel kinetic energy downwards, and achieve high-efficiency friction braking via the rubber base plate contacting the road surface.

  • Secondary Risk Mitigation: The aluminum alloy material is non-flammable, effectively reducing the risk of secondary fires caused by sparks upon impact. The rubber base plate also possesses flame-retardant properties.

  • Modular Design, Flexible Deployment: Can be disassembled into 8 parts, allowing two people to quickly assemble or disassemble it on-site. Equipped with wheels at the bottom for easy mobility.







RMHs TOMARUZO Crash Cushion Stopping Principle

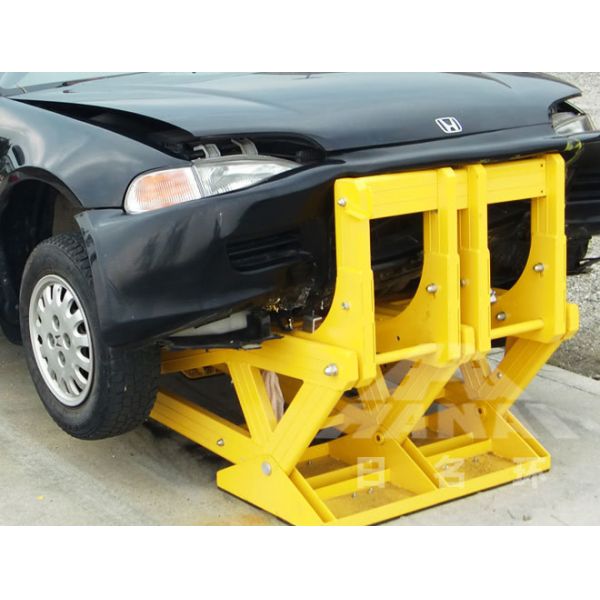

When a vehicle collides with the device, it uses the lever principle to lift the vehicle's front wheels off the ground. At the same time, it absorbs impact energy through friction between the rubber base and the road surface combined with the controlled deformation and collapse of the aluminum material, forcing the vehicle to stop safely within a short distance.

132kg Galvanized Rustproof Modular Vehicle Barriers


Purchasing Guide



Key Point Explanation
Weight 132kg: Heavy enough for stability, but equipped with wheels so one person can move it easily.
Material Aluminum + Rubber: Aluminum absorbs impact energy effectively and won't catch fire upon collision; rubber base increases friction to help with braking.
Rust Protection Galvanized + Powder Coated: Double rust protection ensures 5-10 years of outdoor use, ideal for rainy or humid areas.
Structure Modular (Detachable) : One set splits into two units, can be disassembled into 8 parts. Transport by pickup truck, install with two people—very flexible.
Usage Method Sold as a set of 2 units: Must be used as a pair, connected by steel tubes to form a complete barrier wall.
Warning Yellow/Orange: Color must be highly visible. Top should accommodate LED arrow boards for nighttime visibility.

132kg Galvanized Rustproof Modular Vehicle Barriers

Q&A

Q1: How does this thing actually stop a large truck?
A: When a vehicle hits it, the device lifts the front wheels using the lever principle, raising the front of the truck. At the same time, the rubber base friction and aluminum material deformation absorb the energy, stopping the vehicle within a short distance.

Q2: It weighs 132kg—how do I move it to the site?
A: Even though it's heavy, it has wheels on the bottom so you can just push it. Plus, it's detachable—you can break it down into pieces, transport them, and reassemble on-site with just two people.

Q3: Why buy "galvanized + powder coated"? Isn't regular paint enough?
A: Paint peels off over time, and rust makes it unsafe. Galvanizing protects from the inside out, and powder coating adds an extra layer of armor. This way, the equipment won't rust even after years of highway use.

Q4: Won't aluminum break easily? Is it stronger than steel?
A: It's supposed to break (deform). Aluminum's advantage is absorbing energy through deformation to protect people behind it. Steel is hard, but it can cause rebound or sparks upon impact, which is actually less safe.

Q5: Can I use it right after buying?
A: Yes. One set includes two main units and connecting steel tubes. Just connect them on-site with the tubes and place them behind the work zone. For nighttime use, you can add an LED arrow board.





















"品牌:RMHs 结构:可拆分 材质:铝材,橡胶 型号:TOMARUZO 表面工艺:喷塑防锈处理 适用范围:高速公路养护,市政道路施工,桥梁隧道作业,重大事故现场抢险隔离,临时封道作业区防护 颜色:黄色/橘黄色 功能:强制停止误入施工区域的大型车辆 使用方式:2台为一套 重量:132kg 尺寸；L1800*W800*H1200mm 使用方法:放置于施工区域后方,可搭配导光箭头板使用" "产品概述 本产品是一款专为高速公路,快速路等高风险作业区设计的大型车辆防撞缓冲装置.它可直接部署于于作业车辆或独立放置于封闭车道末端,当有车辆因驾驶员失误闯入施工区域时,能以可控,高效的方式迫使撞击车辆减速停止,为前方作业人员构筑一道至关重要的“生命缓冲带”,确保其拥有安全的工作环境." 详细技术规格与结构 项目 规格与说明 产品名称 大型车辆防撞缓冲装置 核心功能 吸收高速碰撞能量,以可控方式迫使车辆停止,保护施工区人员安全. 结构组成 一套包含两台主缓冲体,由2根高强度不锈钢连接管串联,结构极其坚固. 主体材质 "1.专利铝合金吸能材料: - 可塑性强:能通过有序变形高效吸收能量. - 可持续性:环保,可回收. - 阻燃性:碰撞时不易产生火花,降低二次火灾风险. 2.橡胶底板:与地面摩擦,消散动能" 缓冲系统 "1. 主吸能区:专利铝材构成的大型吸收部,提供初级缓冲. 2. 底部减震器:配备8个专业减震装置,可吸收车辆正面最高25°角撞击产生的冲击力." 外观与警示 高亮工程黄静电喷涂:防锈,耐候,醒目.顶部可加装LED安全箭头板,提升全天候警示效果. 移动与安装 "移动:底部配备橡胶车轮及特制防滑橡胶板,移动轻松,停放稳固. 安装:模块化设计,可拆卸为8个部分,仅需2人即可完成现场快速组装与拆卸,运输收纳方便." 安全认证 核心吸能材料获得专利,产品在海外通过专业安全测试. "核心优势 拦截性能已验证:经日本汽车研究所实测,可使10吨卡车(80km/h)制动距离缩短近5米,拦截效果显著. 专利吸能,安全可靠:核心吸能部件采用获专利认证的铝合金材料,并通过海外严格安全测试. 高效耗能原理:运用杠杆原理与动量转移机制,快速抬升前轮,引导动能向下,高效摩擦制动. 抗二次风险:铝合金材质不易燃,有效减少碰撞后因火花引发的二次燃烧风险. 模块化设计,部署灵活:可拆卸为8部分,2人即可快速安装/拆卸,底部带轮,移动便捷." 产品的规格

翻译

停车原理

中文

简单

翻译

结合High quality 132kg Galvanized Rustproof Modular Vehicle Barriers from China, China's leading product market rustproof modular vehicle barriers product, with strict quality control rustproof car park barriers factories, producing high quality 132kg galvanized car park barriers Products.,写产品的采购指南和简单知识问答,中文

简单

翻译
