664mm Width Ral 1023 Modular Vehicle Barriers
664mm Width Ral 1023 Modular Vehicle Barriers
Specifications
Brand Name :
RMHs
Model Number :
MINI TOMARUKUN
Certification :
Iso9001
Place of Origin :
CHINA
MOQ :
50 units
Price :
USD 12,964/unit
Payment Terms :
T/T
Supply Ability :
500 units per month
Delivery Time :
30
Packaging Details :
wooden box 360pcs 40-inch containers
Material :
Aluminum
Folding Size :
L1100*W664*H200
Unfold Size :
L1040*W664*H894
Weight :
20kg
Color :
Yellow /Orange
Applicable models :
Municipal Road
Description
664mm Width RAL 1023 Modular Vehicle Barriers
Mobile Guardrail for Community Construction - Mini Size Vehicle Stop & Direction Guide

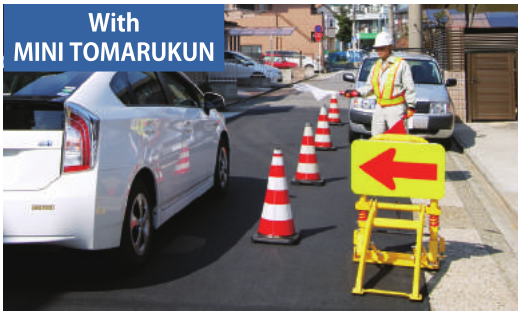

The Mobile Vehicle Barrier (Mini) is specifically designed for work zone applications. Positioned at the periphery of construction sites, it effectively stops vehicles from accidentally entering work areas, ensuring the safety of construction personnel and drivers.

664mm Width Ral 1023 Modular Vehicle Barriers

Constructed from eco-friendly, recyclable aluminum alloy, this barrier offers non-flammable properties that prevent secondary combustion from sparks, providing enhanced protection for drivers and workers.

Lightweight & Easy Operation

The Mobile Vehicle Barrier (Mini) features aluminum profile construction with auxiliary wheels, making it lightweight and easy to maneuver. A single operator can install, disassemble, and store the unit, reducing labor intensity and construction costs.

664mm Width Ral 1023 Modular Vehicle Barriers 664mm Width Ral 1023 Modular Vehicle Barriers

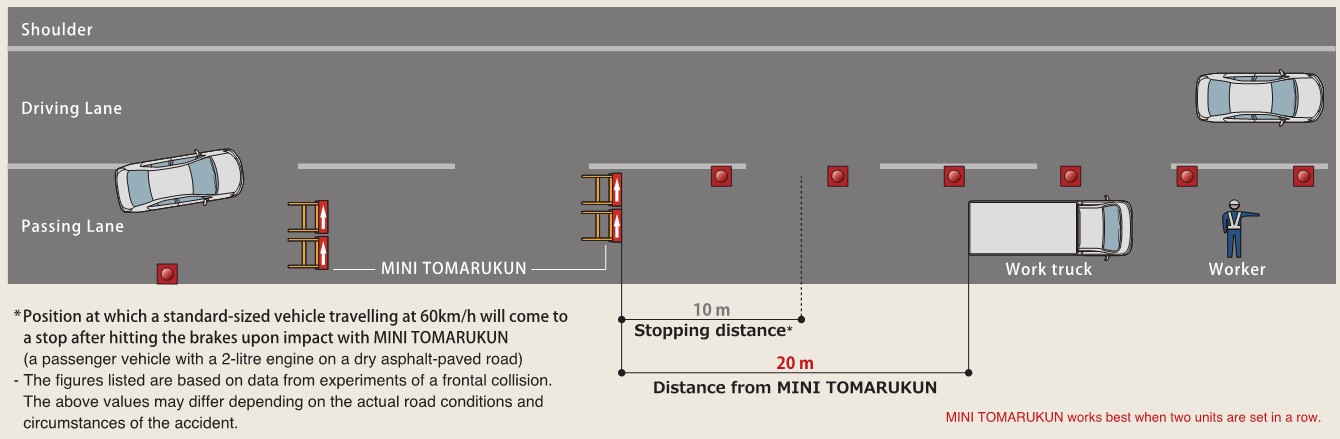

Impact Test Results from Japan Automotive Research Institute
Rated Speed Without Mobile Vehicle Barrier With One Unit Mobile Vehicle Barrier
60km/h 19.5m 12.9m
40km/h 9.6m 8.1m

Test data demonstrates that when deployed in road maintenance sections, this barrier significantly reduces vehicle stopping distances. At 60km/h, the braking distance is shortened by nearly 7 meters, potentially saving the lives of construction workers.

664mm Width Ral 1023 Modular Vehicle Barriers
LED Arrow Board Compatibility

Our customized LED arrow board can be mounted on the mobile guardrail to match its dimensions. Simply place the arrow board at the handle bend and secure it using the pre-drilled holes. This provides appropriate viewing height and clear nighttime warnings with LED illumination.

664mm Width Ral 1023 Modular Vehicle Barriers

The arrow board features three lighting modes:

  • Continuous lighting
  • Tail-to-arrow pattern
  • Flashing mode
664mm Width Ral 1023 Modular Vehicle Barriers
Product Advantages Comparison
Comparison Item RMHs Mini Parking Barrier Traditional Plastic Cone Heavy Concrete Barrier
Core Function Both warns and stops vehicles Warning only, gets knocked over on impact Rigid blocking only, can easily damage vehicles
Portability Best: Wheels, foldable, operable by one person Lightweight but covers small area Worst: Requires machinery to move
Storage & Transport Extremely space-efficient: Only 20cm thick when folded, fits in car Fairly space-efficient: Stackable Extremely space-consuming: Essentially immovable
Primary Use Case Temporary projects requiring real protection (roadwork) Pure guidance/warning (event queues) Permanent, fixed isolation (fixed perimeter walls)
664mm Width Ral 1023 Modular Vehicle Barriers
Frequently Asked Questions
Q: What is this mainly used for?
A: It is placed in front of temporary work zones. Its bright color warns drivers, and if a vehicle accidentally intrudes, it can buffer and stop the vehicle to protect workers and equipment.
Q: Can one person use it?
A: Yes. It has wheels at the bottom, weighs 20 kg, can be moved like a cart, and is foldable—all operable by one person.
Q: How do you store it after use?

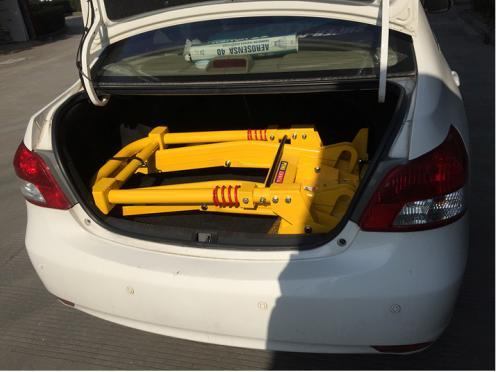

A: Fold it up. It becomes very thin (about 20 cm thick), can be stored upright, or easily loaded into an ordinary car's trunk for transport.
Q: Is it afraid of rain and rust?
A: No. It is made of aluminum alloy with outdoor anti-rust coating, specifically designed for outdoor use.
Q: What is the most important thing to note when purchasing?
A: The three most critical things:
  • Get the report: Ask the manufacturer for the crash test report
  • Check sizes: Measure to ensure the deployed size is sufficient and the folded size fits in your vehicle
  • Ask about warranty: Clarify the warranty period and the procedure if it gets damaged in an impact
