Specifications
Brand Name :
RMHs
Model Number :
Tomaruzo
Place of Origin :
China
MOQ :
100PCS
Price :
USD3000~3300PCS
Supply Ability :
50PCS per 1 month
Delivery Time :
30
Packaging Details :
wooden box 35 sets of 40-inch containers
Material :
Aluminum
Size :
L1800*W800*H1200mm
Weight :
132kg
Color :
Yellow/Orange
Use :
Place behind the construction section
Structure :
With wheels
Description

Mobile Vehicle Barrier System Mobile Vehicle Barricades Aluminum Road safety vehicle stopper


This Mobile Vehicle Barrier System can be placed in construction areas or restricted areas where vehicles are traveling at high speeds. Setting the device in front of or outside the work area can remind the driver of the road conditions ahead, and at the same time, it can effectively prevent vehicles from entering and ensure the safety of personnel in the work area.

Parameters



Item Specification Notes
Dimensions L1800 × W800 × H1200 mm Per unit
Weight 132 kg Per unit
Color Yellow / Orange High-visibility engineering colors, optional
Configuration Sold as a set of 2 units Used in combination, connected in series by 2 high-strength stainless steel connecting pipes
Main Materials Aluminum, Rubber Main body made of patented aluminum alloy, base plate made of wear-resistant rubber
Surface Finish Plastic-sprayed anti-rust treatment Electrostatic spraying, weather-resistant and rust-proof

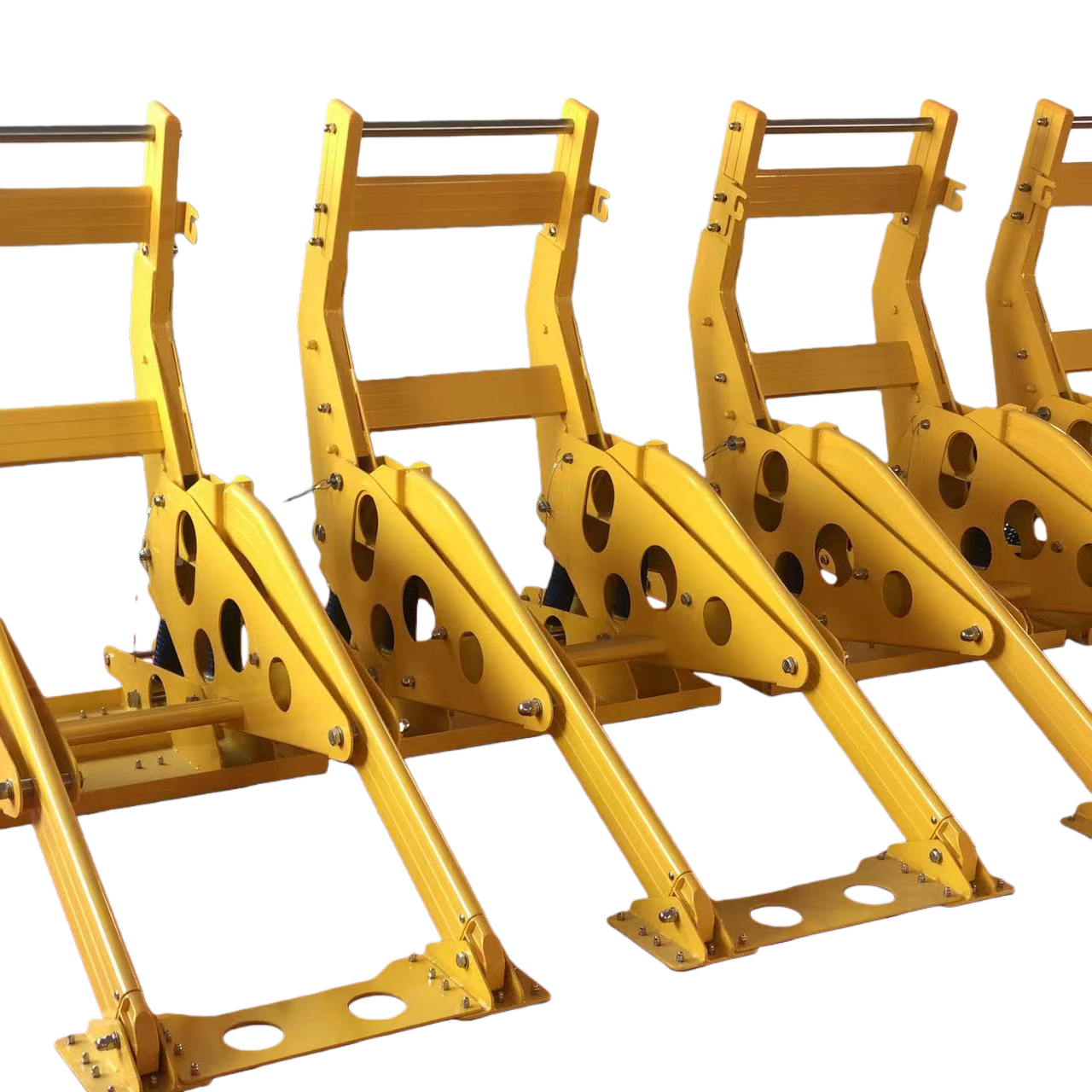

Tomaruzo 1800*800*1200mm Mobile Vehicle Barrier

The product is built-in exclusive honeycomb aluminum material, which can absorb impact force through deformation.

The exclusive honeycomb aluminum material.


Comparative advantage

Comparison Dimension RMHs TOMARUZO (Recommended Product) Standard Foam/Plastic Cushions Traditional Water/Sand Barriers or Jersey Barriers
Core Interception Principle Leverage + Energy Absorption: Lifts the vehicle's wheels, directs kinetic energy downward, forcing a stop Passive Compression: Relies mainly on material deformation for energy absorption, easily knocked away Rigid Blocking: No energy absorption capacity, high risk of vehicle damage and fatalities
Large Vehicle Interception Effectiveness Verified: 10-ton truck @ 80 km/h, braking distance reduced by nearly 5 meters Effective only for small vehicles; prone to disintegration under impact from large vehicles Almost ineffective, may even cause vehicle rollover or secondary injuries
Secondary Disaster Prevention Flame-Retardant Aluminum Alloy: No sparks upon impact, reduces risk of fuel fires Flammable: Some foams or plastics can generate sparks from friction during impact No Special Treatment: Sand barriers are flame-retardant but lack energy absorption
Installation & Deployment Modular Design: 2 people can disassemble into 8 parts; equipped with wheels for movement Usually integrated, difficult to transport Requires individual filling with water or sand; long preparation time, high labor intensity
Weather Resistance & Lifespan Plastic-Sprayed Rust Prevention: Aluminum alloy + plastic spray, strong outdoor weather resistance, reusable Plastics/foams are prone to aging and embrittlement; performance degrades after UV exposure Water barriers tip over easily and age; sand barriers are cumbersome and not easily recyclable, often single-use
Warning Effectiveness Top can be equipped with LED arrow boards; extremely high visibility Relies solely on reflective film; limited effectiveness at night or in rainy/foggy weather Relies solely on reflective film, which is easily contaminated and covered by dust

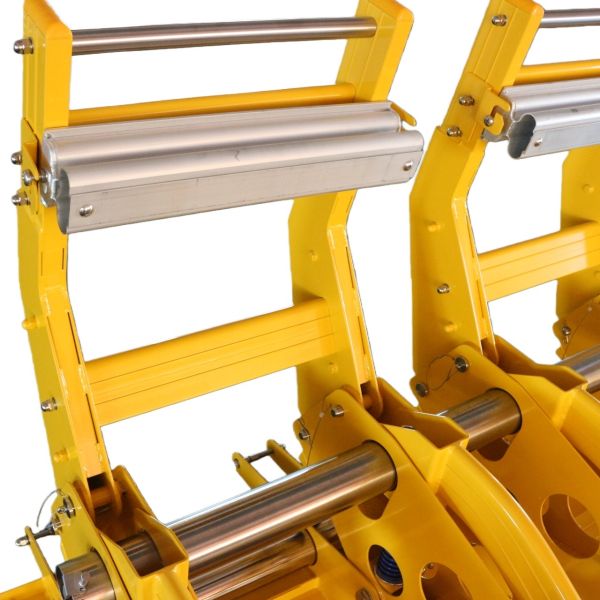

Tomaruzo 1800*800*1200mm Mobile Vehicle Barrier

Stopping Principle

When a vehicle collides with the TOMARUZO II, the arrow board is pushed in direction A. Using the lever principle, the four extended legs of the device turn upward to lift the front wheels of the vehicle, assisting in bringing it to a stop. Simultaneously, the impact force is transmitted to the rubber base, and the friction between the rubber and the ground helps stop the vehicle.

The eight shock absorbers absorb impact from vehicles entering at an angle of up to 25°. The device utilizes non-flammable materials to reduce splashing and secondary combustion, protecting passenger safety.

Crash testing at the Japan Automobile Research Institute demonstrated that when a 10-ton truck crashed at 80 km/h, the braking distance was shortened by nearly 5 meters.


Tomaruzo 1800*800*1200mm Mobile Vehicle Barrier

Q&A

Q1: What is this product used for?

A: It is a large vehicle crash attenuation device. It is mainly placed behind construction zones on expressways. If a driver accidentally enters the construction area, it can absorb impact and forcibly stop the out-of-control large truck, protecting the safety of construction workers ahead.

Q2: How is it different from plastic water barriers on the roadside?

A: The principle is completely different.

  • Water barriers are static obstacles; they get knocked away upon impact by a large truck and are essentially useless.

  • TOMARUZO does not "rigidly block." Instead, it uses the lever principle. Upon impact, it lifts the vehicle's wheels, directing the impact force to the ground for friction, using the vehicle's own weight to stop it. It has been verified through actual testing by the Japan Automobile Research Institute with a 10-ton truck impacting at 80 km/h.

Q3: Can it really stop a large truck?

A: Yes. According to authoritative test data, when a 10-ton truck impacts at 80 km/h, it can reduce the braking distance by nearly 5 meters. These 5 meters at an accident scene can mean the difference between life and death, effectively preventing the errant vehicle from hitting workers.

Q4: Will it catch fire after a crash?

A: The risk of fire is extremely low. Its core material is a patented aluminum alloy, which is flame-retardant and resists sparking upon impact. Compared to standard steel or some plastics, it effectively reduces the risk of secondary fires caused by fuel leaks.

Q5: Is this product heavy? Is it easy to transport?

A: Although a single unit weighs 132kg, it features a modular design.

  • The entire system can be disassembled into 8 small components.

  • On-site assembly requires only 2 people, with no need for heavy machinery.

  • It is also equipped with rubber wheels at the bottom, making it easy to move short distances on the road.

Q6: How many units are in one set? How is it used?

A: One set includes 2 main buffer bodies. When in use, they need to be connected in series using 2 high-strength stainless steel connecting pipes and placed at the rear of the construction area. The top can also be equipped with an LED guide arrow board, ensuring high visibility even at night or in rainy/foggy weather.

Q7: Can it withstand sun and rain? How long does it last?

A: Its surface features a plastic-sprayed anti-rust treatment, making it highly weather-resistant and not prone to rust. The main body is made of aluminum alloy, which is also corrosion-resistant. As long as it is not involved in a severe impact accident, it can be reused for many years, making it a highly durable safety device.
