Covenient 4000w Single Cylinder 4 Stroke Gasoline Engine 3600rpm
Covenient 4000w Single Cylinder 4 Stroke Gasoline Engine 3600rpm
Covenient 4000w Single Cylinder 4 Stroke Gasoline Engine 3600rpm
Covenient 4000w Single Cylinder 4 Stroke Gasoline Engine 3600rpm
Covenient 4000w Single Cylinder 4 Stroke Gasoline Engine 3600rpm
Covenient 4000w Single Cylinder 4 Stroke Gasoline Engine 3600rpm
Specifications
Brand Name :
HUAN NENG
Model Number :
170FP
Certification :
CE, ISO 14001, ISO 9001
Place of Origin :
Chongqing, China
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
T/T, L/C, Western Union, MoneyGram
Supply Ability :
20000 sets per month
Delivery Time :
7-15 work days
Packaging Details :
Carton box packing for each set
product name :
Single Cylinder Four Stroke Forced Air Cooling Gasoline Engine
Power :
4000w
Material :
Copper
Color :
red (as customer's requirements)
Feature :
Covenient
Description

4000w Single Cylinder Four Stroke Gasoline Engine Easily Operate Use

Single Cylinder Four Stroke Gasoline Engine

Application:

Gasoline engines use gasoline as fuel to convert internal energy into kinetic energy. Because gasoline is viscous and evaporates quickly, gasoline can be injected into the cylinder with a gasoline injection system. After compression reaches a certain temperature and pressure, it is ignited with a spark plug to make the gas expand to do work. The gasoline engine is characterized by high speed, simple structure, light weight, low cost, stable operation, and convenient use and maintenance. Gasoline engines are widely used in automobiles, especially small cars.

Features:

1. Strong power, durable and reliable.
2. Unique design of anti vibration and low running temperature prolongs the engine
life.
3. Different types of P.T.O shafts meets various demands.

Technical parameters:

Model 152F/P 154F/P 168FA/P 168FB/P 170F/P
Form Single cylinder, four stroke, forced air cooling
Lgnition mode Contactless transistor electronic ignition
Starting mode Recovery manual start
Fuel consumption (g/kw.h) ≤450 ≤420 ≤395 ≤395 ≤374
Bore/stroke (mm) 52x46 54x38 68x45 68x45 70x45
Piston displacement (ml) 98 87 163 196 215
Maximum power/speed (kw/rpm) 1.15/3600 1.15/3600 3.2/3600 3.8/3600 4.0/3600
Maximum torgue (N.m/rpm) 2.5/2600 3.0/2600 8.8/2600 10.2/2600 12/2600
Net weight (kg) 8.8 10 18 18 18
Dimension[mm](LxWxH) 280x270x345 280x270x345 350x315x335 350x315x335 350x315x335

Model 173F/P 177F/P 182FA/P 188F/P 190F/P
Form Single cylinder, four stroke, forced air cooling
Lgnition mode Contactless transistor electronic ignition
Starting mode Recovery manual start
Fuel consumption (g/kw.h) ≤374 ≤374 ≤374 ≤374 ≤374
Bore/stroke (mm) 52x46 54x38 68x45 68x45 70x45
Piston displacement (ml) 242 270 338 389 420
Maximum power/speed (kw/rpm) 4.2/3600 4.6/3600 6.1/3600 7.2/3600 8.1/3600
Maximum torgue (N.m/rpm) 13/2600 14/2600 19/2600 21/2600 23/2600
Net weight (kg) 25 25 31 31 32
Dimension[mm](LxWxH) 495x430x505 495x430x505 495x430x505 495x430x505 495x430x505

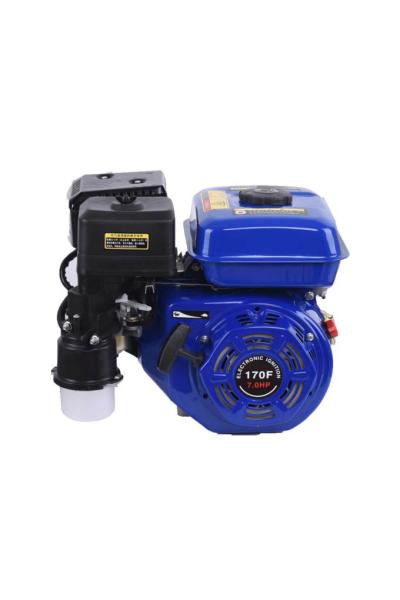

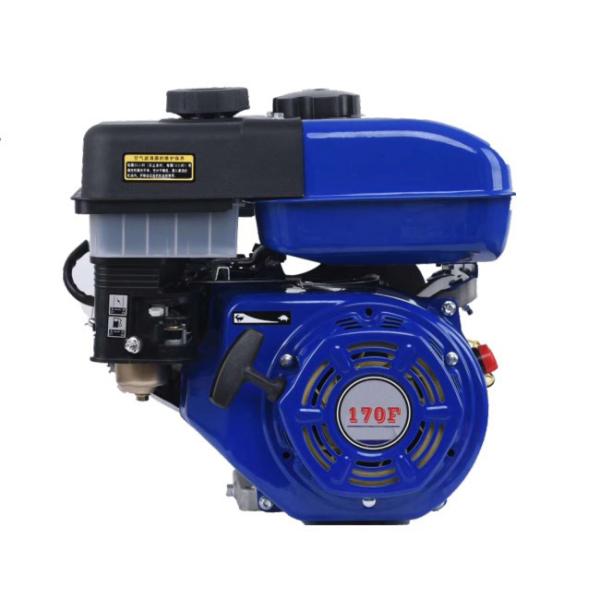

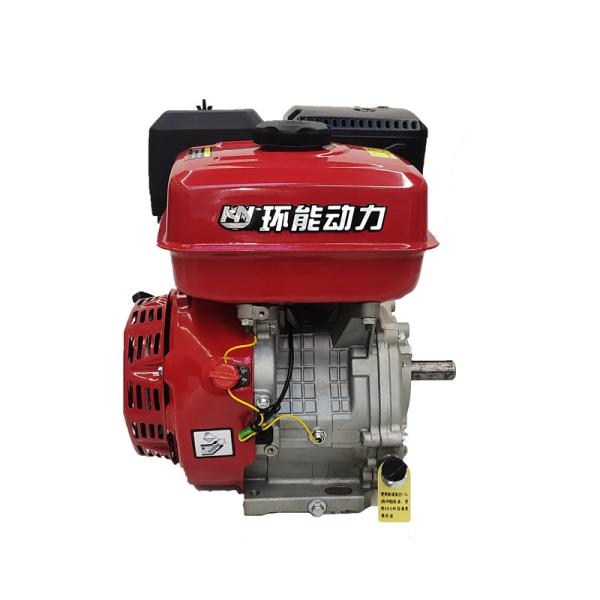

Product pictures:

Covenient 4000w Single Cylinder 4 Stroke Gasoline Engine 3600rpm

Covenient 4000w Single Cylinder 4 Stroke Gasoline Engine 3600rpmCovenient 4000w Single Cylinder 4 Stroke Gasoline Engine 3600rpmCovenient 4000w Single Cylinder 4 Stroke Gasoline Engine 3600rpmCovenient 4000w Single Cylinder 4 Stroke Gasoline Engine 3600rpm
