Contactless Transistor Electronic Ignition 4 Stroke Gasoline Engine OHV
Contactless Transistor Electronic Ignition 4 Stroke Gasoline Engine OHV
Contactless Transistor Electronic Ignition 4 Stroke Gasoline Engine OHV
Contactless Transistor Electronic Ignition 4 Stroke Gasoline Engine OHV
Contactless Transistor Electronic Ignition 4 Stroke Gasoline Engine OHV
Contactless Transistor Electronic Ignition 4 Stroke Gasoline Engine OHV
Specifications
Brand Name :
HUAN NENG
Model Number :
170FP
Certification :
CE, ISO 14001, ISO 9001
Place of Origin :
Chongqing, China
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
T/T, L/C, Western Union, MoneyGram
Supply Ability :
20000 sets per month
Delivery Time :
7-15 work days
Packaging Details :
Carton box packing for each set
product name :
Contactless Transistor Electronic Ignition Gasoline Engine
Feature :
Contactless Transistor Electronic Ignition
Power :
4kw
Material :
bronze
Color :
black(as customer's requirements)
Net weight :
18kg
Voltage :
220V/380V/415V (as customer's requirments)
Description

Contactless Transistor Electronic Ignition Gasoline Engine

Contactless Transistor Electronic Ignition Gasoline Engine

Features:

1. Low running temperature prolongs the generator life.
2. Overhead valve design[OHV].
3. Easy and fast starting, smooth operation and low vibration.
4. Advanced design combustion chamber provide exceptional fuel efficiency and
consistent power.

Technical parameters:

Model 152F/P 154F/P 168FA/P 168FB/P 170F/P
Form Single cylinder, four stroke, forced air cooling
Lgnition mode Contactless transistor electronic ignition
Starting mode Recovery manual start
Fuel consumption (g/kw.h) ≤450 ≤420 ≤395 ≤395 ≤374
Bore/stroke (mm) 52x46 54x38 68x45 68x45 70x45
Piston displacement (ml) 98 87 163 196 215
Maximum power/speed (kw/rpm) 1.15/3600 1.15/3600 3.2/3600 3.8/3600 4.0/3600
Maximum torgue (N.m/rpm) 2.5/2600 3.0/2600 8.8/2600 10.2/2600 12/2600
Net weight (kg) 8.8 10 18 18 18
Dimension[mm](LxWxH) 280x270x345 280x270x345 350x315x335 350x315x335 350x315x335

Model 173F/P 177F/P 182FA/P 188F/P 190F/P
Form Single cylinder, four stroke, forced air cooling
Lgnition mode Contactless transistor electronic ignition
Starting mode Recovery manual start
Fuel consumption (g/kw.h) ≤374 ≤374 ≤374 ≤374 ≤374
Bore/stroke (mm) 52x46 54x38 68x45 68x45 70x45
Piston displacement (ml) 242 270 338 389 420
Maximum power/speed (kw/rpm) 4.2/3600 4.6/3600 6.1/3600 7.2/3600 8.1/3600
Maximum torgue (N.m/rpm) 13/2600 14/2600 19/2600 21/2600 23/2600
Net weight (kg) 25 25 31 31 32
Dimension[mm](LxWxH) 495x430x505 495x430x505 495x430x505 495x430x505 495x430x505

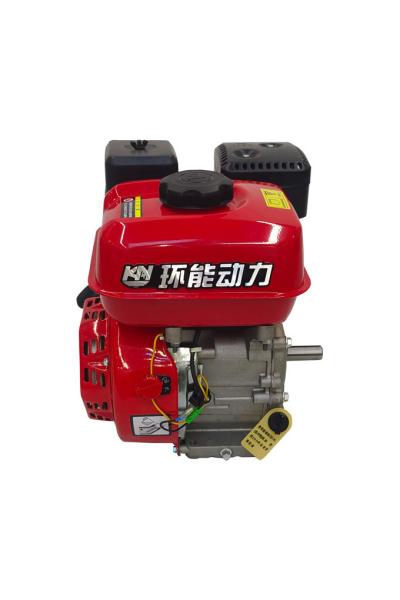

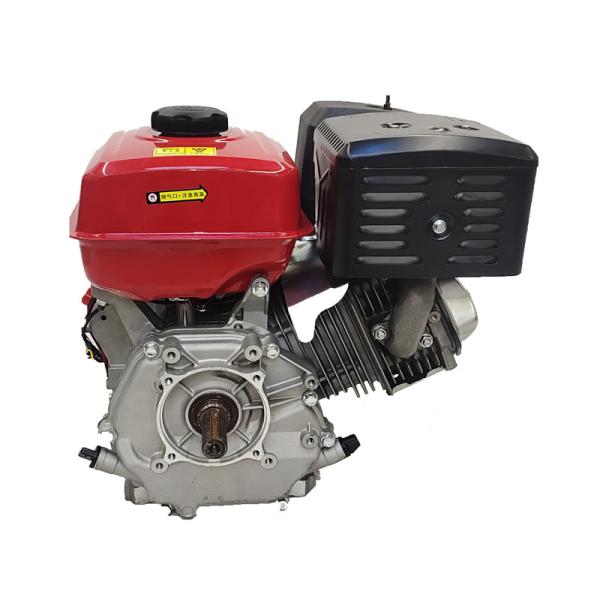

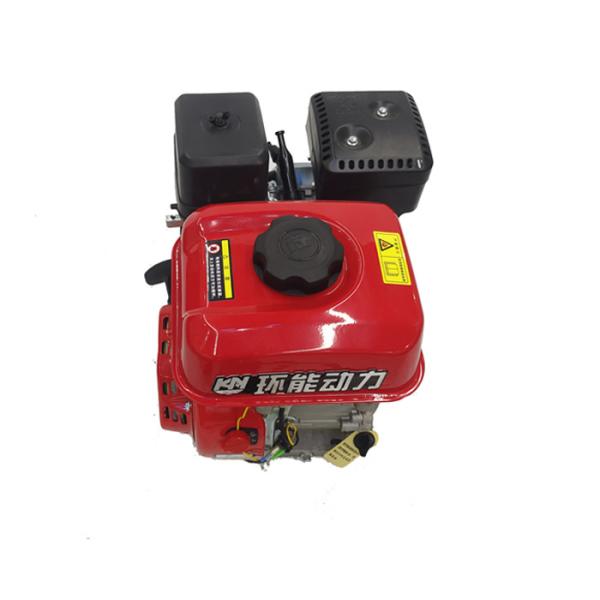

Product pictures:

Contactless Transistor Electronic Ignition 4 Stroke Gasoline Engine OHVContactless Transistor Electronic Ignition 4 Stroke Gasoline Engine OHVContactless Transistor Electronic Ignition 4 Stroke Gasoline Engine OHV

Contactless Transistor Electronic Ignition 4 Stroke Gasoline Engine OHV
