28000g Single Cylinder Small Air Cooled Diesel Engine 173FB
28000g Single Cylinder Small Air Cooled Diesel Engine 173FB
28000g Single Cylinder Small Air Cooled Diesel Engine 173FB
28000g Single Cylinder Small Air Cooled Diesel Engine 173FB
28000g Single Cylinder Small Air Cooled Diesel Engine 173FB
28000g Single Cylinder Small Air Cooled Diesel Engine 173FB
28000g Single Cylinder Small Air Cooled Diesel Engine 173FB
28000g Single Cylinder Small Air Cooled Diesel Engine 173FB
Specifications
Brand Name :
HUAN NENG
Model Number :
173FB
Certification :
CE, ISO 14001, ISO 9001
Place of Origin :
Chongqing, China
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
T/T, L/C, Western Union, MoneyGram
Supply Ability :
20000 sets per month
Delivery Time :
7-15 work days
Packaging Details :
Carton box packing for each set
product name :
Single Cylinder Four Stroke Diesel Engine 173FB
Max power :
4300w
Material :
bronze/copper
Color :
black or (as customer's requirements)
Net weight :
28000g
Voltage :
220V/380V/415V
Description

Single Cylinder Four Stroke Poweful Environmental Diesel Engine 173FB

Single Cylinder Four Stroke Diesel Engine 173FB

Features:

1. Unique transmission technology

The second generation small air-cooled diesel engine adopts a well-designed gear transmission mechanism, which greatly reduces vibration and noise, and its performance is better than that of similar oil recovery engines.

2. Perfect injection technology

The self-developed lightweight injection system can ensure that every drop of fuel is used to the fullest. The high-precision injection pump and direct injection system enable optimal fuel consumption. A good air intake system allows fuel to be completely burned and engine emissions to meet international standards.

Technical parameters:

Model HN173FB HN178F HN186FA
Type Single cylinder, four stroke, air cooled, vertical, direct injection
Combustion system Direct injection
The cylinder diameter x Trip 73x59 78x62 86x72
Displacement (L) 0.247 0.296 0.418
Compression ratio 20:1 20:1 19:1
Rated power/speed (Kw/rpm) 3.2/3000, 3.6/3600 3.7/3000, 4.0/3600 5.8/3000, 6.6/3600
Max power/speed (Hp/rpm) 4.3/3000, 4.8/3600 5.0/3000, 5.5/3600 7.9/3000, 9.0/3600
Rated speed 3000/3600 3000/3600 3000/3600
Start the way F: Manual start, E: electric start
Tank volume (L) 2.5 3.5 5.5
Lubricating oil capacity (L) 0.75 1.1 1.65
Fuel consumption (L/H) ≤1.2 ≤1.41 ≤2.15
Fuel brand Diesel: 0x10(summer), -10x10(winter)
Lubricating oil brand Sae10w30 (above CD level)
Dimensions (LxWxH) (mm) 332x376x415 385x420x450 420x440x495
The net weight (kg)

Manual start: 28

Electric start: 32

Manual start: 33

Electric start: 38

Manual start: 47

Electric start: 53

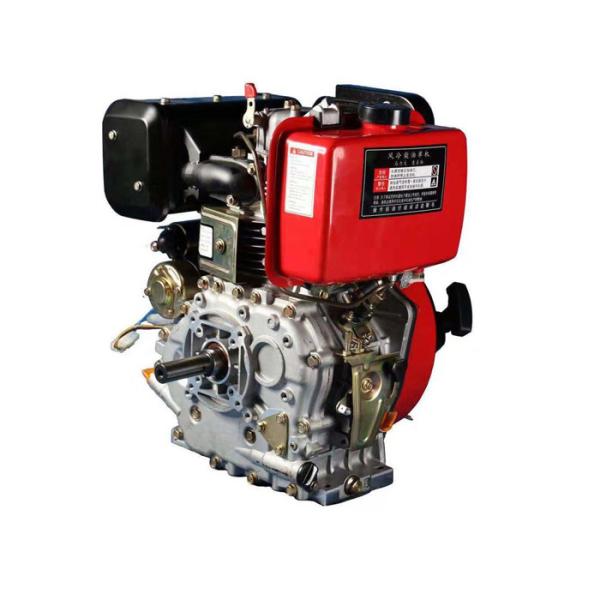

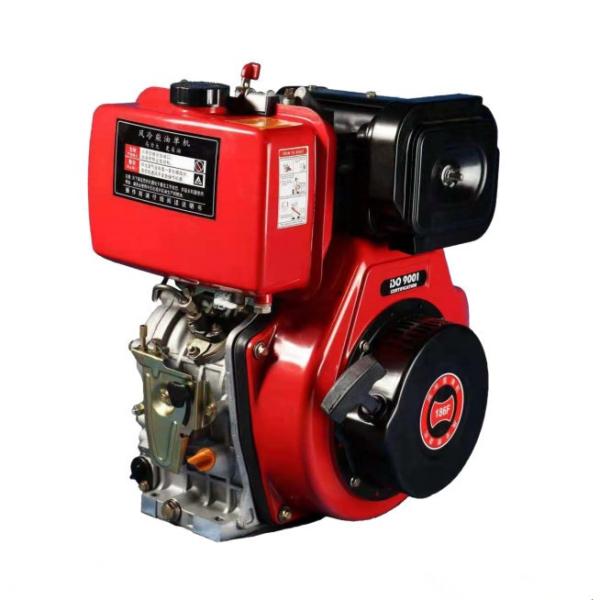

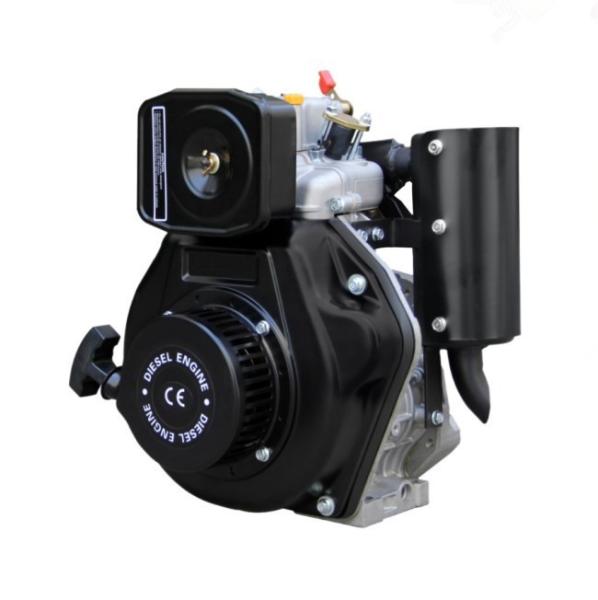

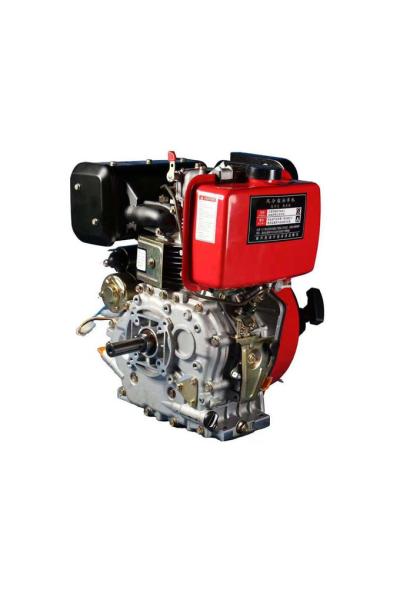

Product pictures:

28000g Single Cylinder Small Air Cooled Diesel Engine 173FB

28000g Single Cylinder Small Air Cooled Diesel Engine 173FB28000g Single Cylinder Small Air Cooled Diesel Engine 173FB28000g Single Cylinder Small Air Cooled Diesel Engine 173FB
