Specifications
Brand Name :
HUAN NENG
Model Number :
HN178F
Certification :
CE,ISO,ISO9001
Place of Origin :
Chongqing, China
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
T/T, L/C, Western Union, MoneyGram
Supply Ability :
20000 sets per month
Delivery Time :
7-15 work days
Packaging Details :
Carton box packing for each set
Cold style :
Air-cooled/
Start :
Electric Start/depends on customer
Warranty :
2000hours / 1 year/ 365days /depends on goods
Dimension(l*w*h) :
385*420*450mm
Rated power :
3.7/4.0 depends on Rotating speed
Description

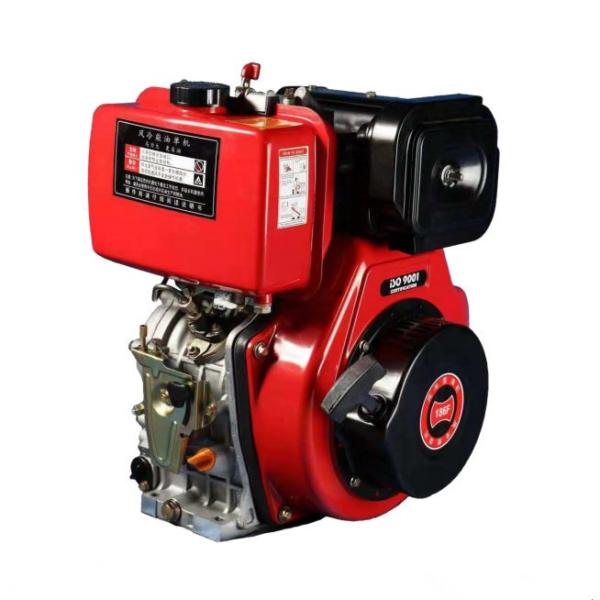

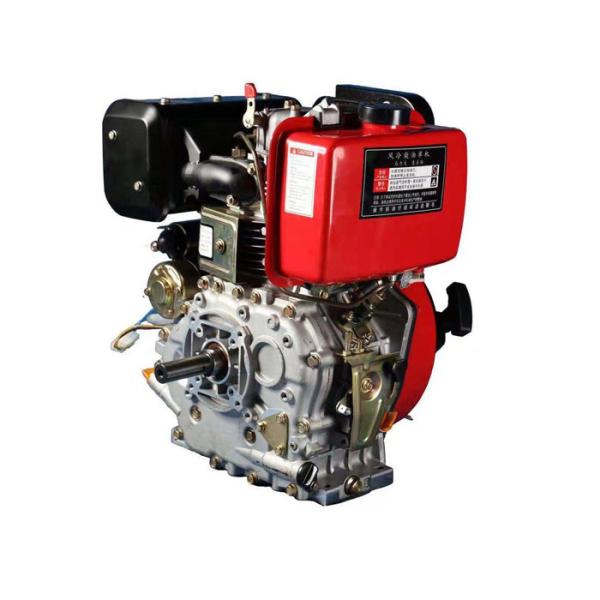

HN178 Four-Stroke Air-Cooling Vertical Direct Injection Diesel Engine

Air-Cooled Diesel Engine

Advantage,

1. Our engines have many patents, high product performance, and cooperation with domestic and foreign institutions of higher learning
2. light design, compact result, high output power in the same volume, can meet a variety of applications

The Details of this diesel engine

型号 Model HN173FB HN178F HN186FA HN188FA HN192F HN195F
类型 type 单紅,四沖程,风冷,立式' 直原式
燃烧系统 Combustion system 直喷
缸径X行程 The cylinder diameter x Trip 73x59 78x62 86x72 88x75 92x75 95x75
排量(L) Displacement 0.247 0.296 0.418 0.45€ 0.499 0.532
压缩比 Compression Ratio 20:1 20:1 19:1 20:1 19:1 19:1
發定功率/转速(Kw/rpm ) Rated Power/speed 3.2/3000,3.6/3600 3.7/3000.4.0/3600 5.8/3000,6.6/3600 6.6/3000.7.5/3600 7.5/3000,8.2/3600 8.5/3000,9.2/3600
最大功率/转速(Hp/rpm ) Max Power/Speed 4.3/3000,4.8/3600 5.0/3000,5.5/3600 7.9/3000,9.0/3600 9.0/3000,10.2/3600 10.2/3000,11.2/3600 10.2/3000,11.2/3600
额定转速 Rated Speed 3000/3600 3000/3600 3000/3600 3000/3600 3000/3600 3000/3600
启动方式 Start The Way F:手启动 E:电启动 F: Manual start e: electric start
油箱容积(L) Tank Volume 2.5 3.5 5.5 5.5 5.5 5.5
润滑油容员(L ) Lubricating Oil Capacity 0.75 1.1 1.65 1.65 1.65 1.65
油耗(L/H) Fuel Consumption w1.2 W1.41 W2.15 w2 w2 w2
燃油牌号 Fuel Brand 柴油:0# (§) , -10# (冬) Diesel: 0 x 10 (summer), - 10 x 10 (winter)
润滑油牌号 Lubncating Oil Brand SAE10W30 (CD级以上) Sae10w30 (above CD level)
外型尺寸LXWXH ( mm ) Dimensions 332x376x415 385x420x450 420x440x495 420x440x495 420x440x495 420x440x495
净車(kg) The Net Weight 手启动:28电启动:32手启动:33电启动:38 Manual start: 28 Manual start: 33 Electric start: 32 Electric start: 38 手启动:47电启动:53手启动:48电启动:53 Manual start: 47 Manual start: 48 Electric start: 53 Electric start: 53 手启动:50电启动:55 Manual start: 50 Electric start: 55 手启动:50电启动:55 Manual start: 50 Electric start: 55
