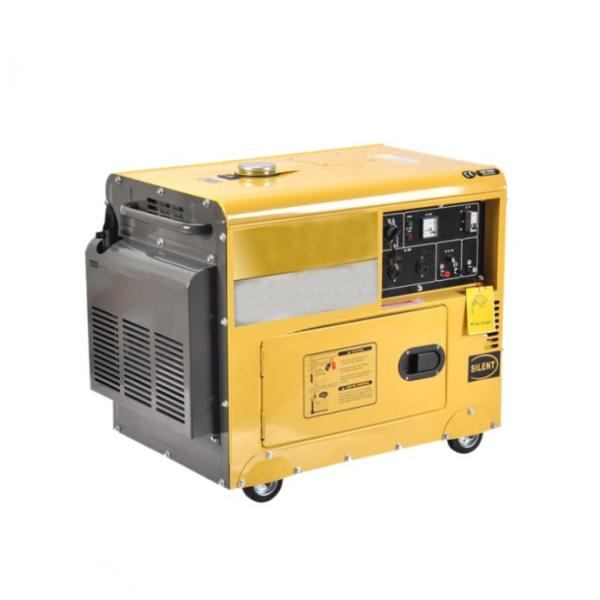

ODM OEM 5.5KW Electric Silent Diesel Generator Single Cylinder Four Stroke
ODM OEM 5.5KW Electric Silent Diesel Generator Single Cylinder Four Stroke
ODM OEM 5.5KW Electric Silent Diesel Generator Single Cylinder Four Stroke
ODM OEM 5.5KW Electric Silent Diesel Generator Single Cylinder Four Stroke
ODM OEM 5.5KW Electric Silent Diesel Generator Single Cylinder Four Stroke
ODM OEM 5.5KW Electric Silent Diesel Generator Single Cylinder Four Stroke
ODM OEM 5.5KW Electric Silent Diesel Generator Single Cylinder Four Stroke
ODM OEM 5.5KW Electric Silent Diesel Generator Single Cylinder Four Stroke
Specifications
Brand Name :
HUAN NENG
Model Number :
BL6500CJ
Certification :
CE, ISO 14001, ISO 9001
Place of Origin :
Chongqing, China
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
T/T, L/C, Western Union, MoneyGram
Supply Ability :
20000 sets per month
Delivery Time :
7-15 work days
Packaging Details :
Carton box packing for each set
Product name :
Silent Diesel Generator
Type :
Single Cylinder, Four Stroke
Color :
Customized
Control panel :
Deepsea / ComAp / Smartgen
Feature :
Spot Supply
Feature2 :
ultra luxury
Description

ODM OEM Spot Supply 5.5KW Silent Electric/Key Start Diesel Generator

5.5KW single-Cylinder Diesel Generator

THE ADVANTAGE :

1. Economical and efficient with precise ignition control, intelligent speed adjustment according to load, and more than fuel savings.

2. Oil protection system, low oil level automatic alarm stop, prevents engine from operating at low oil level, providing greater engine protection.

3.Reliable Relay Logic Circuit Noise Cancelling Enclosure*Brushless Generator

ADD: if you want to know more details, please contact us.

The unit type BL6500CJ BL7500CJ BL10000CJ
Generator Rated speed 5KW 6KW 7KW
Rated frequency 50hz 50hz 50hz
The rated voltage 230V/400V 230V/400V 230V/400V
Power factor 1.0/0.8 1.0/0.8 0.8
Phase velocity 1/3 phase 1/3 phase 1/3 phase
Excitation way Brushless self-propelled magnetic Brushless self-propelled magnetic Brushless self-propelled magnetic
Insulation class F F F
Protection grade IP23 IP23 IP23
engine model 186F 188F 192F
One hour power no data no data no data
Rated speed 1500r/min 1500r/min 1500r/min
Start the way DC12V electric motor starts DC12V electric motor starts DC12V electric motor starts
In the form of Straight line, straight spray Straight line, straight spray Straight line, straight spray
Air inlet Naturally aspirated Naturally aspirated Naturally aspirated
stroke 4 4 4
Number of cylinders 1 1 1
Cylinder diameter, stroke 80/90mm 80/90mm 100/115mm
Speed way mechanical mechanical mechanical
Stop the direction mechanical mechanical mechanical
The crankshaft to counterclockwise counterclockwise counterclockwise
The oil brand CD15/40GB11122 CD15/40GB11122 CD15/40GB11122
Fuel consumption rate 200 g/kw or less. H 200 g/kw or less. H 200 g/kw or less. H
Oil consumption rate 1.5 g/kw or less. H 1.5 g/kw or less. H 1.5 g/kw or less. H
Generator sets Rated power 5KW 6KW 7kw
The rated voltage 230V/400V 230V/400V 400V
Maximum current no data no data no data
Rated frequency 50hz 50hz 50hz
Power factor 1.0/0.8 1.0/0.8 0.8
Cooling way Closed fan water cooled Closed fan water cooled Closed fan water cooled
Fuel tank capacity 1.3 L 1.5 L 1.5 L
The noise 72Dba/7m 72Dba/7m 72Dba/7m
The weight of the 158kg 160KG 165KG
Overall dimensions 1050x610x800mm 1050x610x800mm 1050x610x800mm
