In-Stock Supply 186F Engine 4 Stroke Silent Diesel Generator 5KW
In-Stock Supply 186F Engine 4 Stroke Silent Diesel Generator 5KW
In-Stock Supply 186F Engine 4 Stroke Silent Diesel Generator 5KW
In-Stock Supply 186F Engine 4 Stroke Silent Diesel Generator 5KW
In-Stock Supply 186F Engine 4 Stroke Silent Diesel Generator 5KW
In-Stock Supply 186F Engine 4 Stroke Silent Diesel Generator 5KW
In-Stock Supply 186F Engine 4 Stroke Silent Diesel Generator 5KW
In-Stock Supply 186F Engine 4 Stroke Silent Diesel Generator 5KW
Specifications
Brand Name :
HUAN NENG
Model Number :
KN7000-J
Certification :
CE, ISO 14001, ISO 9001
Place of Origin :
Chongqing, China
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
T/T, L/C, Western Union, MoneyGram
Supply Ability :
20000 sets per month
Delivery Time :
7-15 work days
Packaging Details :
Carton box packing for each set
Product name :
186F Engine 4 Stroke Silent Diesel Generator
Feature :
In-stock supply
Starting system :
electric
Color :
Yellow, red, white etc.
Voltage :
220V/380V/240V (as customer's requirements)
Phase :
three/single
Insulation class :
F grade
Description

Features:

(1) The comprehensive cost of construction and power generation of diesel generator sets is low
(2) The supporting equipment is compact in structure and flexible in installation location (water cooling is only 1/10 of the 34~82L/KW·H steam turbine)

Technical parameters:

Model No. KN7000-J KN8000-J KN9000-J KN10000-J
Engine Model 186F 188F 192F 198F
Type Vertical single cylinder, 4-stroke, air-cooled, direct injection
Bore x Stroke 86x72mm 88x75mm 92x75mm 98x84mm
Displacement 410cc 456cc 499cc 633cc
Ignition system Compression ignition
Starting system Electric
Fuel loss rate ≤281g/kw.h ≤295g/kw.h ≤310g/kw.h ≤310g/kw.h
Fuel type Diesel: 0(summer)-10(winter)-35(severe cold)
Oil capacity 1.3 liters 1.5 liters 1.5 liters 1.65 liters
Generator Rated voltage 230V/400V
Rated frequency 50Hz
Max current 23.9A 28.2A 32.6A 39.1A
Rated output power 5.0KW 6.0KW 7.0KW 8.0KW
Max.output power 5.5KW 6.5KW 7.5KW 9.0KW
Phase Single/Three
Power factor 1.0/0.8 cos
Insulation class F grade
Excitation way AVR voltage automatic adjustment
Accessory configuration Control panel Digital display table
Fuel indicator Yes
Oil alarm Yes
Battery capacity 12V-32AH Maintenance-free battery 12V-36AH Maintenance-free battery
Castor accessory Standard
Fuel capacity 20 liters 20 liters 20 liters 20 liters
Others Weight 158kg 160kg 165kg 216kg
Continous working time 8h
Size (L*W*H)

105*61*80

 102*67*93
Packing Standard carton
Noise 75 dBA/7m 65 dBA/7m

Model No. KN13000-J KN18000-J KN20000-J
Engine Model EV80/292 2V98 2V98
Type V-type twin/in-line twin cylinder, 4-stroke, air-cooled, direct injection
Bore x Stroke

86x72mm/

92x75mm

 98x88mm 98x88mm
Displacement 840cc/997cc 1326cc 1326cc
Ignition system Compression ignition
Starting system Electric
Fuel loss rate ≤270g/kw.h ≤250g/kw.h ≤250g/kw.h
Fuel type Diesel: 0(summer)-10(winter)-35(severe cold)
Oil capacity 1.7/2.6 liters 3.2 liters 3.2 liters
Generator Rated voltage 230V/400V
Rated frequency 50Hz
Rated output power 10KW 15KW 16KW
Max current 47.8A 65.2A 69.5A
Max.output power 11KW 16KW 18KW
Phase Single/Three
Insulation class F grade
Power factor 1.0/0.8 cos
Excitation way AVR voltage automatic adjustment
Accessory configuration Control panel Digital display table
Fuel indicator Yes
Oil protector Yes
Battery capacity 12V-36AH Maintenance-free battery 12V-45AH Maintenance-free battery
Castor accessory Standard
Fuel capacity 25 liters 30 liters
Others Weight 240kg 330kg 340kg
Continous working time 8h

Generator size

(L*W*H)(cm)

 116*66*90

130*80*103
Packing Standard carton
Noise 70 dBA/7m 78 dBA/7m

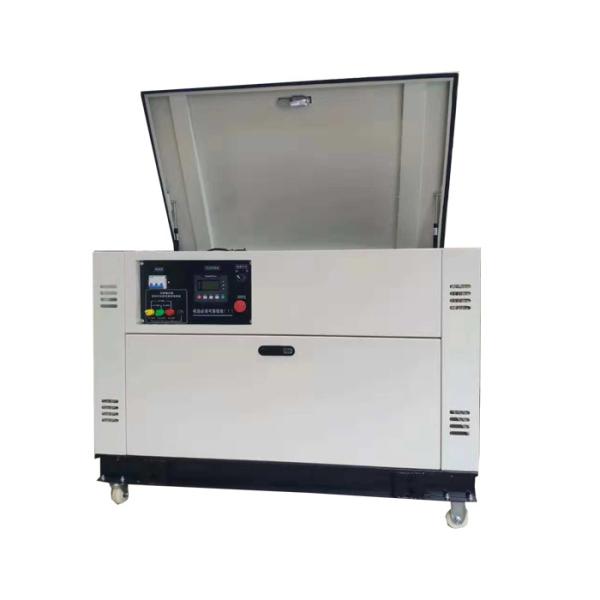

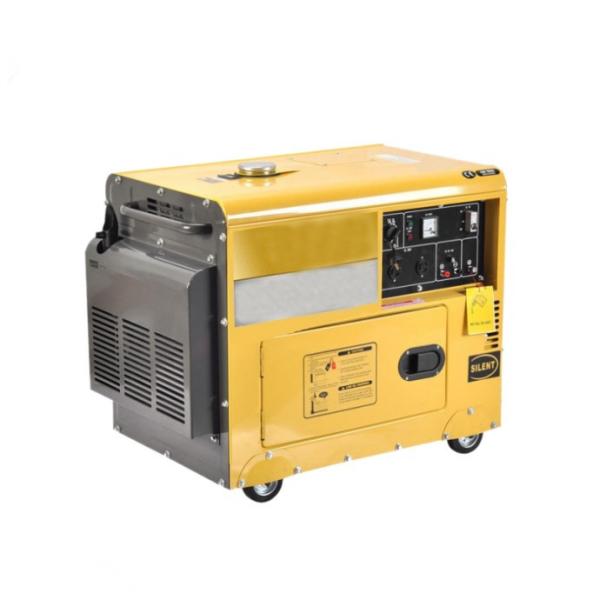

Product pictures:

In-Stock Supply 186F Engine 4 Stroke Silent Diesel Generator 5KW

In-Stock Supply 186F Engine 4 Stroke Silent Diesel Generator 5KW

In-Stock Supply 186F Engine 4 Stroke Silent Diesel Generator 5KWIn-Stock Supply 186F Engine 4 Stroke Silent Diesel Generator 5KWIn-Stock Supply 186F Engine 4 Stroke Silent Diesel Generator 5KWIn-Stock Supply 186F Engine 4 Stroke Silent Diesel Generator 5KWIn-Stock Supply 186F Engine 4 Stroke Silent Diesel Generator 5KWIn-Stock Supply 186F Engine 4 Stroke Silent Diesel Generator 5KWIn-Stock Supply 186F Engine 4 Stroke Silent Diesel Generator 5KWIn-Stock Supply 186F Engine 4 Stroke Silent Diesel Generator 5KW
