High Efficiency Combustion System Silent Diesel Generator 7KW
High Efficiency Combustion System Silent Diesel Generator 7KW
High Efficiency Combustion System Silent Diesel Generator 7KW
High Efficiency Combustion System Silent Diesel Generator 7KW
High Efficiency Combustion System Silent Diesel Generator 7KW
High Efficiency Combustion System Silent Diesel Generator 7KW
High Efficiency Combustion System Silent Diesel Generator 7KW
High Efficiency Combustion System Silent Diesel Generator 7KW
Specifications
Brand Name :
HUAN NENG
Model Number :
KN9000-J
Certification :
CE, ISO 14001, ISO 9001
Place of Origin :
Chongqing, China
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
T/T, L/C, Western Union, MoneyGram
Supply Ability :
20000 sets per month
Delivery Time :
7-15 work days
Packaging Details :
Carton box packing for each set
Product name :
High Efficiency Combustion System Silent Diesel Generator
Feature :
High Efficiency Combustion System
Starting system :
electric start
Warranty time :
12 months
Voltage :
220V/380V/240V (as customer's requirements)
Phase :
three/single
Insulation class :
F grade
Rated power :
7KW
Max power :
7.5KW
Description

High Efficiency Combustion System Silent Diesel Generator

Application:

Diesel generator sets/low-noise diesel generator sets comply with relevant national standards such as GB2820-90. Low-noise diesel generator sets have low-noise workstations, low-noise automatic generator sets, low-noise automotive power stations, and low-noise trailer power stations. Various design types. Low-noise diesel generator sets have the advantages of stable performance, reliable operation, low emissions and low fuel consumption.

Features:

1. Low running noise

High efficiency combustion system ensures complete combustion, a large silencer dampens exhaust noise and engine sounds are contained by a double wall structure and liner absorber.

2. Advanced alternator winding

Waveform distortion is kept at a minimum level with a stable output. The winding design protects the generator from short circuit and provides a stable output while running inductive loads.

3. Low oil alarm system

Before the oil level drops to a dangerous level, the generator will stop automatically. It can only be restarted after the proper oil level is restored.

4. Application of new AVR

The automatic voltage regulator (AVR) not only can smooth the output but also provides protection against overload, avoiding expensive damage.

5. Strong power

All generators are powered with four stroke diesel engines.

Technical parameters:

Model No. KN7000-J KN8000-J KN9000-J KN10000-J
Engine Model 186F 188F 192F 198F
Type Vertical single cylinder, 4-stroke, air-cooled, direct injection
Bore x Stroke 86x72mm 88x75mm 92x75mm 98x84mm
Displacement 410cc 456cc 499cc 633cc
Ignition system Compression ignition
Starting system Electric
Fuel loss rate ≤281g/kw.h ≤295g/kw.h ≤310g/kw.h ≤310g/kw.h
Fuel type Diesel: 0(summer)-10(winter)-35(severe cold)
Oil capacity 1.3 liters 1.5 liters 1.5 liters 1.65 liters
Generator Rated voltage 230V/400V
Rated frequency 50Hz
Max current 23.9A 28.2A 32.6A 39.1A
Rated output power 5.0KW 6.0KW 7.0KW 8.0KW
Max.output power 5.5KW 6.5KW 7.5KW 9.0KW
Phase Single/Three
Power factor 1.0/0.8 cos
Insulation class F grade
Excitation way AVR voltage automatic adjustment
Accessory configuration Control panel Digital display table
Fuel indicator Yes
Oil alarm Yes
Battery capacity 12V-32AH Maintenance-free battery 12V-36AH Maintenance-free battery
Castor accessory Standard
Fuel capacity 20 liters 20 liters 20 liters 20 liters
Others Weight 158kg 160kg 165kg 216kg
Continous working time 8h
Size (L*W*H)

105*61*80

 102*67*93
Packing Standard carton
Noise 75 dBA/7m 65 dBA/7m

Model No. KN13000-J KN18000-J KN20000-J
Engine Model EV80/292 2V98 2V98
Type V-type twin/in-line twin cylinder, 4-stroke, air-cooled, direct injection
Bore x Stroke

86x72mm/

92x75mm

 98x88mm 98x88mm
Displacement 840cc/997cc 1326cc 1326cc
Ignition system Compression ignition
Starting system Electric
Fuel loss rate ≤270g/kw.h ≤250g/kw.h ≤250g/kw.h
Fuel type Diesel: 0(summer)-10(winter)-35(severe cold)
Oil capacity 1.7/2.6 liters 3.2 liters 3.2 liters
Generator Rated voltage 230V/400V
Rated frequency 50Hz
Rated output power 10KW 15KW 16KW
Max current 47.8A 65.2A 69.5A
Max.output power 11KW 16KW 18KW
Phase Single/Three
Insulation class F grade
Power factor 1.0/0.8 cos
Excitation way AVR voltage automatic adjustment
Accessory configuration Control panel Digital display table
Fuel indicator Yes
Oil protector Yes
Battery capacity 12V-36AH Maintenance-free battery 12V-45AH Maintenance-free battery
Castor accessory Standard
Fuel capacity 25 liters 30 liters
Others Weight 240kg 330kg 340kg
Continous working time 8h

Generator size

(L*W*H)(cm)

 116*66*90

130*80*103
Packing Standard carton
Noise 70 dBA/7m 78 dBA/7m

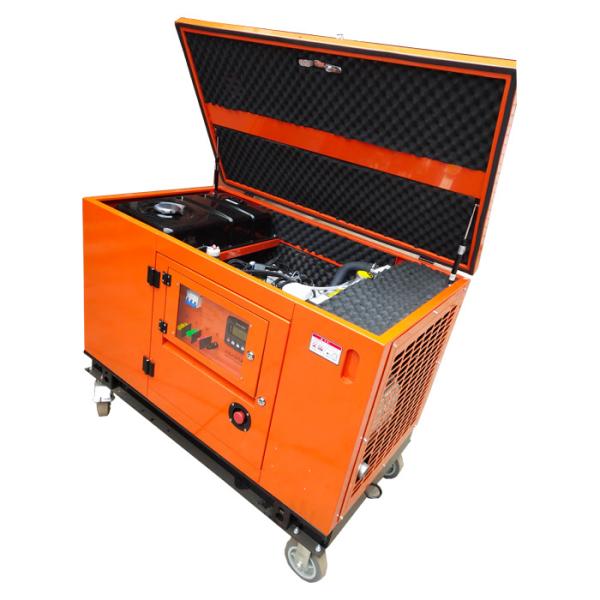

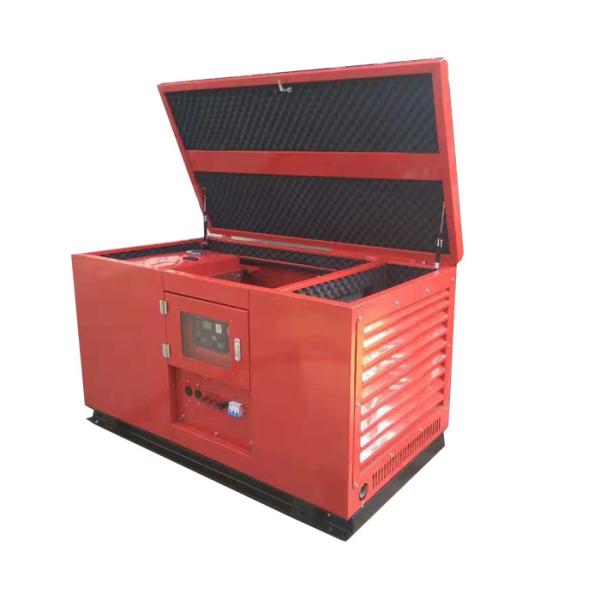

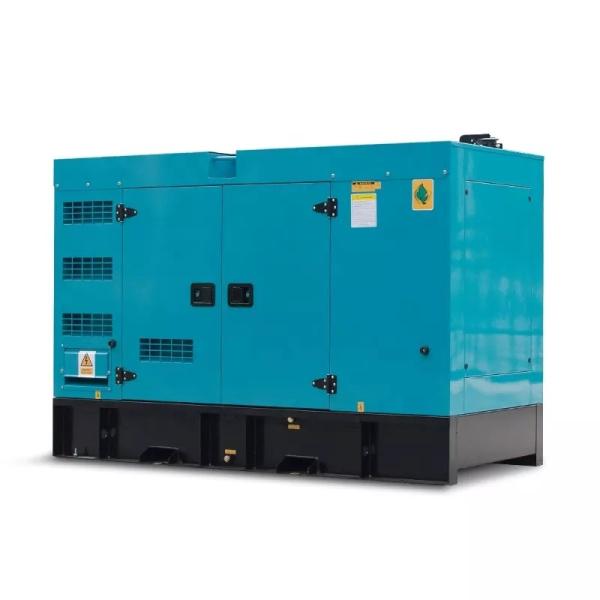

Product pictures:
High Efficiency Combustion System Silent Diesel Generator 7KW

High Efficiency Combustion System Silent Diesel Generator 7KW

High Efficiency Combustion System Silent Diesel Generator 7KW

High Efficiency Combustion System Silent Diesel Generator 7KWHigh Efficiency Combustion System Silent Diesel Generator 7KWHigh Efficiency Combustion System Silent Diesel Generator 7KWHigh Efficiency Combustion System Silent Diesel Generator 7KWHigh Efficiency Combustion System Silent Diesel Generator 7KWHigh Efficiency Combustion System Silent Diesel Generator 7KWHigh Efficiency Combustion System Silent Diesel Generator 7KWHigh Efficiency Combustion System Silent Diesel Generator 7KW
