Mining Engineering V Twin Cylinder 20kw Silent Diesel Generator 50hz
Mining Engineering V Twin Cylinder 20kw Silent Diesel Generator 50hz
Mining Engineering V Twin Cylinder 20kw Silent Diesel Generator 50hz
Mining Engineering V Twin Cylinder 20kw Silent Diesel Generator 50hz
Mining Engineering V Twin Cylinder 20kw Silent Diesel Generator 50hz
Mining Engineering V Twin Cylinder 20kw Silent Diesel Generator 50hz
Mining Engineering V Twin Cylinder 20kw Silent Diesel Generator 50hz
Mining Engineering V Twin Cylinder 20kw Silent Diesel Generator 50hz
Specifications
Brand Name :
HUAN NENG
Model Number :
YD250000CS
Certification :
CE, ISO 14001, ISO 9001
Place of Origin :
Chongqing, China
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
T/T, L/C, Western Union, MoneyGram
Supply Ability :
20000 sets per month
Delivery Time :
7-15 work days
Packaging Details :
Carton box packing for each set
Rated speed :
1 500r/min
Rated frequency :
50Hz
Power factor cosφ . :
1.0/0.8
Excitation method :
Brushless self-excitation
model :
Weichai WP2.1D18E2
1 hour power :
23KW
phase :
3 Phases
Feature :
Mining engineering
Description

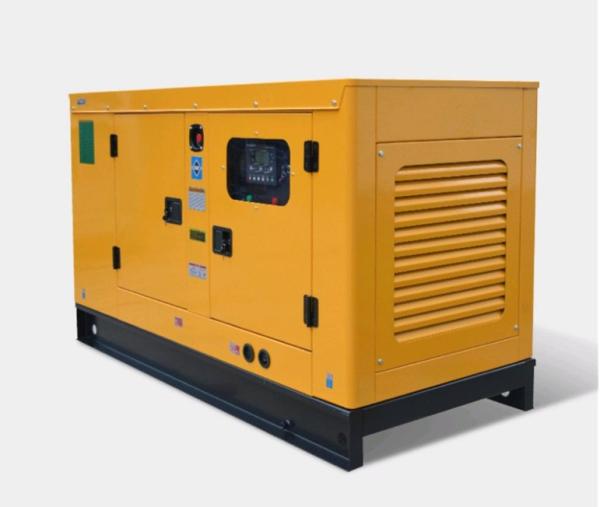

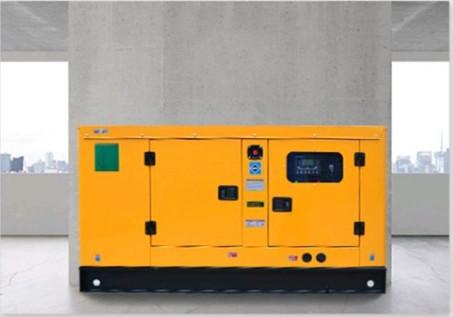

20kw Mining Engineering 3 Phases High Power V-Twin Cylinder Silent Diesel Generator

20KW 3-phases Silent Diesel Generator

THE ADVANTAGE :

1. humanized design concept, integrated panel operation, clear and easy to operate.

2. Oil protection system, low oil level automatic alarm stop, prevents engine from operating at low oil level, providing greater engine protection.

3. Continuously improve productivity and review existing workflows

ADD: if you want to know more details, please contact us.

The unit type BL-15GF BL-20GF BL-30GF
Generator Rated speed 16KW 20KW 30KW
Rated frequency 50hz 50hz 50hz
The rated voltage 230V/400V 230V/400V 400V
Power factor 1.0/0.8 1.0/0.8 0.8
Phase velocity 1 phase 2 lines /3 phase 4 lines 1 phase 2 lines /3 phase 4 lines Three phase four wire
Excitation way Brushless self-propelled magnetic Brushless self-propelled magnetic Brushless self-propelled magnetic
Insulation class H H H
Protection grade IP23 IP23 IP23
engine model Weichai WP2.1 D18E2 Weichai WP2.1 D25E200 Weichai WP2.1 D33E200
One hour power 17.5 KW 23KW 30KW
Rated speed 1500r/min 1500r/min 1500r/min
Start the way DC12V electric motor starts DC12V electric motor starts DC12V electric motor starts
In the form of Straight line, straight spray Straight line, straight spray Straight line, straight spray
Air inlet Naturally aspirated Naturally aspirated Naturally aspirated
stroke 4 4 4
Number of cylinders 4 4 4
Cylinder diameter, stroke 80/90mm 80/90mm 100/115mm
Speed way mechanical mechanical mechanical
Stop the direction mechanical mechanical mechanical
The crankshaft to counterclockwise counterclockwise counterclockwise
The oil brand CD15/40GB11122 CD15/40GB11122 CD15/40GB11122
Fuel consumption rate 200 g/kw or less. H 200 g/kw or less. H 200 g/kw or less. H
Oil consumption rate 1.5 g/kw or less. H 1.5 g/kw or less. H 1.5 g/kw or less. H

Generator sets		 Rated power 15KW 18KW 28kw
The rated voltage 230V/400V 230V/400V 400V
Maximum current 69.5 A/each phase 23.2 A A / 87 A 29.0 per phase A 43.5 per phase
Rated frequency 50hz 50hz 50hz
Power factor 1.0/0.8 1.0/0.8 0.8
Cooling way Closed fan water cooled Closed fan water cooled Closed fan water cooled
Fuel tank capacity 65L 65L 65L
The noise 72Dba/7m 72Dba/7m 72Dba/7m
The weight of the 465KG 500KG 560KG
Overall dimensions 1500x870x1200mm 1500x870x1200mm 1500x870x1200mm
