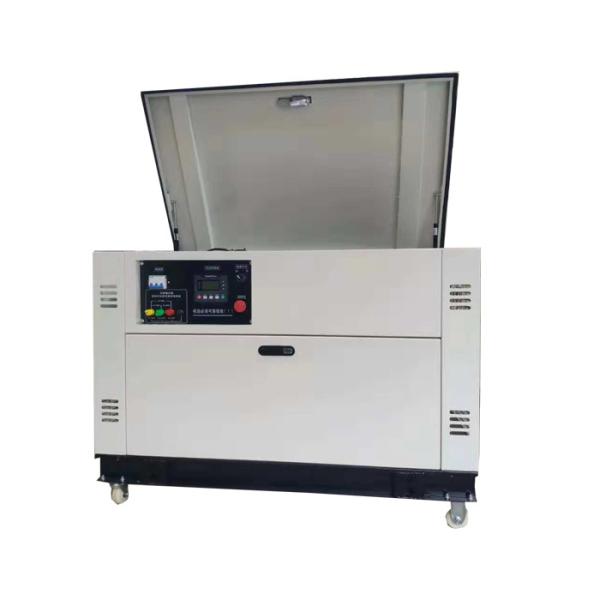

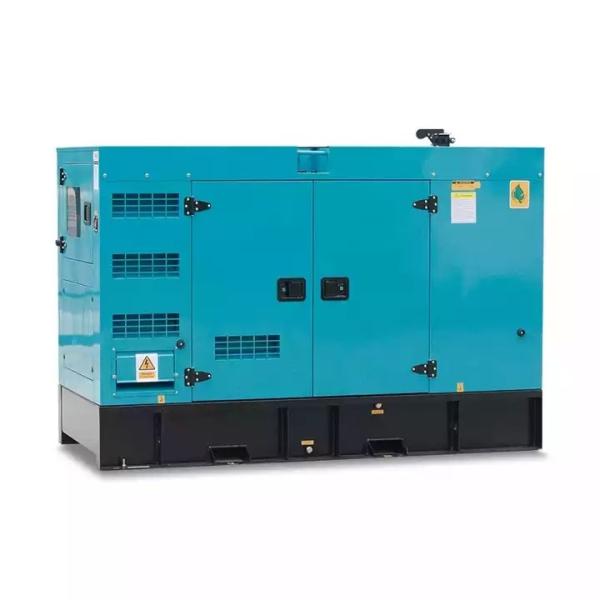

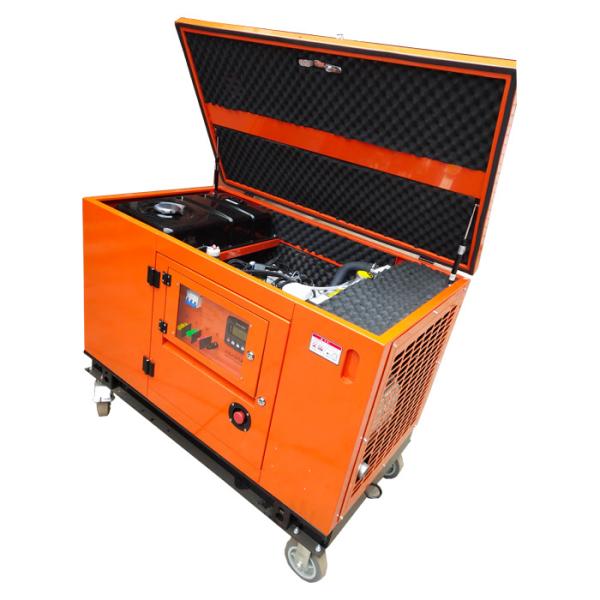

Best Quality 4 Stroke Air Cooling Amazing Silent Diesel Generator

Best Quality 4 Stroke Air Cooling Amazing Silent Diesel Generator

Frequently Asked Questions:

1: The gasoline generator does not generate electricity ~ the voltage cannot reach 220V

1. Blow the throttle down and try. After the accelerator, the voltage of the voltmeter reaches 220V, which is the phenomenon of insufficient fuel. Just fill up with petrol.

2. Adjust the AVR electronic regulator, remove it, and use a small flat-blade screwdriver to adjust to 220V. If it burns out, you need to contact customer service to replace it.

Two: The reason why the gasoline generator can't start?

1. The main reason for gasoline generators is to check whether the spark plugs are ignited. If the spark plug does not fire, replace the spark plug. If it still doesn't work, it's time to check the high voltage package and motor.

2. In this case, the oil quality of the fuel can be replaced (the oil is impure or has water).

3. It is more troublesome to pull the cylinder of the gasoline engine. It is necessary to open the cylinder to check one by one, which is caused by the damage of spare parts.

Three: After the gasoline generator is started, the voltage is unstable and the noise is loud?

After the generator starts, the voltage is unstable (high and low) and the noise becomes louder. Preliminary analysis may be that the electronic regulator is broken.

Four: The small generator can't start when it catches fire

1. First check whether the oil and gasoline are newly added. If not, it has been added for more than three months before, and both the oil and

Six: the service life of gasoline generators

The main thing is that there is no shortage of oil. A Nook small generator with frequent oil changes can last a lifetime. Remember, oil needs to be changed frequently, oil is essential. Oil is equivalent to lubricating oil, which plays a lubricating role and can lubricate the generator. The bearings and crankshaft inside keep the parts inside the machine moisturizing, and at the same time run normally, increasing the life of the generator!

Technical parameters:

Model No.		KN7000-J	KN8000-J	KN9000-J	KN10000-J
Engine	Model	186F	188F	192F	198F
	Type	Vertical single cylinder, 4-stroke, air-cooled, direct injection
	Bore x Stroke	86x72mm	88x75mm	92x75mm	98x84mm
	Displacement	410cc	456cc	499cc	633cc
	Ignition system	Compression ignition
	Starting system	Electric
	Fuel loss rate	≤281g/kw.h	≤295g/kw.h	≤310g/kw.h	≤310g/kw.h
	Fuel type	Diesel: 0(summer)-10(winter)-35(severe cold)
	Oil capacity	1.3 liters	1.5 liters	1.5 liters	1.65 liters
Generator	Rated voltage	230V/400V
	Rated frequency	50Hz
	Max current	23.9A	28.2A	32.6A	39.1A
	Rated output power	5.0KW	6.0KW	7.0KW	8.0KW
	Max.output power	5.5KW	6.5KW	7.5KW	9.0KW
	Phase	Single/Three
	Power factor	1.0/0.8 cos
	Insulation class	F grade
	Excitation way	AVR voltage automatic adjustment
Accessory configuration	Control panel	Digital display table
	Fuel indicator	Yes
	Oil alarm	Yes
	Battery capacity	12V-32AH Maintenance-free battery			12V-36AH Maintenance-free battery
	Castor accessory	Standard
	Fuel capacity	20 liters	20 liters	20 liters	20 liters
Others	Weight	158kg	160kg	165kg	216kg
	Continous working time	8h
	Size (L*W*H)	105*61*80			102*67*93
	Packing	Standard carton
	Noise	75 dBA/7m			65 dBA/7m

Model No.		KN13000-J	KN18000-J	KN20000-J
Engine	Model	EV80/292	2V98	2V98
	Type	V-type twin/in-line twin cylinder, 4-stroke, air-cooled, direct injection
	Bore x Stroke	86x72mm/ 92x75mm	98x88mm	98x88mm
	Displacement	840cc/997cc	1326cc	1326cc
	Ignition system	Compression ignition
	Starting system	Electric
	Fuel loss rate	≤270g/kw.h	≤250g/kw.h	≤250g/kw.h
	Fuel type	Diesel: 0(summer)-10(winter)-35(severe cold)
	Oil capacity	1.7/2.6 liters	3.2 liters	3.2 liters
Generator	Rated voltage	230V/400V
	Rated frequency	50Hz
	Rated output power	10KW	15KW	16KW
	Max current	47.8A	65.2A	69.5A
	Max.output power	11KW	16KW	18KW
	Phase	Single/Three
	Insulation class	F grade
	Power factor	1.0/0.8 cos
	Excitation way	AVR voltage automatic adjustment
Accessory configuration	Control panel	Digital display table
	Fuel indicator	Yes
	Oil protector	Yes
	Battery capacity	12V-36AH Maintenance-free battery	12V-45AH Maintenance-free battery
	Castor accessory	Standard
	Fuel capacity	25 liters	30 liters
Others	Weight	240kg	330kg	340kg
	Continous working time	8h
	Generator size (L*W*H)(cm)	116*66*90	130*80*103
	Packing	Standard carton
	Noise	70 dBA/7m	78 dBA/7m
