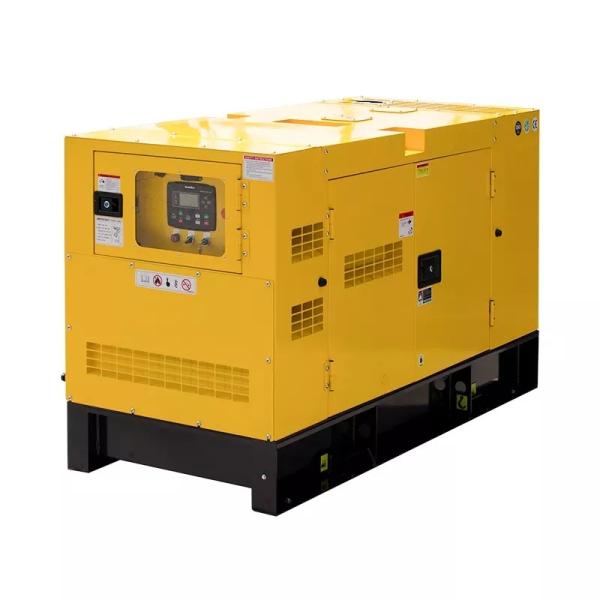

Oil Capacity 1.5L 5kw Portable Diesel Generator Silent 4 Stroke
Oil Capacity 1.5L 5kw Portable Diesel Generator Silent 4 Stroke
Oil Capacity 1.5L 5kw Portable Diesel Generator Silent 4 Stroke
Oil Capacity 1.5L 5kw Portable Diesel Generator Silent 4 Stroke
Oil Capacity 1.5L 5kw Portable Diesel Generator Silent 4 Stroke
Oil Capacity 1.5L 5kw Portable Diesel Generator Silent 4 Stroke
Oil Capacity 1.5L 5kw Portable Diesel Generator Silent 4 Stroke
Oil Capacity 1.5L 5kw Portable Diesel Generator Silent 4 Stroke
Specifications
Brand Name :
HUAN NENG
Model Number :
KN7000-J
Certification :
CE, ISO 14001, ISO 9001
Place of Origin :
Chongqing, China
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
T/T, L/C, Western Union, MoneyGram
Supply Ability :
20000 sets per month
Delivery Time :
7-15 work days
Packaging Details :
Carton box packing for each set
Material :
bronze
Product name :
Vertical Single Cylinder Silent Diesel Generator
Starting system :
electric/manual
Voltage :
220V/380V/240V (as customer's requirements)
Phase :
three/single
Insulation class :
F grade
Feature :
Vertical single cylinder, 4 stroke, air cooled
Feature2 :
Car Home Use
Description

5KW Car Home Use Vertical Single Cylinder Silent Diesel Generator

Single Cylinder Silent Diesel Generator

Application:

The silent diesel generator set is a new series of generator products developed by introducing and absorbing the advanced technology of foreign low-noise generator sets.

Features:

1. Low running noise

(1)High efficiency combustion system ensures complete combustion, a large silencer dampens exhaust noise and engine sounds are contained by a double wall structure and liner absorber.

(2) The supporting equipment is compact in structure and flexible in installation location (water cooling is only 1/10 of the 34~82L/KW·H steam turbine)
(3) There are many levels of stand-alone capacity. International units range from several kilowatts to tens of thousands of kilowatts, and domestic units are several thousand kilowatts larger

Technical parameters:

Model No. KN7000-J KN8000-J KN9000-J KN10000-J
Engine Model 186F 188F 192F 198F
Type Vertical single cylinder, 4-stroke, air-cooled, direct injection
Bore x Stroke 86x72mm 88x75mm 92x75mm 98x84mm
Displacement 410cc 456cc 499cc 633cc
Ignition system Compression ignition
Starting system Electric
Fuel loss rate ≤281g/kw.h ≤295g/kw.h ≤310g/kw.h ≤310g/kw.h
Fuel type Diesel: 0(summer)-10(winter)-35(severe cold)
Oil capacity 1.3 liters 1.5 liters 1.5 liters 1.65 liters
Generator Rated voltage 230V/400V
Rated frequency 50Hz
Max current 23.9A 28.2A 32.6A 39.1A
Rated output power 5.0KW 6.0KW 7.0KW 8.0KW
Max.output power 5.5KW 6.5KW 7.5KW 9.0KW
Phase Single/Three
Power factor 1.0/0.8 cos
Insulation class F grade
Excitation way AVR voltage automatic adjustment
Accessory configuration Control panel Digital display table
Fuel indicator Yes
Oil alarm Yes
Battery capacity 12V-32AH Maintenance-free battery 12V-36AH Maintenance-free battery
Castor accessory Standard
Fuel capacity 20 liters 20 liters 20 liters 20 liters
Others Weight 158kg 160kg 165kg 216kg
Continous working time 8h
Size (L*W*H)

105*61*80

 102*67*93
Packing Standard carton
Noise 75 dBA/7m 65 dBA/7m

Model No. KN13000-J KN18000-J KN20000-J
Engine Model EV80/292 2V98 2V98
Type V-type twin/in-line twin cylinder, 4-stroke, air-cooled, direct injection
Bore x Stroke

86x72mm/

92x75mm

 98x88mm 98x88mm
Displacement 840cc/997cc 1326cc 1326cc
Ignition system Compression ignition
Starting system Electric
Fuel loss rate ≤270g/kw.h ≤250g/kw.h ≤250g/kw.h
Fuel type Diesel: 0(summer)-10(winter)-35(severe cold)
Oil capacity 1.7/2.6 liters 3.2 liters 3.2 liters
Generator Rated voltage 230V/400V
Rated frequency 50Hz
Rated output power 10KW 15KW 16KW
Max current 47.8A 65.2A 69.5A
Max.output power 11KW 16KW 18KW
Phase Single/Three
Insulation class F grade
Power factor 1.0/0.8 cos
Excitation way AVR voltage automatic adjustment
Accessory configuration Control panel Digital display table
Fuel indicator Yes
Oil protector Yes
Battery capacity 12V-36AH Maintenance-free battery 12V-45AH Maintenance-free battery
Castor accessory Standard
Fuel capacity 25 liters 30 liters
Others Weight 240kg 330kg 340kg
Continous working time 8h

Generator size

(L*W*H)(cm)

 116*66*90

130*80*103
Packing Standard carton
Noise 70 dBA/7m 78 dBA/7m
