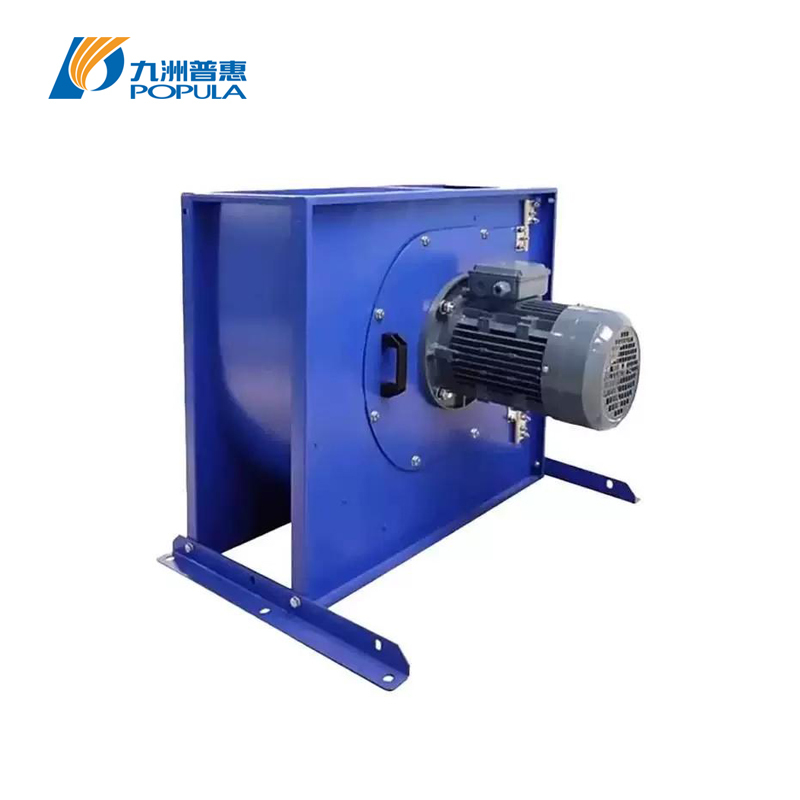

3D Flow Design Forward Curved Centrifugal Fan Direct Coupled Structure Grease Resistant
3D Flow Design Forward Curved Centrifugal Fan Direct Coupled Structure Grease Resistant
Specifications
Motorpower :
0.5 kW - 30 kW
Type :
Centrifugal
Certification :
CE, UL, Rohs
Operatingtemperature :
-20°C to 80°C
Delivery Time :
2 two days for sampe order and 10 days for bulk order
Productname :
Industrial Centrifugal Fan
Speed :
500 - 3600 RPM
Payment Terms :
T/T
Noiselevel :
65 - 85 dB
Pressurerange :
500 - 5000 Pa
Mountingtype :
Horizontal / Vertical
Outletdiameter :
150 - 1000 mm
Application :
Ventilation, Dust Collection, Material Handling
Airflowcapacity :
1000 - 50000 CFM
Material :
Steel / Stainless Steel
MOQ :
1 set
Place of Origin :
China
Protectionclass :
IP54 / IP55
Powersupply :
220V / 380V / 440V
Brand Name :
Popula
Inletdiameter :
200 - 1200 mm
Supply Ability :
100000 Sets/week
Description

XCF Multi-Wings Centrifugal Fan

* XCF series multi-blade centrifugal fans adopt advanced 3D flow design for optimized aerodynamic performance, making them ideal for kitchen ventilation and smoke exhaust applications. ·

* The multi-blade impeller design delivers high static pressure at relatively low noise levels, efficiently handling grease-laden air in catering environments. ·

* The compact, direct-coupled structure allows for easy installation in confined spaces above stoves or in ventilation shafts. ·

* It is suitable for conveying clean, non-flammable, and harmless gases, with a maximum operating temperature of ≤60°C and dust/hard particle content ≤150mg/m³. ·

* Standard specifications support both 220V single-phase and 380V three-phase power supply to meet diverse application requirements.

XCF Model Features:

Material Properties

Designed specifically for kitchen environments, the XCF fan series is widely used in staff canteens, hotels, restaurants, and other public catering venues for ventilation, smoke exhaust, and air exchange. The multi-wing impeller offers excellent performance for handling cooking fumes.

Benefits

· High Efficiency & Low Noise: The multi-blade design optimizes airflow, providing strong static pressure for duct-work while keeping noise levels low.

· Grease-Resistant Design: The impeller and casing structure are less prone to grease buildup compared to single-blade fans, reducing maintenance needs.

· Versatile Installation: The compact footprint allows for various mounting configurations to fit different kitchen layouts.

Model Selection

Rotating speeds range from 960 to 1450r/min with power from 0.75kW to 7.5kW. The series offers a range of airflow and static pressure options to match different kitchen sizes and duct lengths.

机号 (Model) 功率 (kW) 电压 (V) 转速 (r/min) 流量 (m³/h) 全压 (Pa) 静压 (Pa)
2.8A 0.75 220/380 1400 1625~3038 551~498 510~354
3.0A 1.5 220/380 1450 2590~4563 668~505 582~239
3.5A 3.0 220/380 1450 5048~7215 909~633 727~260
4.0A 2.2 380 960 4301~7323 668~650 589~420
4.5A 3.0 380 960 5389~9117 756~724 677~498
5.0A 5.5 380 960 7912~13488 970~845 857~516
5.6A 6.5 380 960 9126~16108 1039~887 919~533
6.0A 7.5 380 960 11236~17513 1203~1139 1070~853

Q1: What is the maximum operating temperature for the XCF fan?
A1: The fan is suitable for gases with a temperature ≤60°C, making it ideal for kitchen exhaust applications.
Q2: Can the XCF fan handle oily kitchen fumes?
A2: Yes, the multi-blade design is well-suited for grease-laden air. Regular cleaning is still recommended to prevent buildup.
Q3: What power supply options are available?
A3: Smaller models support both 220V single-phase and 380V three-phase, while larger models are typically 380V three-phase.
Q4: How does the multi-wing design benefit kitchen ventilation?
A4: It provides high static pressure to overcome long duct runs, while operating at lower noise levels than traditional single-blade fans.
Q5: Can the fan be installed horizontally or vertically?
A5: The compact design allows for various mounting configurations, including ceiling suspension and wall mounting.
Q6: Is an explosion-proof variant available?
A6: Yes, an explosion-proof version is available for kitchens with gas stoves or other flammable environments.
Q7: What is the recommended inlet filtration for this fan?
A7: Grease filters must be installed at the inlet to protect the impeller from heavy grease buildup and reduce fire risk.
Q8: Can outlet angles be customized?
A8: Multiple outlet angles can be preset during production to match your existing ductwork.
Q9: Do you offer CE-certified motors?
A9: Standard motors meet IEC standards; CE-certified motors can be provided for EU customers as a customized option.
Q10: What is the warranty period?
A10: 12-month warranty against manufacturing defects from the date of shipment; wearing parts like bearings are excluded.
