Low Noise Smoke Extraction Fan 74dB High Static Pressure Square Inline Exhaust Fan
Low Noise Smoke Extraction Fan 74dB High Static Pressure Square Inline Exhaust Fan
Low Noise Smoke Extraction Fan 74dB High Static Pressure Square Inline Exhaust Fan
Low Noise Smoke Extraction Fan 74dB High Static Pressure Square Inline Exhaust Fan
Low Noise Smoke Extraction Fan 74dB High Static Pressure Square Inline Exhaust Fan
Low Noise Smoke Extraction Fan 74dB High Static Pressure Square Inline Exhaust Fan
Low Noise Smoke Extraction Fan 74dB High Static Pressure Square Inline Exhaust Fan
Low Noise Smoke Extraction Fan 74dB High Static Pressure Square Inline Exhaust Fan
Specifications
Supply Ability :
100000 Sets/week
Inletdiameter :
200 - 1200 mm
Outletdiameter :
150 - 1000 mm
Application :
Ventilation, Dust Collection, Material Handling
Airflowcapacity :
1000 - 50000 CFM
Delivery Time :
2 two days for sampe order and 10 days for bulk order
Productname :
Industrial Centrifugal Fan
Speed :
500 - 3600 RPM
Noiselevel :
65 - 85 dB
Pressurerange :
500 - 5000 Pa
Mountingtype :
Horizontal / Vertical
Motorpower :
0.5 kW - 30 kW
Type :
Centrifugal
Payment Terms :
T/T
Model Number :
XBF
Operatingtemperature :
-20°C to 80°C
Brand Name :
Popula
MOQ :
1 set
Protectionclass :
IP54 / IP55
Certification :
CE, UL, Rohs
Packaging Details :
Carton packing for each； 500 sets around for 20 feet container
Powersupply :
220V / 380V / 440V
Material :
Steel / Stainless Steel
Place of Origin :
China
Description

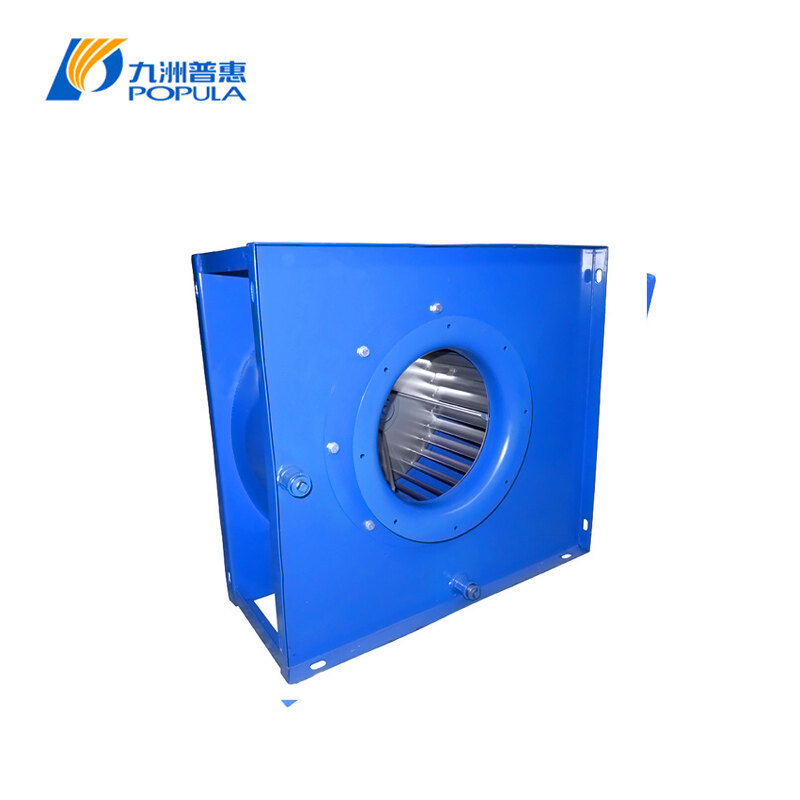

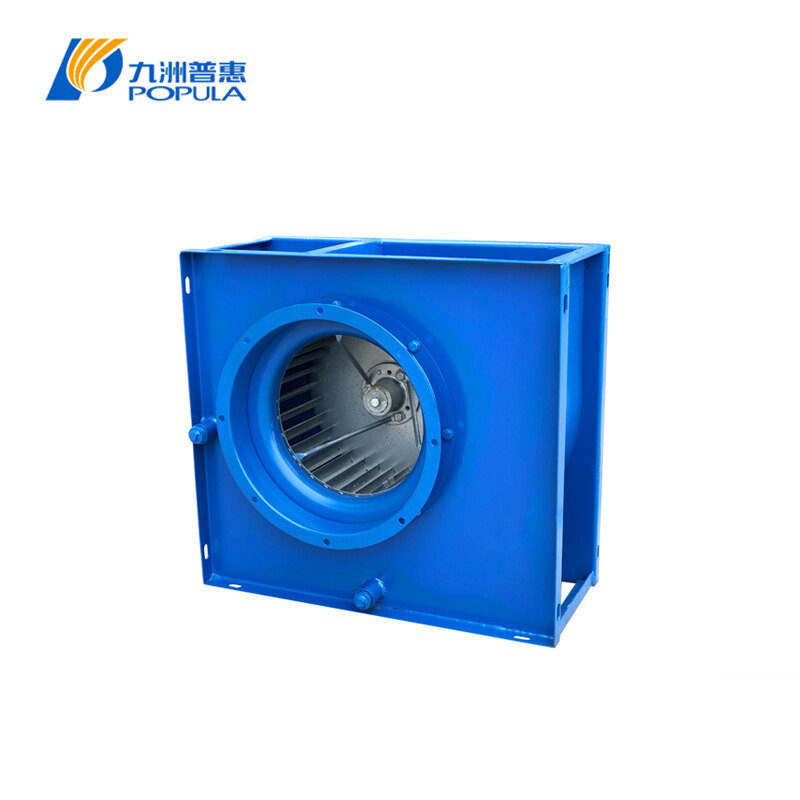

XBF Square Stand Centrifugal Fan

· The multi-airfoil blades have 11-62 series and CF series and have been modified by our superb technology and rich experience,

· These commercial kitchen exhaust ventilation fans solve the problem of the impeller in the kitchen being hard to clean.

· Square-type centrifugal fan, adopt the design philosophy of the high-efficiency fan abroad.

· Show the real engineering applications to commercial kitchens.

· Stable and save the energy of the square inline duct fan.

· Offer more sizes for customer selection.

· Good at exhaust smoke and oil once.

XBF Model Features

Material Properties

XBF type low noise square inline duct fan is made to match the developing demand of the purifying industry, ecology, and noise decrease. During the design process, we use the design method of multi-objective optimization for noise and efficiency to get the best performance. These kitchen exhaust ventilation fans have good aerodynamic performance.

Fan Structure

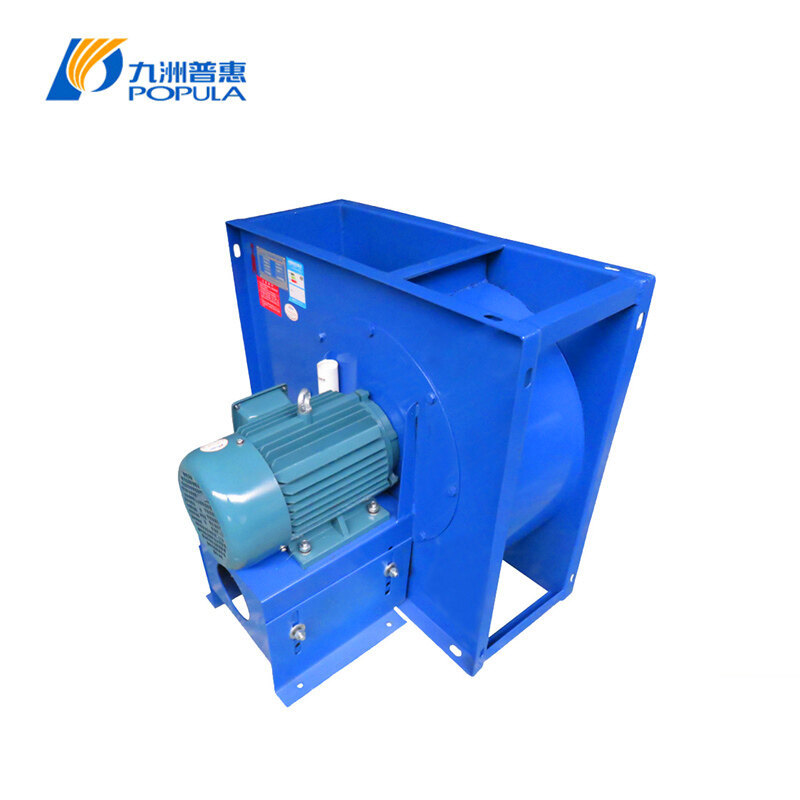

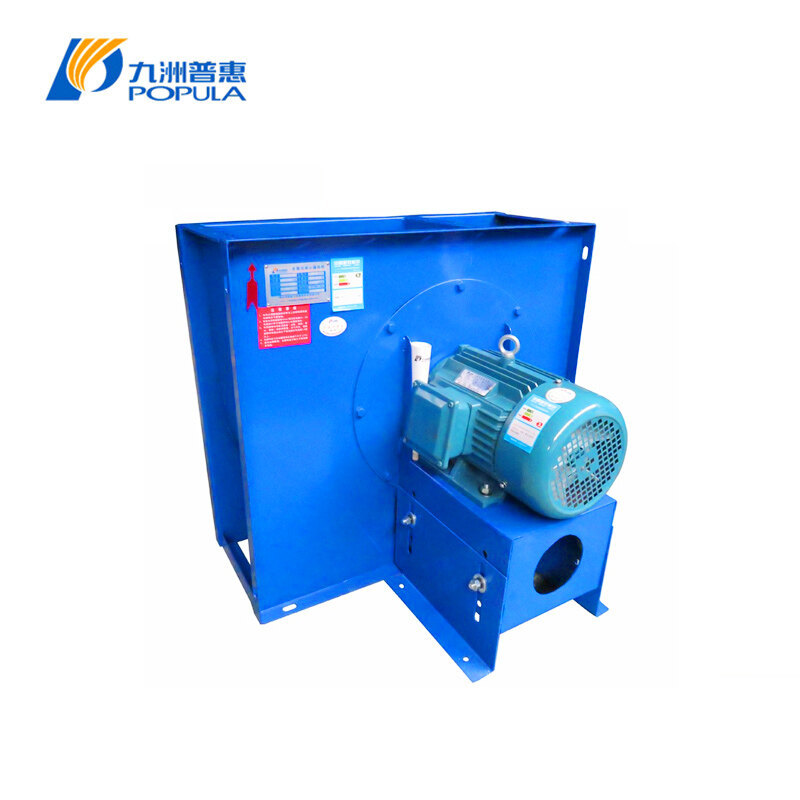

The impeller is the forward curve multi-wings type. It is low noise. All impellers are well balanced to make sure the fan works stably with low noise, high air volume, small vibration, and long life. This square inline duct fan is composed of Inlet, Impeller, Casing, and Motor. Impeller: Made of high-quality steel plate.

Usage Area

These kitchen exhaust ventilation fans are widely used for kitchen exhaust, oil fume extraction, or ventilation of a Canteen, Hotel, or Restaurant. It’s also suitable for use together with grain, chemical, and plastic machinery.

Model Power(kW) Voltage(V) Rotation(r/min) Volume(m³/h) Pressure(Pa) Static Pressure(Pa) Noise dB(A)
2.8A 1.1/2.2 220/380 1400/1420 1388~4500 1000~650 569~580 ≤74/≤78
3A 1.5/0.75 220/380 1400/910 1769~3065 835~365 759~326 ≤77/≤68
3.5A 1.1/4 220/380 910/1450 2769~8050 483~1142 442~1047 ≤74/≤79
4A 5.5/2.2/3 380 1450/960 4000~6947 1252~569 1167~500 ≤87/≤80/≤78
4.5A 4/7.5 380 960/1450 4290~11078 750~1374 709~1213 ≤75/≤81
5A 5.5/7.5/11 380 960 7148~14000 976~1337 906~1225 ≤79/≤84/≤79
6A 7.5/5.5 380 960/720 9178~16093 1204~753 1078~693 ≤79/≤73
6.5A 15/7.5 380 960/720 13024~17858 1595~898 1488~842 ≤80/≤75
7A 11 380 720 13609~23912 1128~1114 1020~783 ≤75



Model Power(kW) Voltage(V) Rotation(r/min) Volume(m³/h) Pressure(Pa) Static Pressure(Pa) Noise dB(A)
4C 4/5.5/7.5 380 1250/1350/1450 4743~11163 975~1312 879~1183 ≤78/≤80/≤82
4.5C 4/5.5/3 380 950/1100/750 4508~10504 777~1029 727~963 ≤76/≤73
5C 4/5.5/7.5 380 860/970/1100 5058~13971 694~1136 655~1073 ≤79/≤79/≤75
5.6C 5.5/7.5/11 380 930/1100/680 8290~18163 1035~1774 965~1655 ≤80/≤84
6.3C 11/15/18.5 380 880/930/980 12256~25506 1296~1808 1209~1799 ≤86/≤87/≤88
7.1C 11/15/18.5 380 600/660/700 14674~32485 828~1002 775~877 ≤80/≤82/≤83
8C 15/18.5/22 380 600/640/680 12004~37529 851~1093 803~1032 ≤84/≤86



Q1: What are the main applications of the XBF fan?
A1: It is designed for kitchen smoke and grease exhaust in commercial kitchens, restaurants, and similar spaces.

Q2: What is the key feature of the impeller design?
A2: The modified multi-wing impeller is engineered to resist oil accumulation, a common problem in kitchen exhaust systems.

Q3: What configurations are available?
A3: The series includes direct-drive (A-type) and belt-drive (C-type) versions.

Q4: How does the fan handle the demanding conditions of kitchen use?
A4: The fan is built with durable materials and an easy-to-clean design to handle continuous use with grease-laden air.

Q5: Is the fan suitable for continuous operation?
A5: Yes, it is designed for long-term continuous use in commercial kitchen environments.

Q6: How do I choose between the A-type and C-type?
A6: The A-type (direct-drive) offers compact installation, while the C-type (belt-drive) allows for flexible speed control and easier maintenance.

Q7: What noise levels can be expected?
A7: Noise levels range from ≤68 to ≤88 dB(A), depending on the model, ensuring quiet operation in commercial spaces.

Q8: What maintenance is required for the XBF fan?
A8: Regular cleaning of the impeller and casing to remove grease buildup is essential. Belt-drive models also require periodic checks of the belt tension and condition.

Q9: Can the fan be used for other ventilation applications?
A9: While specifically designed for kitchen use, it can be adapted for other industrial exhaust applications with similar conditions.

Q10: What certifications does the XBF series have?
A10: The series meets international quality standards. CE-certified versions are available for European customers.
