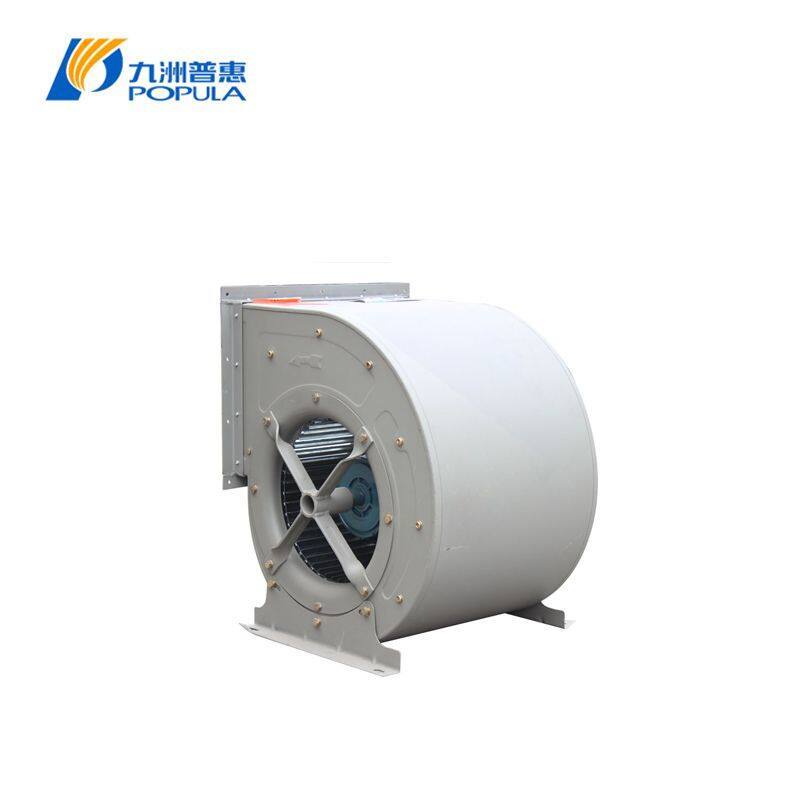

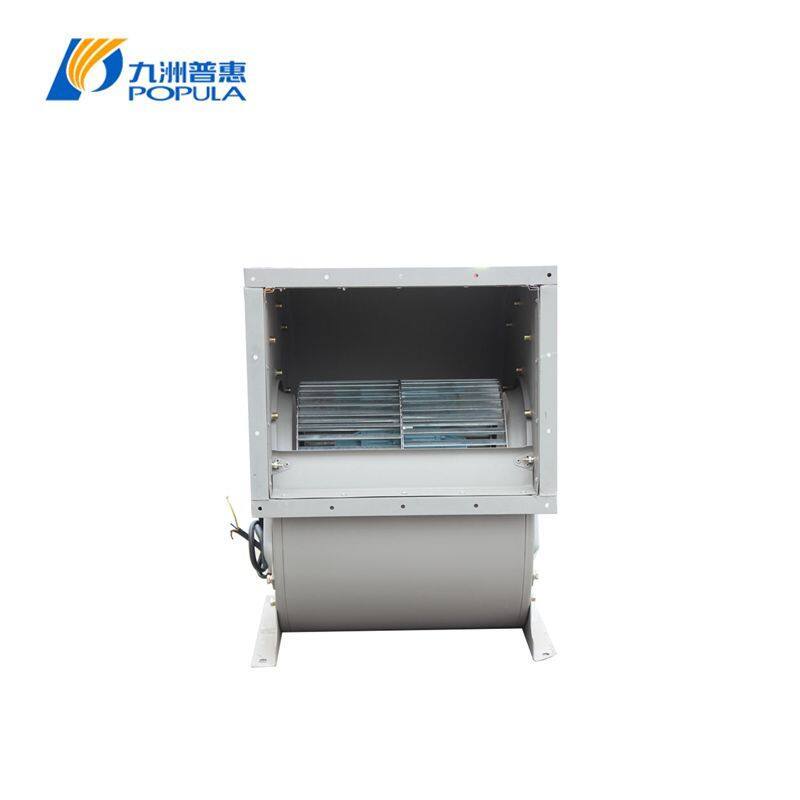

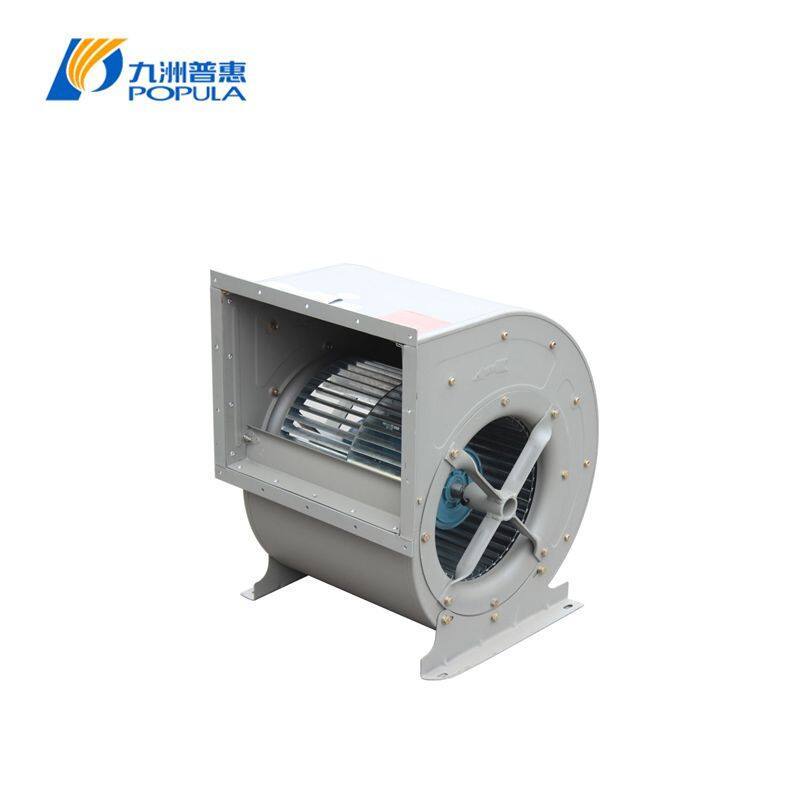

Adjustable 3 Speed Multi Wing Centrifugal Fan Large Volume 220V 380V Forward Curved
Adjustable 3 Speed Multi Wing Centrifugal Fan Large Volume 220V 380V Forward Curved
Adjustable 3 Speed Multi Wing Centrifugal Fan Large Volume 220V 380V Forward Curved
Adjustable 3 Speed Multi Wing Centrifugal Fan Large Volume 220V 380V Forward Curved
Adjustable 3 Speed Multi Wing Centrifugal Fan Large Volume 220V 380V Forward Curved
Adjustable 3 Speed Multi Wing Centrifugal Fan Large Volume 220V 380V Forward Curved
Specifications
Inletdiameter :
200 - 1200 mm
Productname :
Industrial Centrifugal Fan
Speed :
500 - 3600 RPM
Noiselevel :
65 - 85 dB
Pressurerange :
500 - 5000 Pa
Mountingtype :
Horizontal / Vertical
Packaging Details :
Carton packing for each； 500 sets around for 20 feet container
Payment Terms :
T/T
MOQ :
1 set
Outletdiameter :
150 - 1000 mm
Application :
Ventilation, Dust Collection, Material Handling
Airflowcapacity :
1000 - 50000 CFM
Operatingtemperature :
-20°C to 80°C
Place of Origin :
China
Protectionclass :
IP54 / IP55
Motorpower :
0.5 kW - 30 kW
Type :
Centrifugal
Model Number :
DKT
Brand Name :
Popula
Certification :
CE, UL, Rohs
Supply Ability :
100000 Sets/week
Powersupply :
220V / 380V / 440V
Material :
Steel / Stainless Steel
Delivery Time :
2 two days for sampe order and 10 days for bulk order
Description

DKT Air Conditioner Fan

This multi-wings centrifugal fan has high versatility, high efficiency, low noise, large volume and other features.

· 220V and 380V both can provide.

· External rotor motor can save more room.

· High-quality steel and multi-functional.

· Transport the air smoothly.

· Suitable to be put inside conditioner.

· Designed with A-type double inlets, the YDW three-phase electric low-noise outer rotor is adopted.

· Use the inverter to change the speed to meet the needs of airflow and pressure in various situations.

· With moisture resistance and heat resistance. The angle between the casing and base can be changed to 0 degrees, 90 degrees, and 180 degrees, which is easy to install.

Material Properties

This multi-wings centrifugal fan is made of high-quality DKT and high-quality galvanized steel sheet with electrostatic powder coating. This provides a good outlooking and heat resistant & anti-corrosion properties. The outer rotor motor is made of 100% pure copper wire. Fans are capable of carrying air at a temperature between -20ºC~60ºC. This fresh air system is designed to maximize ventilation efficiency and minimize operating noise. The fan is ideal for the HVAC system.


Fan Structure

This multi-wings centrifugal fan has double suction and a forward-curved multi-wing design. All parts are stamped in a steel plate mould. This fresh air system is manufactured in an aerodynamic structure to ensure the best performance. The impeller is flanged to the motor and installed in the casing as one piece. Therefore, increased the overall efficiency.


Speed Control

Three speed adjustable for standard 220V single phrase DKT air conditioner fan. Moreover, the three-phase asynchronous low noise external motor provides the ability to adjust speed by VFD in order that can meet different air volume and air pressure requirements.


Usage Areas

Hotels, factories and malls, etc. This multi-wings centrifugal fan can be equipped with different types of air-conditioner equipment or purifier ventilators.

Model Power(kW) Voltage(V) Volume(m³/h) Pressure(Pa) Static Pressure(Pa)
Single-Phase 220V Series




2A 0.22/0.10 220 710~2036 75~207 69~192
2.25A 0.25/0.55 220 914~3800 61~218 75~278
2.5A 0.37/0.75 220 1099~3926 121~344 95~321
Three-Phase 380V Series




2.0A 0.18~0.4P 380 852~2348 114~305 90~260
2.25A 0.18~0.55P 380 1642~3976 149~305 137~243
2.5A 0.25~1.1P 380 1665~4598 198~450 200~367
2.8A 0.37~1.5P 380 2393~3963 223~241 213~226
3.0A 0.55~1.8P 380 3041~5565 744~836 285~711
3.15A 0.8~2.2P 380 4343~5820 359~820 329~749
3.55A 0.8~4.0P 380 7424~10913 407~938 352~883
4.0A 1.5~4.0P 380 4002~7930 459~758 218~730
4.5A 1.1~7.5P 380 8437~21500 805~881 744~705
5.0A 2.2~8.0P 380 9033~24333 462~938 410~841



Q1: What are the main applications of the DKT fan?
A1: It is designed as an ideal companion for various air conditioning, heating, and ventilation systems in industrial enterprises, hotels, and large commercial buildings.

Q2: What temperature conditions can the fan withstand?
A2: The fan handles air temperatures from -20°C to 60°C, with dust and particle content ≤100mg/m³.

Q3: What power supply options are available?
A3: The series includes both 220V single-phase and 380V three-phase configurations.

Q4: How do I choose the right model for my application?
A4: Consider the required airflow, pressure, static pressure, power supply configuration, and noise tolerance. The series offers a wide range of models with different capacities.

Q5: Is the fan suitable for continuous operation?
A5: Yes, the fan is designed for long-term continuous use in various HVAC systems.

Q6: What maintenance is required for the DKT fan?
A6: Regular cleaning of the impeller and casing, as well as periodic checks of the motor, are recommended to ensure optimal performance.

Q7: Can the fan be used for both supply and exhaust ventilation?
A7: Yes, the fan is suitable for both supply and exhaust applications in various HVAC systems.

Q8: What certifications does the DKT series have?
A8: The series meets international quality standards. CE-certified versions are available for European customers.

Q9: Is the fan easy to install?
A9: Yes, the compact design allows for easy integration into various air conditioning systems.

Q10: What is the power range of the series?
A10: The series includes models with power ranging from 0.10kW to 8.0kW.
