4G WiFi GPS Dashcam 4CH 1080P with ADAS and Face Recognition
4G WiFi GPS Dashcam 4CH 1080P with ADAS and Face Recognition
4G WiFi GPS Dashcam 4CH 1080P with ADAS and Face Recognition
4G WiFi GPS Dashcam 4CH 1080P with ADAS and Face Recognition
4G WiFi GPS Dashcam 4CH 1080P with ADAS and Face Recognition
4G WiFi GPS Dashcam 4CH 1080P with ADAS and Face Recognition
4G WiFi GPS Dashcam 4CH 1080P with ADAS and Face Recognition
4G WiFi GPS Dashcam 4CH 1080P with ADAS and Face Recognition
4G WiFi GPS Dashcam 4CH 1080P with ADAS and Face Recognition
4G WiFi GPS Dashcam 4CH 1080P with ADAS and Face Recognition
Specifications
Brand Name :
oxiang
Model Number :
OX-MD214-4G
Certification :
CE.RoHS,FCC
Place of Origin :
China
MOQ :
negotiable
Price :
Negotiate
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
10000pcs/month
Delivery Time :
Sample: Around 3-5 working days after payment
Packaging Details :
Gift Box
OS :
Embedded Linux
ADAS :
FCW, LDW, PCW, Vehicle too close
FR :
Face recognition
BSD :
FCW, LDW, PCW, Vehicle too close
Serial Port :
2 x RS232 1 x RS485
Description

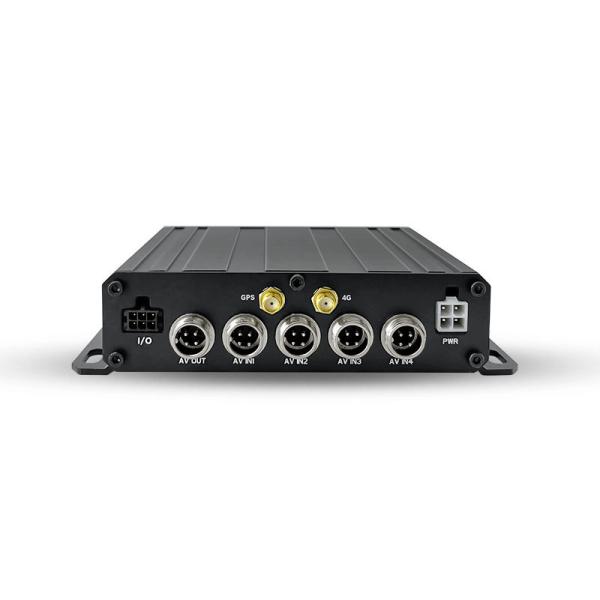

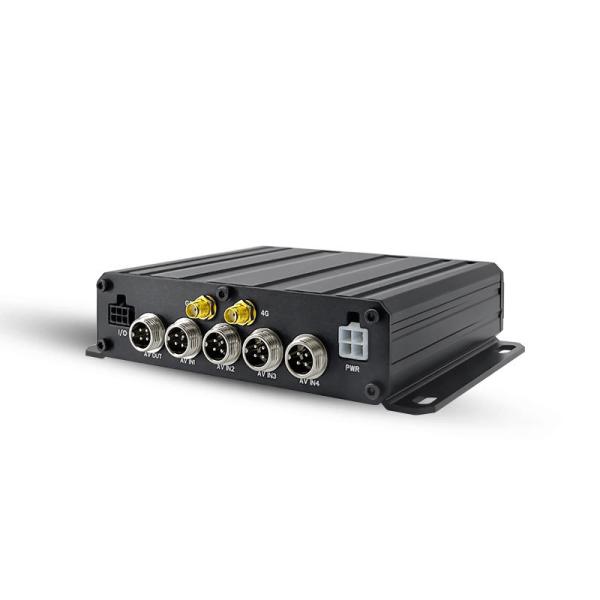

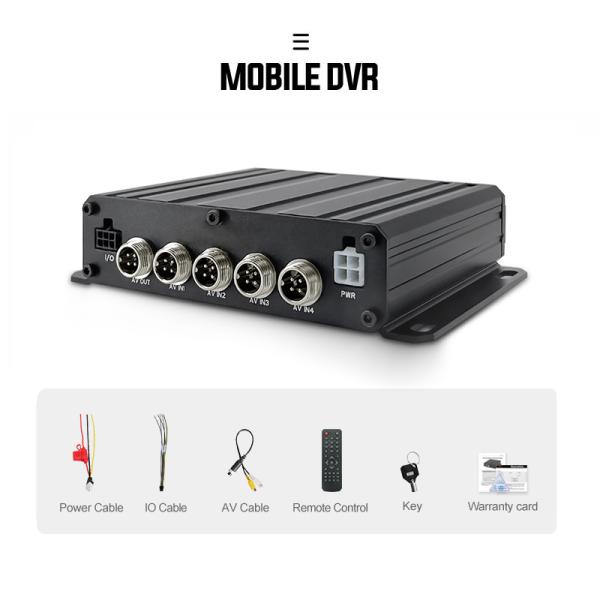

4CH 4G WiFi SD card Mobile DVR

The detailed features are as follows:

  • Industrial design, stable and reliable, easy to install
  • Video adopts the international mainstream H.265/H.264 encoding format, and the audio adopts G711a encoding. It can support up to 4 channels of 1080P. high compression ratio , clear image, and Use small disk space .
  • Professional vehicle power supply, can adapt to 8 to 36V ultra-wide voltage input, with multiple protection circuits such as overload/short circuit/reverse connection
  • Highly reliable aviation plug input and output interface, easy to install and plug, and stronger Vandal-proof performance
  • Support 4 channels of video and audio input, frame rate and image quality are adjustable
  • Support single SD card Max 512G large capacity recording
  • The video content has the power-off protection function, and the video will be automatically restored when power recovery
  • Support video loss alarm function
  • Independent delay Power shutdown , can support the system to continue running after the vehicle is turned off, the delay time can be set by yourself
  • Supporting CMS client platform, providing multiple functions such as playback, analysis, management, etc.
  • Support Firmware upgrade via SD card or U disk
  • Support 1 x RS232, can be connected to RFID card reader, oil sensor, temperature sensor, etc.
  • Support 4G , WiFi and GPS function

4G WiFi GPS Dashcam 4CH 1080P with ADAS and Face Recognition

1.1 Specifications

Item Parameters
OS Embedded Linux
System language English, other (Can be customized for free)
Video compression format H.265/H.264 compression format
OSD Character superposition function, support time and date, vehicle ID and other information image superposition
GUI graphic interface System parameters can be set through external display and remote control operation
Video and recording system Video input 4CH video inputs (aviation plug interface), 1.0Vp-p, 75Ω
Video output 1CH mixed video output (VGA output can be customized), 1.0Vp-p, 75Ω
Preview function Single-channel or multi-screen splicing preview, support manual/event trigger full-screen display function
Video resolution 4CH machine supports 1080P/720P/D1/CIF optional, and the maximum can support 4 channels 1080P
Record mode Default automatic recording, support ACC recording, manual recording, alarm recording, etc.
Audio Audio input 4CH,aviation plug
Audio output 1CH,aviation plug
Format G711a compression format
Alarm input 4CH alarm inputs, with alarm linkage function
Alarm Output 1CH output
RS232 Support 1 x RS232
USB Support 1 x USB interface
Positioning Support built-in GPS/BD(GPS/GLONASS) module
sensor Support built-in acceleration sensor
Network 4G Support built-in 4G function
WiFi Support built-in WiFi function
Video storage SD Card Maximum support 1x512G SD card, loop recording
File format H.265/H.264
Video playback Video search Search for recording video files by recording time, recording mode, etc.
Playback Support multi-channel synchronous playback, support fast forward and fast reverse, support 2, 4, 8, 16 times speed optional
upgrade Firmware upgrade Support SD Card Upgrade, Support Network upgrade
Power Power management Adaptive wide power Voltage input, with protection functions such as overload, overvoltage, undervoltage, short circuit, and reverse connection;Support timing power on/off , delayed power on/off function
Input voltage DC:8 ~ 36V
Consumption Normal work maximum:5W,standby:0.5W
working environment temperature -20℃ to +70℃
humidity 20% to 80%
Safety management Password access Two-level management of user password and administrator password
Other Size: 153(W) x35(H) x121(L) mm

1.14G WiFi GPS Dashcam 4CH 1080P with ADAS and Face Recognition4G WiFi GPS Dashcam 4CH 1080P with ADAS and Face Recognition4G WiFi GPS Dashcam 4CH 1080P with ADAS and Face Recognition4G WiFi GPS Dashcam 4CH 1080P with ADAS and Face Recognition4G WiFi GPS Dashcam 4CH 1080P with ADAS and Face Recognition
