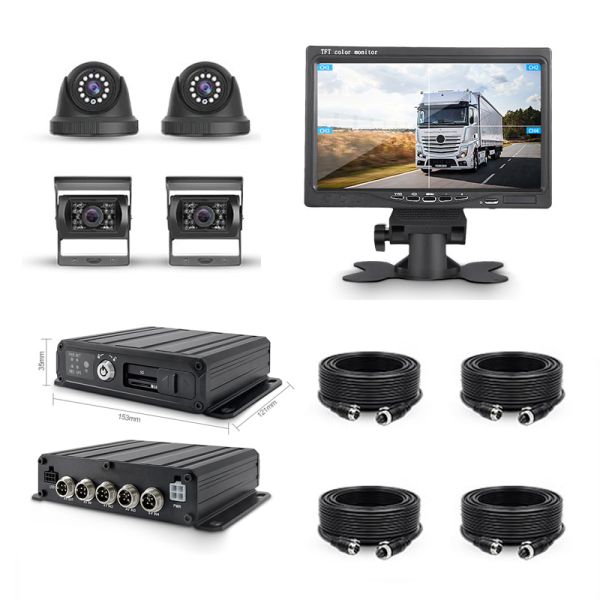

8CH 4G WiFi HDD/SSD MDVR

1.1 Product features

This series of products is a fully functional Hard Disk Driver 4G mobile DVR designed for the mobile surveillance market. Supports wide power voltage input, supports high-capacity HDD/SSD and TF card recording; Use professional and reliable aviation plug connector; High appearance, enough materials, good heat dissipation; The device has powerful functions, rich interfaces and low power consumption; Simple installation, easy operation, and extremely stable; widely used in passenger Coach, buses, taxis, school buses, logistics vehicles, dangerous goods vehicles, Sedan cars, ships, etc.

The detailed features are as follows:

• Die casting structure, industrial design, stable and reliable, easy to install
• Video adopts the international mainstream H.265 encoding format, and the audio adopts G711a encoding. It can support up to 8 channels.
• Professional vehicle power supply, can adapt to 8 to 36V ultra-wide voltage input, with multiple protection circuits such as overload/short circuit/reverse connection
• Highly reliable aviation plug input and output interface, easy to install and plug, and stronger Vandal-proof performance
• Support 8 channels of video and audio input, frame rate and image quality are adjustable
• Support 1x2.5inch HDD/SSD +1xTF Card Storage
• Built-in Farad capacitor. The video content has power-off protection function
• Support video loss alarm function
• Independent delay Power shutdown, can support the system to continue running after the vehicle is turned off, the delay time can be set by yourself
• Supporting CMS client platform, providing multiple functions such as playback, analysis, management, etc
• Support HDD/SSD, TF card and U disk to upgrade firmware, support network remote firmware upgrade.
• Supports 2 USB ports, the front can be connected to a USB drive to export videos or upgrade firmware, and the back can be connected to a fireproof box to backup videos
• Support 6 x IO alarm input, 2 x IO alarm output
• Support 2 x RS232 and 1 x RS485
• Insert the intercom handle for two-way communication between the platform and the device
• Support pulse vehicle speed
• Support 4G, GPS, LAN(RJ45)
• Optional WiFi function
• Optional 1 x CAN
• Optional AI function(ADAS DSM Face recognition BSD)
• Maximum support for 3 channel passenger counts

Note: Up to 5 AI functions can be supported simultaneously, with 1 AI function per channel for BSD cameras and 1 AI function per channel for passenger cameras
