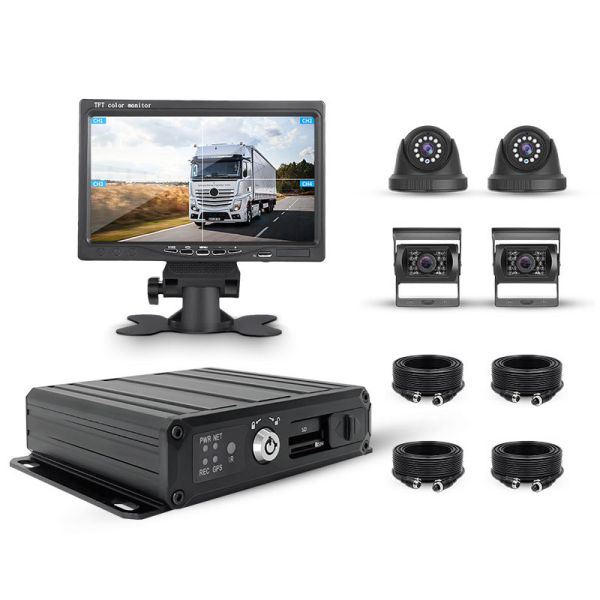

Vehicle Monitor System with AI ADAS DMS 4Channels DMVR Dashcam
Vehicle Monitor System with AI ADAS DMS 4Channels DMVR Dashcam
Vehicle Monitor System with AI ADAS DMS 4Channels DMVR Dashcam
Vehicle Monitor System with AI ADAS DMS 4Channels DMVR Dashcam
Vehicle Monitor System with AI ADAS DMS 4Channels DMVR Dashcam
Vehicle Monitor System with AI ADAS DMS 4Channels DMVR Dashcam
Vehicle Monitor System with AI ADAS DMS 4Channels DMVR Dashcam
Vehicle Monitor System with AI ADAS DMS 4Channels DMVR Dashcam
Vehicle Monitor System with AI ADAS DMS 4Channels DMVR Dashcam
Vehicle Monitor System with AI ADAS DMS 4Channels DMVR Dashcam
Vehicle Monitor System with AI ADAS DMS 4Channels DMVR Dashcam
Vehicle Monitor System with AI ADAS DMS 4Channels DMVR Dashcam
Specifications
Brand Name :
oxiang
Model Number :
MD204
Certification :
CE FCCROHS　
Place of Origin :
ｃｈｉｎａ
MOQ :
ｎｅｇｏｔｉａｂｌｅ
Price :
ｎｅｇｏｔｉａｂｌｅ
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
15000
Delivery Time :
5-8 working days
Packaging Details :
neutral
Video :
4 channels of 1080P
HD :
12960 1080P
Memory :
SD card Max 512G
OSD :
Various characters can be superimposed
Description

Product features

This series of products is a Super cost-effective SD Card Mobile DVR designed for the mobile surveillance market. Support wide power Voltage input, support large-capacity SD card recording, USB backup; use professional and reliable aviation plug connectors; unique UPS t echnology, combined with advanced software and hardware, and incorporate a series of detail ed considerations to make the product more outstanding; High appearance, Precise structure, low power consumption, good heat dissipation; simple installation, easy operation, and extre mely stable; widely used in passenger Coach, buses, taxis, school buses, logistics vehicles, d angerous goods vehicles, Sedan cars, ships, etc.
The detailed features are as follows:
Industrial design, stable and reliable, easy to install
Video adopts the international mainstream H.265/H.264 encoding format, and the audio adopts G711a encoding. It can support up to 4 channels of 1080P. high compression ratio , clear image, and Use small disk space .
Professional vehicle power supply, can adapt to 8 to 36V ultra-wide voltage input, with multiple protection circuits such as overload/short circuit/reverse connection
Highly reliable aviation plug input and output interface, easy to install and plug, and stronger Vandal-proof performance
Support 4 channels of video and audio input, frame rate and image quality are adjustable
Support single SD card Max 512G large capacity recording
The video content has the power-off protection function, and the video will be automatically restored when power recovery
Support video loss alarm function
Independent delay Power shutdown , can support the system to continue running after the vehicle is turned off, the delay time can be set by yourself
Support MDVPlayer and standard players, provide playback, analysis, management and other functions
Support Firmware upgrade via U disk
Choose GPS function
Item Parameters
OS Embedded Linux
System language English, other (free customizable)
Video compression format H.265/H.264 compression format
OSD Character superposition function, support time and date, vehicle ID and other information image superposition
GUI graphic interface System parameters can be set through external display and remote control operation

Video and

recording

system

 Video input 4CH video inputs (aviation plug interface), 1.0Vp-p, 75Ω
Video output 1CH mixed video output (Can be changed to VGA output), 1.0Vp-p, 75Ω
Preview function Single-channel or multi-screen splicing preview, support manual/event trigger full-screen display function
Video resolution 4CH machine supports 1080P/720P/D1/CIF optional, and the maximum can support 4 channels 1080P
Record mode Default automatic recording, support ACC recording, manual recording, alarm recording, etc.

Audio

 Audio input 4CH ,aviation plug
Audio output 1CH ,aviation plug
Format G711a compression format
Alarm input 4CH alarm inputs, with alarm linkage function
Alarm Output 1CH output
Positioning Support built-in GPS/BD(GPS/GLONASS) module
sensor Support built-in acceleration sensor ( standard no, for optional)
Video storage SD Card Maximum support 1x512G SD card, loop recording
File format H.265/H.264

Video

playback

 Video search Search for recording video files by recording time, recording mode, etc.
Playback Support multi-channel synchronous playback, support fast forward and fast reverse, support 2, 4, 8, 16 times speed optional
upgrade Firmware upgrade Support U Disk Upgrade Firmware

Power

 Management Adaptive wide power Voltage input, with protection functions such as overload, overvoltage, undervoltage, short circuit, and reverse connection; Support timing power on/off , delayed power on/off function
Input voltage DC:8 ~ 36V
Consumption Normal work maximum: 5W, standby: 0.5W

working

environment

 temperature -20℃ ~ 70℃
humidity 20% ~ 80%

Safety

management

 Password access Two-level management of user password and administrator password
Other Size: 153(W) x35(H) x121(L) mm
