Specifications
Brand Name :
OEM/ODM
Model Number :
MD264
Certification :
CE, ROHS FCC
Place of Origin :
China
MOQ :
1pc
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
5000/pcs/month
Delivery Time :
Negotiable
Packaging Details :
Gift Box Size:16*15*7.5cm
Screen Resolution :
320*240 RGB
Screen Size :
2.5inch LCD display
Working humidity :
20--80%RH
Working Temperature :
0℃--45℃
Description

Feature:

Including cmsv6 platform software；
AI algorithm(Optional) ADAS, DMS, BSD,FR algorithms
1.Industrial design, stable and reliable, easy to install
2.Video adopts the international mainstream H.265 encoding format, and the audio adopts G711a encoding. It can support up to 4 channels.
3.Professional vehicle power supply, can adapt to 8 to 36V ultra-wide voltage input, with multiple protection circuits such as overload/short circuit/reverse connection
4.Highly reliable aviation plug input and output interface, easy to install and plug, and stronger Vandal-proof performance
5.Support 4 channels of video and audio input, frame rate and image quality are adjustable
6.Support 1x2.5inch HDD/SSD +1xTF Card Storage(without Hard disk and TF card)
7.Built-in Farad capacitor. The video content has power-off protection function
8.Support video loss alarm function
9.Independent delay Power shutdown, can support the system to continue running after the vehicle is turned off, the delay time can be set by yourself
10.Supporting CMS client platform, providing multiple functions such as playback, analysis, management, etc
11.Support HDD/SSD, TF card and U disk to upgrade firmware, support network remote firmware upgrade.
12.Supports 2 USB ports, the front can be connected to a USB drive to export videos or upgrade firmware, and the back can be connected to a fireproof box to backup videos
13.Support 8 x IO alarm input, 2 x IO alarm output
14.Support 2 x RS232 and 1 x RS485
15.Insert the intercom handle for two-way communication between the platform and the device
16.Support pulse vehicle speed. Optional
17.Support 4G, WIFI,GPS, LAN(RJ45)

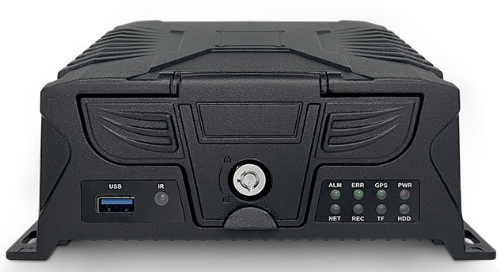

Front panel appearance diagram:

4G AI Fleet Management System Support 2 x RS232 1 x RS485 4CH 8CH

Serial Name Silk Print Detailed description
Remote receiver IR Infrared receiver, used to receive remote control signal
② Indicator LED PWR Power Indicator LED. LED ON when the power supply is normal
GPS GPS status indicator. The light is always on when the GPS is working normally, and it flashes when there is no signal
ODM Indicate heating or other functions
ALM Alarm Indicator LED. LED ON when the alarm is generated
HDD HDD Indicator LED. LED is always on when HDD is recognized, flashes when writing
TF TF card Indicator LED. LED is always on when TF card is recognized, flashes when writing
REC Video indicator LED. Flashes when recording
NET Network status indicator. The light will always be on when the network connection is successful, and flash when the network is not connected
③ Electronic locks LOCK When the electronic lock is locked, MDVR automatically turns on; when the electronic lock is opened, MDVR automatically turns off
④ USB port USB Use to backup files and upgrade firmware version
⑤

HDD box

TF card port

SIM card port

 Open the interface baffle through electronic lock, insert HDD/SSD, TF card and SIM card. When the electronic lock is locked, please do not open the interface baffle forcefully, it will damage the machine

Appearance of the Back panel :

Serial Name Silk Print Description
① AV input Port AV IN1 1CH audio and video input interface
AV IN2 2CH audio and video input interface
AV IN3 3CH audio and video input interface
AV IN4 4CH audio and video input interface
② NET Port LAN Wired network port, can connect to wired network or IP camera
③ Fireproof box USB External fireproof box, disaster recovery video
④ Speaker SPK Connect the intercom handle or speaker
⑤ CVBS output Port AV OUT CVBS audio and video output interface
⑥ IO/Serial Port IO/Serial 8xI/O input, 2xI/O Output, 2xRS232, 1xRS485, 1xPulse speed
⑦ 4G Antenna Port 4G External special 4G antenna. It should be placed where without shielding and interference
⑧ WiFi Antenna Port WiFi External special WiFi antenna. It should be placed where without shielding and interference. Optional
⑨ GPS Antenna Port GPS External special GPS antenna. It should be placed where without shielding and interference
⑩ VGA output Port VGA VGA audio and video output interface
⑪ Power Port DC8-36V Power Input port

4G AI Fleet Management System Support 2 x RS232 1 x RS485 4CH 8CH4G AI Fleet Management System Support 2 x RS232 1 x RS485 4CH 8CH4G AI Fleet Management System Support 2 x RS232 1 x RS485 4CH 8CH4G AI Fleet Management System Support 2 x RS232 1 x RS485 4CH 8CH4G AI Fleet Management System Support 2 x RS232 1 x RS485 4CH 8CH4G AI Fleet Management System Support 2 x RS232 1 x RS485 4CH 8CH
