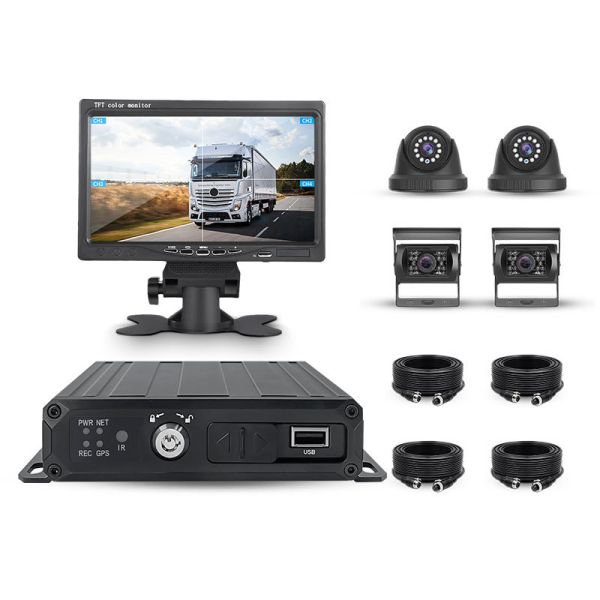

4CH SD card Mobile DVR Dashboard Support multi-channel comparison playback
4CH SD card Mobile DVR Dashboard Support multi-channel comparison playback
4CH SD card Mobile DVR Dashboard Support multi-channel comparison playback
4CH SD card Mobile DVR Dashboard Support multi-channel comparison playback
4CH SD card Mobile DVR Dashboard Support multi-channel comparison playback
4CH SD card Mobile DVR Dashboard Support multi-channel comparison playback
4CH SD card Mobile DVR Dashboard Support multi-channel comparison playback
4CH SD card Mobile DVR Dashboard Support multi-channel comparison playback
4CH SD card Mobile DVR Dashboard Support multi-channel comparison playback
4CH SD card Mobile DVR Dashboard Support multi-channel comparison playback
4CH SD card Mobile DVR Dashboard Support multi-channel comparison playback
4CH SD card Mobile DVR Dashboard Support multi-channel comparison playback
Specifications
Brand Name :
OEM/ODM
Model Number :
OX-MD204-4CH
Certification :
CE, ROHS FCC
Place of Origin :
China
MOQ :
1pc
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
5000/pcs/month
Delivery Time :
Negotiable
Packaging Details :
Gift Box Size:16*15*7.5cm
Video Channel :
4 channels, 1 to 4 video channels are optional, 4 audio channels
Resolution :
Support 4 channels 1080P, 720P, D1, CIF, etc.
Video compression format :
H.265/H.264 compression format
Alarm Input :
4CH alarm inputs, with alarm linkage function
Description

Product features

1.Industrial design, stable and reliable, easy to install
2.Video adopts the international mainstream H.265/H.264 encoding format, and the audio adopts G711a encoding. It can support up to 4 channels of 1080P. high compression ratio , clear image, and Use small disk space .
3.Professional vehicle power supply, can adapt to 8 to 36V ultra-wide voltage input, with multiple protection circuits such as overload/short circuit/reverse connection
4.Highly reliable aviation plug input and output interface, easy to install and plug, and stronger Vandal-proof performance
5.Support 4 channels of video and audio input, frame rate and image quality are adjustable
6.Support single SD card Max 512G large capacity recording
7.The video content has the power-off protection function, and the video will be automatically restored when power recovery
8.Support video loss alarm function
9.Independent delay Power shutdown , can support the system to continue running after the vehicle is turned off, the delay time can be set by yourself
10.Support MDVPlayer and standard players, provide playback, analysis, management and other functions
11.Support Firmware upgrade via U disk
12.Choose GPS function

Item Description Feature

Video

subsystem

 Video channel 4 channels, 1 to 4 video channels are optional, 4 audio channels
Resolution Support 4 channels 1080P, 720P, D1, CIF, etc.
Video quality Multiple levels are optional
OSD Various characters can be superimposed, such as date and time and channel ID, etc.
Loop recording Support SD card loop recording and loop coverage
Video mode Support boot recording, timing recording, alarm trigger recording
Preview Support single screen and multi screen

Playback

subsystem

 Video search Supports search at any time within a certain day, and multiple search types are supported

Replay

 Support multi-channel comparison playback
Support fast forward and fast rewind, respectively supporting 2, 4, 8, 16 times speed optional
Support alarm point search and time point search
GUI Graphical interface Support configuration of various parameters through the MDVR menu

other

 Power ON/OFF Support delay power on/off
Support key power on/off and time power on/off machine
