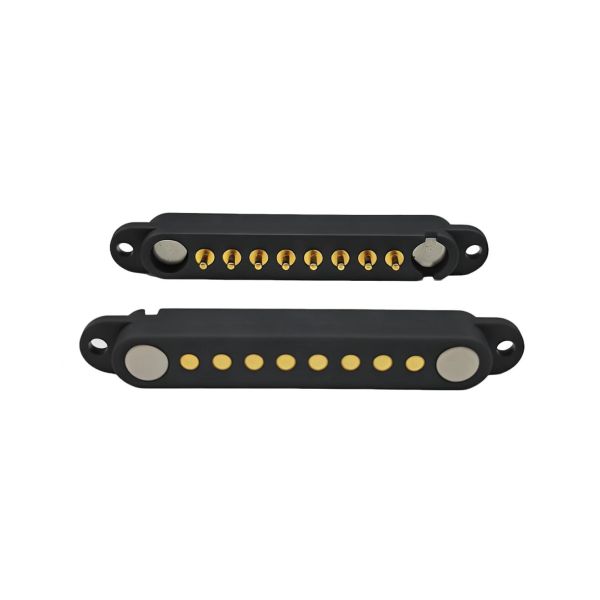

Professional 8-pin magnet attraction spring loaded pogo pin connector with gold plating. UPE is a professional magnetic connector manufacturer with custom design capabilities to meet specific customer requirements.

UPE is ISO9001 and ISO14001 certified, ensuring all products comply with EU RoHS environmental standards. We source key raw materials from Taiwan and Japan, delivering high-performance electronic components at competitive prices.

• Plunger (Contact Pin): Brass (C3604) - Free-cutting brass for conductivity
• Barrel: Brass (C3604)
• Spring: Stainless Steel (SUS304)
• Housing: High-Tech Plastic (PA46 / PA9T) - Suitable for high-temperature processes

• Plunger Plating: 3 micro-inches Gold over 50 micro-inches Nickel
• Barrel Plating: 3 micro-inches Gold over 50 micro-inches Nickel
• Purpose: Gold flash ensures low contact resistance and corrosion resistance; nickel under-plating provides barrier layer

• Rated Current: 2 Amperes (DC)
• Rated Voltage: 12 Volts (DC)
• Contact Resistance: 50 milliOhms Max. (measured at working height)

• Operating Force: 35 ±10 grams-force (gf) at working height
• Durability (Life Cycle): 10,000 cycles (minimum)

• Operational Temperature Range: -40°C to 85°C
• Withstanding Temperature (Peak): 260°C - Suitable for reflow soldering processes

• Certification: RoHS Compliant
• Quality Assurance: 24-Hour Delay Test for stability verification

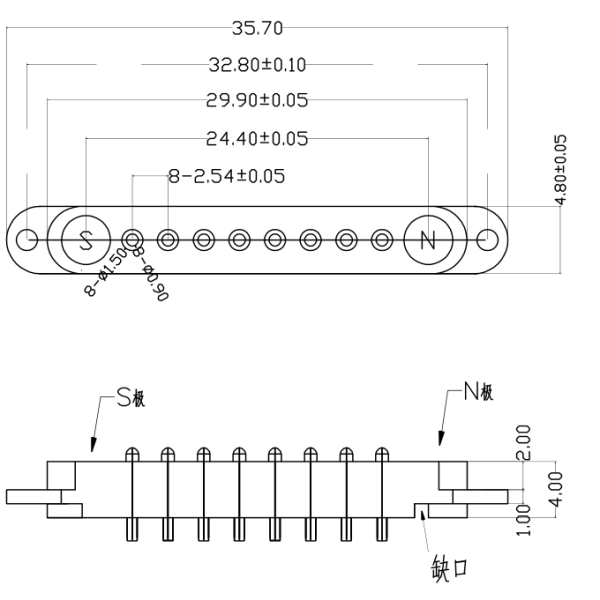

8-Pin Male Magnetic Connector:

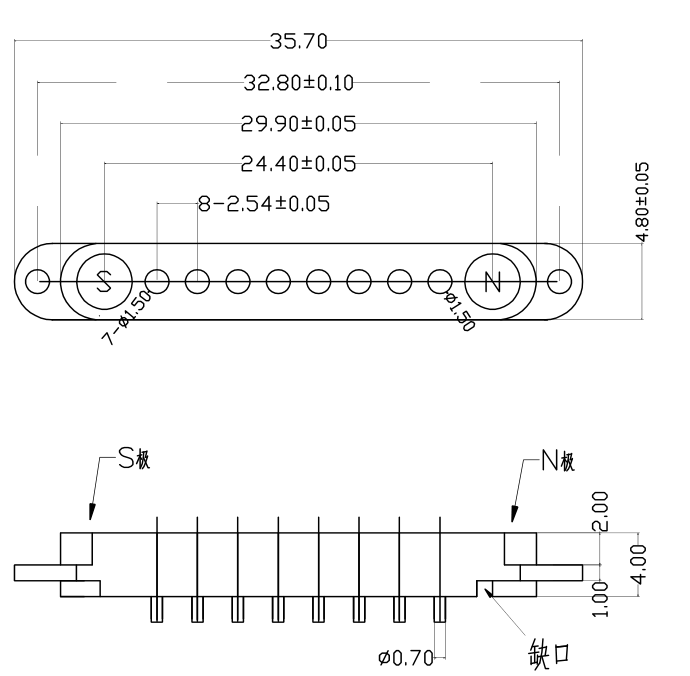

8-Pin Female Magnetic Connector:

• High-Technology Production: Advanced manufacturing techniques for superior quality
• Systematic Management System: Streamlined processes ensure efficiency and consistency
• ISO 9001 Certification: Commitment to international quality management standards
• RoHS Compliance: Meets Restriction of Hazardous Substances regulations
• Short Development Lead Time: Faster prototyping and production cycles
• Competitive Pricing & Stable Quality: Cost-effective solutions without compromising reliability

• Humanized design with automatic adsorption connection experience
• Anti-fall protection: Easy to remove from charging interface without device damage
• Extended lifespan: Up to 100,000-200,000 cycles
• Waterproof design: Female end provides dustproof and waterproof protection (IPX8)
• Fast charging capability: 5A-10A design for large current transmission
• Customizable appearance to match customer application device design
• Anti-short circuit structure design with foolproof protection
• High-frequency signal transmission: Can replace traditional USB 2.0, HDMI 1.3 functions

• Professional customization service
• Fast sample production capability
• Strict quality control system
• Processing with imported components
• High-precision test equipment
• Reasonable cost control procedures
• Product environmental standards

1. Wearable devices, intelligent positioning equipment, children's smart wristbands, smart watches, wearable mobile phones, Bluetooth headsets data cable, charging cable, magnetic strip wire end connection
2. Medical equipment, wireless equipment, data communications equipment, telecommunication equipment, automation and industrial equipment, audio-visual equipment
3. Aviation, aerospace electronic, military communication
4. Automotive, car navigation, test and measurement equipment
5. Consumer Electronics (mobile phones, tablet computers, Bluetooth headsets, camera, watch, portable consumer electronic products)
