90 Degrees Angle Magnetic Connector - 3Pin Male and Female Magnetic Power Connector
90 degrees angle magnetic connector 3pin male and female magnetic power connector. UPE is a professional magnetic connector & magnetic cable connector manufacturer. We have our own professional designers to meet any of your requirements and provide magnetic connector customization service.
Material Composition
  • Plunger (Contact Pin): Brass C3604
  • Barrel: Brass C3604
  • Spring: Stainless Steel (SUS304)
  • Housing: High-Tech Plastic (PA9T)
Plating Specifications
  • Plunger Plating: 1-3 micro-inches Gold over 50 micro-inches Nickel
  • Barrel Plating: 1-3 micro-inches Gold over 50 micro-inches Nickel
  • Note: The gold flash ensures low contact resistance; the nickel under-plating provides a durable barrier layer.
Electrical Characteristics
  • Rated Current: 2 Amperes (DC)
  • Rated Voltage: 12 Volts (DC)
  • Contact Resistance: 50 milliOhms Maximum (measured at working height)
Mechanical Properties
  • Operating Force: 35 ±10 grams-force (gf) at working height
  • Durability (Life Cycle): 10,000 cycles (minimum)
Environmental & Thermal Data
  • Operational Temperature Range: -40°C to +85°C
  • Withstanding Temperature (Peak): 260°C (suitable for reflow soldering processes)
Compliance & Testing
  • Quality Assurance: 24-hour delay test (likely for stability or aging verification)
  • Certification: RoHS Compliant
Technical Specifications
ParameterSpecification
Pin Count3-pin or customized
Pitch2.54mm
TypeRight angle
Pogo Pin MaterialBrass
Housing MaterialPA9T
Magnet MaterialNeodymium iron boron
Magnet GradeN52 (As requirement)
Mechanical Life10000 cycle Min.
Current2.0A
VoltageDC 12V
Contact Resistance50mΩ Max (PIN)
Salt Spray Test48H
Withstanding High Temperature260°C
Operational Temperature-40°C to +85°C
CertificationROHS or REACH compliant product
Testing100% open and short test

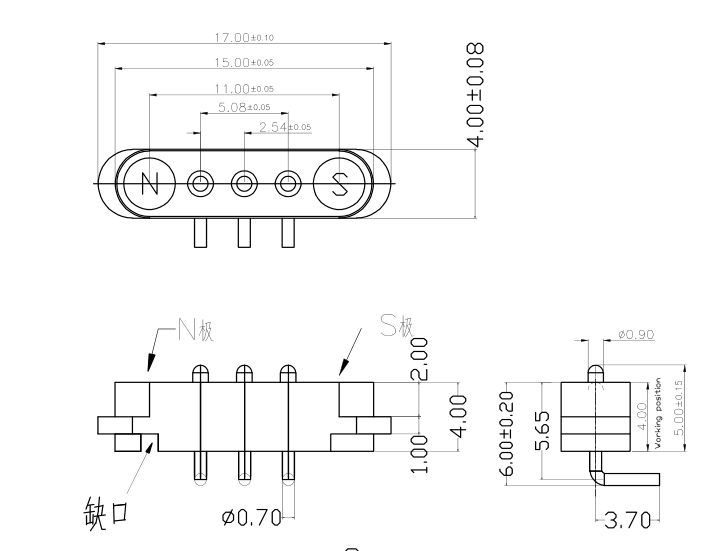

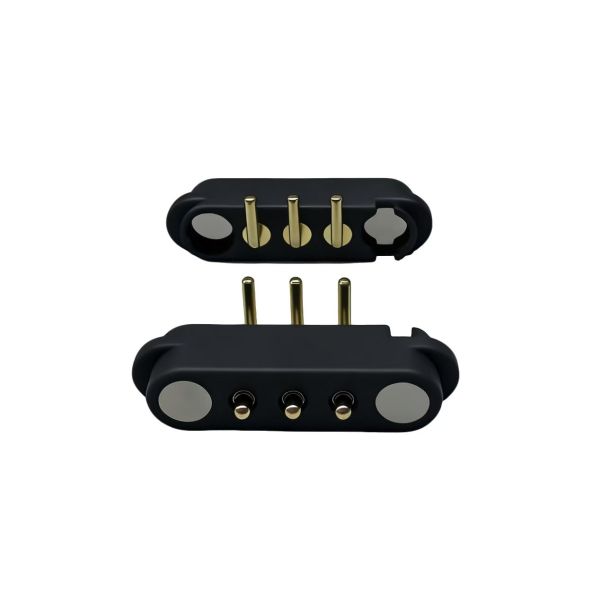

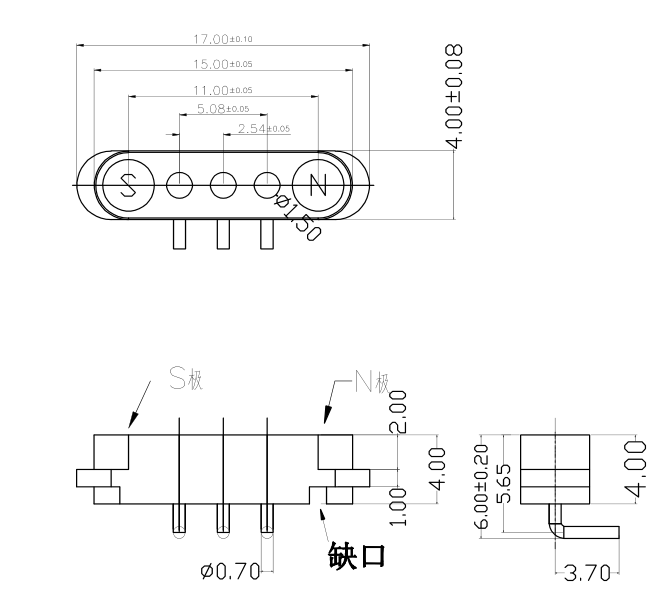

Product Images

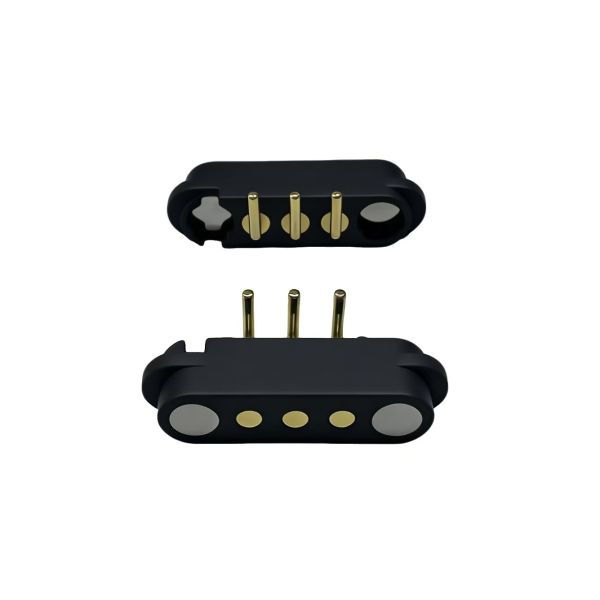

3-Pin Male Magnetic Connector
90 degrees angle magnetic connector 3pin male and female magnetic power connector

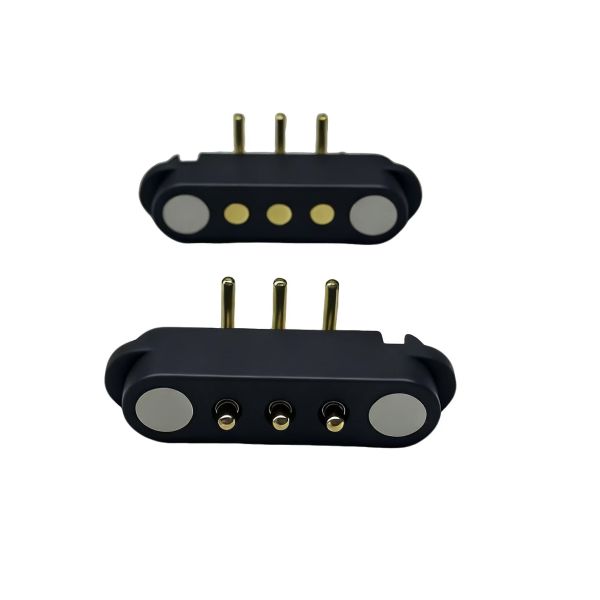

3-Pin Female Magnetic Connector
90 degrees angle magnetic connector 3pin male and female magnetic power connector
Product Advantages
  • Humanized design with automatic adsorption connection experience
  • Anti-fall protection: Easy to remove from charging interface without device damage
  • Extended lifespan: Up to 100,000-200,000 cycles
  • Waterproof design: Female end provides dustproof and waterproof protection (IPX8)
  • Fast charging capability: 5A-10A design for large current transmission
  • Customizable appearance to match customer application device design
  • Anti-short circuit structure design with foolproof protection
  • High-frequency signal transmission: Can replace traditional USB 2.0, HDMI 1.3 functions
Why Customers Choose Us
  • Professional customization service
  • Fast sample production capability
  • Strict quality control system
  • Processing with imported components
  • High-precision test equipment
  • Reasonable cost control procedures
  • Product environmental standards
Application
90 degrees angle magnetic connector 3pin male and female magnetic power connector
Design Services
90 degrees angle magnetic connector 3pin male and female magnetic power connector
Ordering & Shipping Information
  • Payment Methods: T/T, PayPal, OCBC
  • Sample Lead Time: Inventory sample 2-3 working days / Customized sample 5-7 working days
  • Production Lead Time: 10-15 working days
  • Markets Served: America, Europe, Asia, South Africa
  • Trade Term: EXW
  • Services: High quality with reasonable price, OEM service, any special size, color, designs are acceptable
