2.8mm pitch 2pin male and female magnetic connector with 90 degrees angle
2.8mm pitch 2pin male and female magnetic connector with 90 degrees angle
2.8mm pitch 2pin male and female magnetic connector with 90 degrees angle
2.8mm pitch 2pin male and female magnetic connector with 90 degrees angle
2.8mm pitch 2pin male and female magnetic connector with 90 degrees angle
2.8mm pitch 2pin male and female magnetic connector with 90 degrees angle
Specifications
Brand Name :
UPE
Model Number :
2P-2.8PH-4.0H
Certification :
ISO9002
Place of Origin :
China
MOQ :
5000
Price :
$1-$5
Payment Terms :
T/T
Supply Ability :
5KPCS/Day
Delivery Time :
12-15 working days
Packaging Details :
PE bags
Name :
Magnetic Connectors
Material :
PA9T, Brass C3604, SUS304, NdFeB N52
Volatge :
12V
Current :
2A
Mechanical life :
10000 cycle Min.
Force :
35±10gf at working height
Contact resistance :
50mΩ Max (PIN)
Salt spray test :
48H
Withstanding Higt Tenperature :
260°C
Operational Temperature :
-40~85°C
Color :
Black, yellow
Description
2.8mm Pitch 2-Pin Magnetic Connector with 90° Angle
2.8mm pitch 2-pin male and female magnetic connector with 90-degree angle. UPE is a professional magnetic connector manufacturer with custom design capabilities to meet specific requirements.
Technical Specifications
Pin Count 2-pin or customized
Pitch 2.8mm
Type Right angle
Pogo Pin Material Brass
Housing Material PA9T
Magnet Material Neodymium iron boron
Magnet Grade N52 (As requirement)
Mechanical Life 10000 cycle Min.
Current 2.0A
Voltage DC 12V
Contact Resistance 50mΩ Max (PIN)
Salt Spray Test 48H
Withstanding High Temperature 260°C
Operational Temperature -40°C to +85°C
Certification ROHS or REACH compliant product
Testing 100% open and short test
Product Images

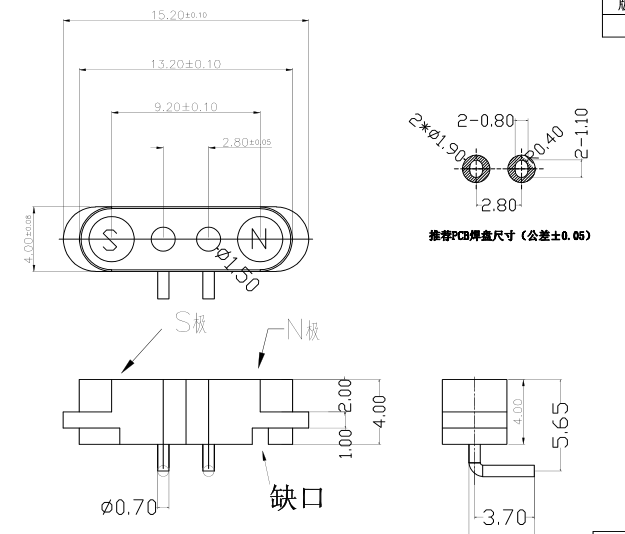

2-Pin Male Magnetic Connector
2.8mm pitch 2pin male and female magnetic connector with 90 degrees angle

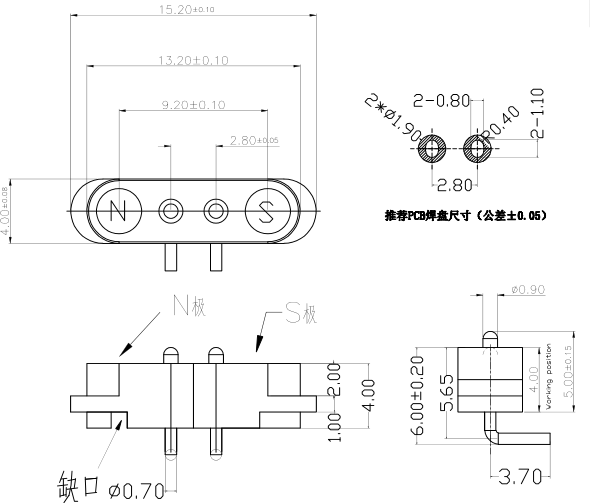

2-Pin Female Magnetic Connector
2.8mm pitch 2pin male and female magnetic connector with 90 degrees angle
Product Advantages
  • Humanized design with automatic adsorption connection experience
  • Anti-fall protection: Easy to remove from charging interface without device damage
  • Extended lifespan: Up to 100,000-200,000 cycles
  • Waterproof design: Female end provides dustproof and waterproof protection (IPX8)
  • Fast charging capability: 5A-10A design for large current transmission
  • Customizable appearance to match customer application device design
  • Anti-short circuit structure design with foolproof protection
  • High-frequency signal transmission: Can replace traditional USB 2.0, HDMI 1.3 functions
Why Customers Choose Us
  • Professional customization service
  • Fast sample production capability
  • Strict quality control system
  • Processing with imported components
  • High-precision test equipment
  • Reasonable cost control procedures
  • Product environmental standards
Application
2.8mm pitch 2pin male and female magnetic connector with 90 degrees angle
Design Services
2.8mm pitch 2pin male and female magnetic connector with 90 degrees angle
Ordering & Shipping Information

Payment Methods: T/T, PayPal, OCBC

Sample Lead Time: Inventory sample 2-3 working days / Customized sample 5-7 working days

Production Lead Time: 10-15 working days

Markets Served: America, Europe, Asia, South Africa

Trade Term: EXW

Services: High quality with reasonable price, OEM service, any special size, color, designs are acceptable

Packaging & Shipping
2.8mm pitch 2pin male and female magnetic connector with 90 degrees angle
