PA46 or PA97 housing 2.54mm pitch 5pin Magnet Connector Spring 5Pin Charge Power Pogopin
PA46 or PA97 housing 2.54mm pitch 5pin Magnet Connector Spring 5Pin Charge Power Pogopin
PA46 or PA97 housing 2.54mm pitch 5pin Magnet Connector Spring 5Pin Charge Power Pogopin
PA46 or PA97 housing 2.54mm pitch 5pin Magnet Connector Spring 5Pin Charge Power Pogopin
PA46 or PA97 housing 2.54mm pitch 5pin Magnet Connector Spring 5Pin Charge Power Pogopin
PA46 or PA97 housing 2.54mm pitch 5pin Magnet Connector Spring 5Pin Charge Power Pogopin
Specifications
Brand Name :
UPE
Model Number :
5P-2.54PH-4.0H
Certification :
ISO9002
Place of Origin :
China
MOQ :
5000
Price :
$1-$5
Payment Terms :
T/T
Supply Ability :
5KPCS/Day
Delivery Time :
12-15 working days
Packaging Details :
PE bags
Name :
Magnetic Connectors
Material :
PA46/PA9T, Brass C3604, SUS304, NdFeB N52
Volatge :
12V
Current :
2A
Mechanical life :
10000 cycle Min.
Force :
35±10gf at working height
Contact resistance :
50mΩ Max (PIN)
Salt spray test :
48H
Withstanding Higt Tenperature :
260°C
Operational Temperature :
-40~85°C
Color :
Black, yellow
Description
PA46 or PA97 Housing 2.54mm Pitch 5-Pin Magnetic Connector

PA46 or PA97 housing 2.54mm pitch 5-pin magnetic connector with spring-loaded pogo pins for charging and power applications. Union Precision Electronics Co., Ltd. is a professional manufacturer specializing in the R&D and production of connector components, offering competitive solutions including pogo pin connectors, magnetic connectors, and industrial waterproof connectors.

Applications
  • Telecommunications
  • Medical Devices
  • Aerospace & Aviation
  • Automotive
  • Wireless Equipment
  • Wearable Technology
  • Industrial Testing Equipment
  • Computer Peripherals
Materials & Construction
  • Plunger: Brass C3604
  • Barrel: Brass C3604
  • Spring: Stainless Steel SUS304
  • Housing/Insulation: Engineering Plastic (PA46 or PA9T - Heat-resistant nylon)
  • Magnet: Sintered Neodymium Iron Boron (NdFeB)
  • Grade: N52
  • Polarity: S (South Pole) - N (North Pole) orientation specified
  • Corrosion Protection: Salt spray test for 24 hours
Plating & Surface Finish
  • Plunger & Barrel:
  • Base Layer: Nickel (Ni), thickness ≥ 50 microinches (≈1.27 µm)
  • Top Layer: Gold (Au), thickness 1-3 microinches (≈0.025 - 0.076 µm)
  • Purpose: Provides excellent electrical conductivity, low contact resistance, and corrosion protection
  • Film Thickness Test Note: Measurement is taken 1.0mm away from the riveting point
Technical Specifications
Pin Count 5-pin or customized
Pitch 2.54mm
Type DIP
Pogo Pin Material Brass
Housing Material PA46/PA9T
Magnet Material Neodymium iron boron
Magnet Grade N52 (As requirement)
Mechanical Life 10000 cycle Min.
Current 2.0A
Voltage DC 12V
Contact Resistance 50mΩ Max (PIN)
Salt Spray Test 48H
Withstanding High Temperature 260°C
Operational Temperature -40°C to +85°C
Certification ROHS or REACH compliant product
Testing 100% open and short test
Product Images

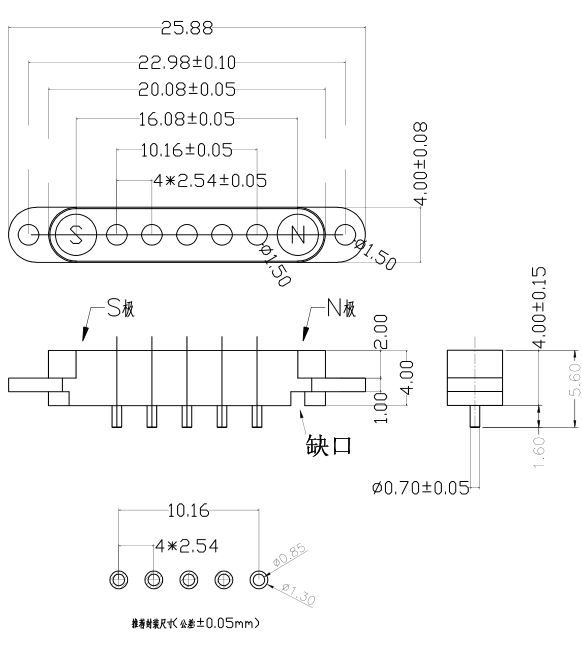

5-Pin Male Magnetic Connector:
PA46 or PA97 housing 2.54mm pitch 5pin Magnet Connector Spring 5Pin Charge Power Pogopin

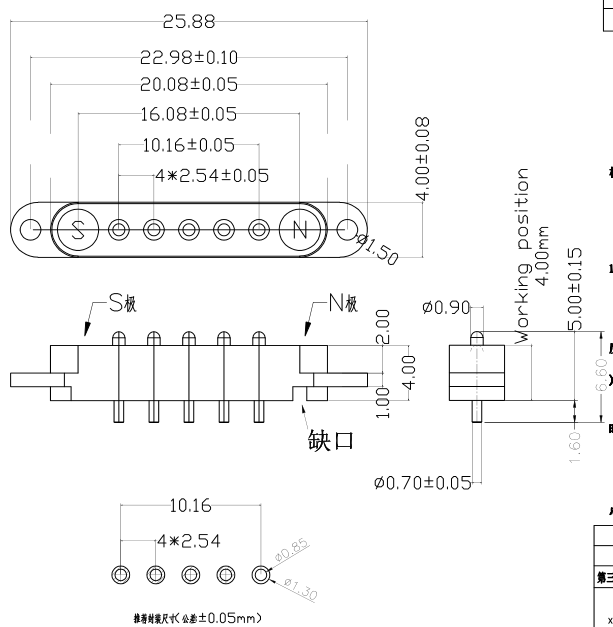

5-Pin Female Magnetic Connector:
PA46 or PA97 housing 2.54mm pitch 5pin Magnet Connector Spring 5Pin Charge Power Pogopin
Product Advantages
  • Humanized design with automatic adsorption connection experience
  • Anti-fall protection: Easy to remove from charging interface without device damage
  • Extended lifespan: Up to 100,000-200,000 cycles
  • Waterproof design: Female end provides dustproof and waterproof protection (IPX8)
  • Fast charging capability: 5A-10A design for large current transmission
  • Customizable appearance to match customer application device design
  • Anti-short circuit structure design with foolproof protection
  • High-frequency signal transmission: Can replace traditional USB 2.0, HDMI 1.3 functions
Application Examples
PA46 or PA97 housing 2.54mm pitch 5pin Magnet Connector Spring 5Pin Charge Power Pogopin
Ordering & Shipping Information

Payment Methods: T/T, PayPal, OCBC

Sample Lead Time: Inventory sample 2-3 working days / Customized sample 5-7 working days

Production Lead Time: 10-15 working days

Markets Served: America, Europe, Asia, South Africa

Trade Term: EXW

Services: High quality with reasonable price, OEM service, any special size, color, designs are acceptable

Packaging & Shipping
PA46 or PA97 housing 2.54mm pitch 5pin Magnet Connector Spring 5Pin Charge Power Pogopin
