2.8mm pitch 2pin pogo pin magnetic type Pogo pin docking connector
2.8mm pitch 2pin pogo pin magnetic type Pogo pin docking connector
2.8mm pitch 2pin pogo pin magnetic type Pogo pin docking connector
2.8mm pitch 2pin pogo pin magnetic type Pogo pin docking connector
2.8mm pitch 2pin pogo pin magnetic type Pogo pin docking connector
2.8mm pitch 2pin pogo pin magnetic type Pogo pin docking connector
Specifications
Brand Name :
UPE
Model Number :
2P-2.8PH-4.0H
Certification :
ISO9002
Place of Origin :
China
MOQ :
5000
Price :
$1-$5
Payment Terms :
T/T
Supply Ability :
5KPCS/Day
Delivery Time :
12-15 working days
Packaging Details :
PE bags
Name :
Magnetic Connectors
Material :
PA9T, Brass C3604, SUS304, NdFeB N52
Volatge :
12V
Current :
2A
Mechanical life :
10000 cycle Min.
Force :
35±10gf at working height
Contact resistance :
50mΩ Max (PIN)
Salt spray test :
48H
Withstanding Higt Tenperature :
260°C
Operational Temperature :
-40~85°C
Color :
Black, yellow
Description
2.8mm Pitch 2-Pin Pogo Pin Magnetic Docking Connector
2.8mm pitch 2-pin pogo pin magnetic type docking connector. Union Precision Electronics Co., Ltd. specializes in R&D and production of connector components, offering competitive solutions including pogo pin connectors, magnetic connectors, and industrial waterproof connectors.
Industry Applications
  • Telecommunications
  • Medical Devices
  • Aerospace & Aviation
  • Automotive
  • Wireless Equipment
  • Wearable Technology
  • Industrial Testing Equipment
  • Computer Peripherals
Technical Specifications
Parameter Specification
Pin Count 2-pin or customized
Pitch 2.8mm
Type DIP
Pogo Pin Material Brass
Housing Material PA9T
Magnet Material Neodymium iron boron
Magnet Grade N52 (As requirement)
Mechanical Life 10000 cycle Min.
Current 2.0A
Voltage DC 12V
Contact Resistance 50mΩ Max (PIN)
Salt Spray Test 48H
Withstanding High Temperature 260°C
Operational Temperature -40°C to +85°C
Certification ROHS or REACH compliant product
Testing 100% open and short test
Materials & Construction
  • Plunger: Brass C3604
  • Barrel: Brass C3604
  • Spring: Stainless Steel SUS304
  • Housing/Insulation: Engineering Plastic (PA9T - Heat-resistant nylon)
  • Magnet: Sintered Neodymium Iron Boron (NdFeB)
  • Grade: N52
  • Polarity: S (South Pole) - N (North Pole) orientation specified
  • Corrosion Protection: Salt spray test for 24 hours
Plating & Surface Finish
Plunger & Barrel:
  • Base Layer: Nickel (Ni), thickness ≥ 50 microinches (≈1.27 µm)
  • Top Layer: Gold (Au), thickness 1-3 microinches (≈0.025 - 0.076 µm)
  • Purpose: Provides excellent electrical conductivity, low contact resistance, and corrosion protection
  • Film Thickness Test Note: Measurement is taken 1.0mm away from the riveting point
Electrical Specifications
Contact Resistance: 50 mΩ Max. at working height
Work Temperature:
Withstanding High Temperature: 260°C
Operational Temperature: -40°C to +85°C
Mechanical Specifications
Force: 35±10gf at working height
Durability: 10000 cycles (min)
Product Images

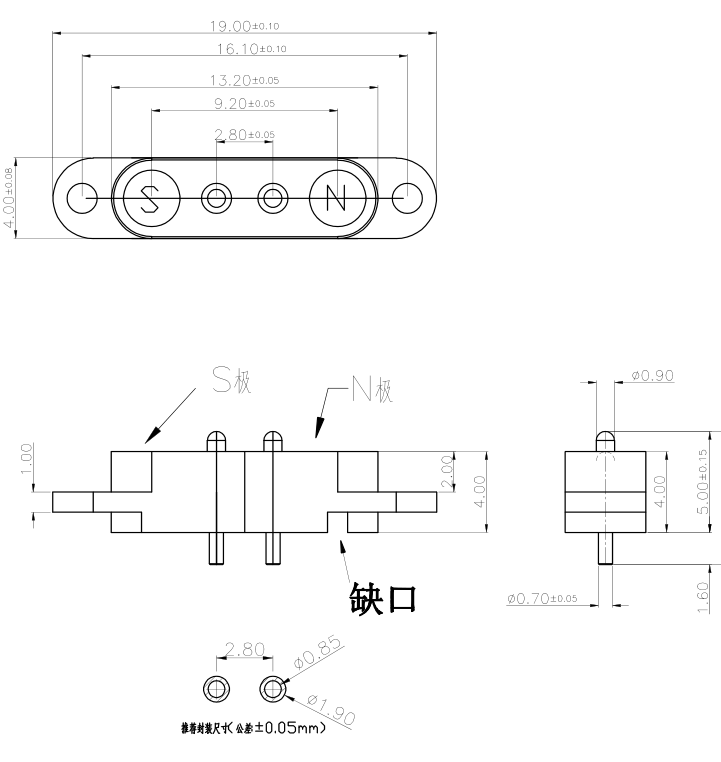

2-Pin Male Magnetic Connector
2.8mm pitch 2pin pogo pin magnetic type Pogo pin docking connector

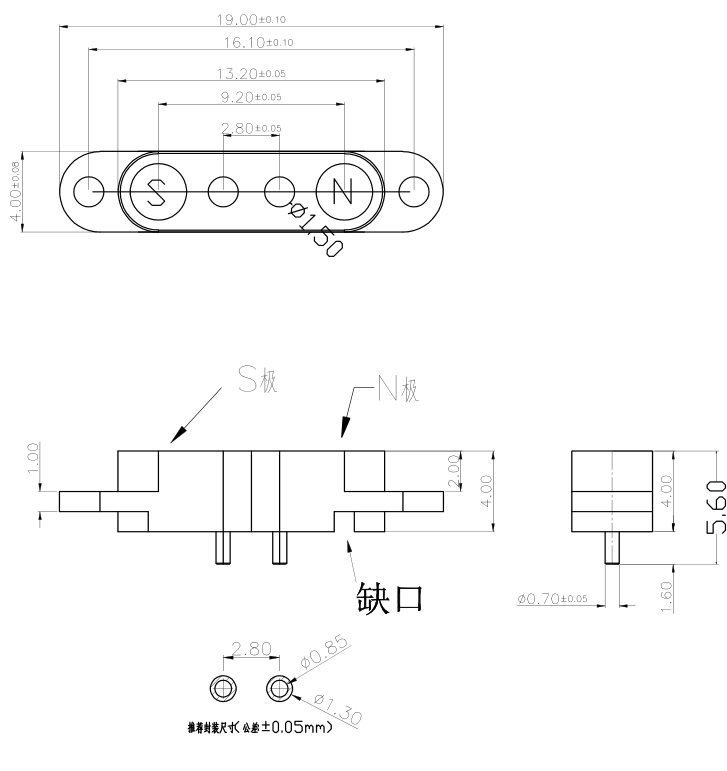

2-Pin Female Magnetic Connector
2.8mm pitch 2pin pogo pin magnetic type Pogo pin docking connector
Product Advantages
  • Humanized design with automatic adsorption connection experience
  • Anti-fall protection: Easy to remove from charging interface without device damage
  • Extended lifespan: Up to 100,000-200,000 cycles
  • Waterproof design: Female end provides dustproof and waterproof protection (IPX8)
  • Fast charging capability: 5A-10A design for large current transmission
  • Customizable appearance to match customer application device design
  • Anti-short circuit structure design with foolproof protection
  • High-frequency signal transmission: Can replace traditional USB 2.0, HDMI 1.3 functions
Why Customers Choose Us
  • Professional customization service
  • Fast sample production capability
  • Strict quality control system
  • Processing with imported components
  • High-precision test equipment
  • Reasonable cost control procedures
  • Product environmental standards
Application
2.8mm pitch 2pin pogo pin magnetic type Pogo pin docking connector
Design Services
2.8mm pitch 2pin pogo pin magnetic type Pogo pin docking connector
Ordering & Shipping Information
Payment Methods: T/T, PayPal, OCBC
Sample Lead Time: Inventory sample 2-3 working days / Customized sample 5-7 working days
Production Lead Time: 10-15 working days
Markets Served: America, Europe, Asia, South Africa
Trade Term: EXW
Services: High quality with reasonable price, OEM service, any special size, color, designs are acceptable
Packaging & Shipping
2.8mm pitch 2pin pogo pin magnetic type Pogo pin docking connector
