2A 2.54mm pitch 4pin male female pogo pin connector magnetic power connector
2A 2.54mm pitch 4pin male female pogo pin connector magnetic power connector
2A 2.54mm pitch 4pin male female pogo pin connector magnetic power connector
2A 2.54mm pitch 4pin male female pogo pin connector magnetic power connector
2A 2.54mm pitch 4pin male female pogo pin connector magnetic power connector
2A 2.54mm pitch 4pin male female pogo pin connector magnetic power connector
Specifications
Brand Name :
UPE
Model Number :
3P-2.54PH-4.0H
Certification :
ISO9002
Place of Origin :
China
MOQ :
5000
Price :
$1-$5
Payment Terms :
T/T
Supply Ability :
5KPCS/Day
Delivery Time :
12-15 working days
Packaging Details :
PE bags
Name :
Magnetic Connectors
Material :
PA9T, Brass C3604, SUS304, NdFeB N52
Volatge :
12V
Current :
2A
Mechanical life :
10000 cycle Min.
Force :
40±10gf at working height
Contact resistance :
50mΩ Max (PIN)
Salt spray test :
48H
Withstanding Higt Tenperature :
260°C
Operational Temperature :
-40~85°C
Color :
Black, yellow
Description
2A 2.54mm Pitch 4-Pin Male Female Pogo Pin Connector Magnetic Power Connector
Union Precision Electronic Ltd (UPE) is a professional custom manufacturer of pogo pin connectors and magnetic connectors. Our products are widely used across various industries including telecommunications, medical devices, aerospace & aviation, automotive, wireless equipment, wearable technology, and industrial testing equipment.
Product Characteristics
A. Material
  • Housing: High Plastic Black (UL94V-0)
  • Plunger: Brass C3604
  • Barrel: Brass C3604
  • Spring: Stainless Steel Wire
B. Plating
  • Plunger: Plating Min. 3μ Au over Min. 50μ Ni
  • Barrel: Plating Min. 3μ Au over Min. 50μ Ni
  • Spring: Plating Min. 1μ Au
C. Electrical
  • Operating Voltage: 12V Max
  • Operating Current: 2A Max
  • Contact Resistance: 30mΩ Max at working height (Quiescence)
D. Mechanical
  • Total Stroke: 1.10mm
  • Working Height: 1.0mm
  • Spring Force: 45gf ±10gf at working height
  • Mechanical Life: 10,000 cycles min
  • Do not exceed the maximum allowed compression
E. Environmental
  • Storage and Operating Temperature Range: -40°C to +85°C
  • Humidity Range: 10% RH to 90% RH
  • Salt Spray: 48H
F. Others
  • The dimensions marked * are critical and should be checked in production
  • RoHS Compliant Product
Technical Specifications
Parameter Specification
Pin Count 3-pin or customized
Pitch 2.54mm
Type DIP
Pogo Pin Material Brass
Housing Material PA9T
Magnet Material Neodymium Iron Boron
Magnet Grade N52 (As requirement)
Mechanical Life 10000 cycle Min.
Current 2.0A
Voltage DC 12V
Contact Resistance 50mΩ Max (PIN)
Salt Spray Test 48H
Withstanding High Temperature 260°C
Operational Temperature -40~85°C
Certification ROHS or REACH compliant product
Testing 100% open and short test
Product Images

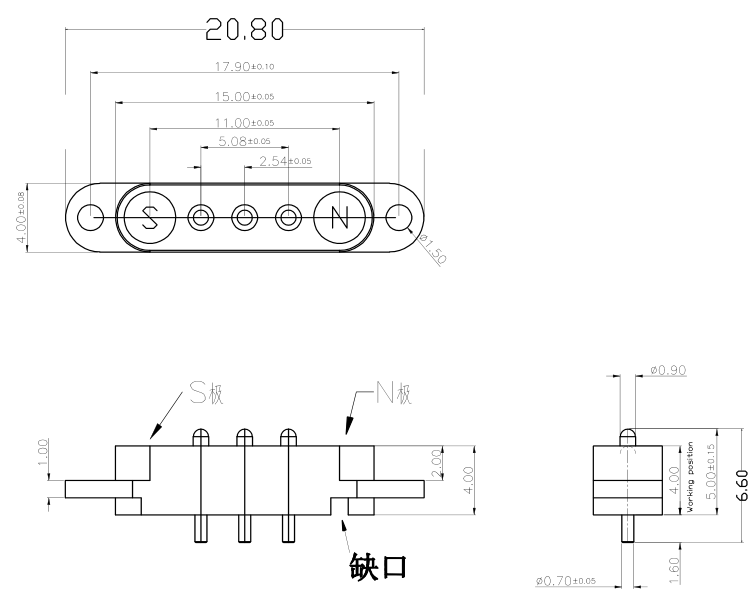

3-Pin Male Magnetic Connector
2A 2.54mm pitch 4pin male female pogo pin connector magnetic power connector

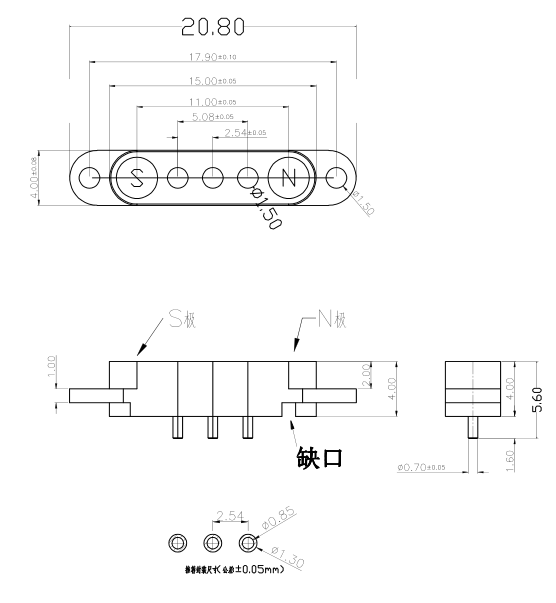

3-Pin Female Magnetic Connector
2A 2.54mm pitch 4pin male female pogo pin connector magnetic power connector
Company Competitive Advantages
  • High-Technology Production for superior product quality
  • Systematic Management System for efficiency and consistency
  • ISO 9001 Certification for quality management standards
  • RoHS Compliance meeting hazardous substances regulations
  • Short Development Lead Time for faster production cycles
  • Competitive Pricing & Stable Quality for cost-effective solutions
Product Advantages
  • Humanized design with automatic adsorption connection experience
  • Anti-fall protection: Easy to remove from charging interface without device damage
  • Extended lifespan: Up to 100,000-200,000 cycles
  • Waterproof design: Female end provides dustproof and waterproof protection (IPX8)
  • Fast charging capability: 5A-10A design for large current transmission
  • Customizable appearance to match customer application device design
  • Anti-short circuit structure design with foolproof protection
  • High-frequency signal transmission: Can replace traditional USB 2.0, HDMI 1.3 functions
Application Example
2A 2.54mm pitch 4pin male female pogo pin connector magnetic power connector
Customized single row 7-pin gold plating DIP pogo pin connector for PCB technology
Ordering & Shipping Information
Payment Methods: T/T, PayPal, OCBC
Sample Lead Time: Inventory sample 2-3 working days / Customized sample 5-7 working days
Production Lead Time: 10-15 working days
Markets Served: America, Europe, Asia, South Africa
Trade Term: EXW
Services: High quality with reasonable price, OEM service, any special size, color, designs are acceptable
2A 2.54mm pitch 4pin male female pogo pin connector magnetic power connector
Packaging and shipping example
