Customized 6pin male and female magnetic right angle pogo pin connector
Customized 6pin male and female magnetic right angle pogo pin connector
Customized 6pin male and female magnetic right angle pogo pin connector
Customized 6pin male and female magnetic right angle pogo pin connector
Customized 6pin male and female magnetic right angle pogo pin connector
Customized 6pin male and female magnetic right angle pogo pin connector
Specifications
Brand Name :
UPE
Model Number :
6P-2.54PH-4.0H
Certification :
ISO9002
Place of Origin :
China
MOQ :
5000
Price :
$1-$5
Payment Terms :
T/T
Supply Ability :
5KPCS/Day
Delivery Time :
12-15 working days
Packaging Details :
PE bags
Name :
Magnetic Connectors
Material :
PA9T, Brass C3604, SUS304, NdFeB N52
Volatge :
12V
Current :
2A
Mechanical life :
10000 cycle Min.
Force :
35±10gf at working height
Contact resistance :
50mΩ Max (PIN)
Salt spray test :
48H
Withstanding Higt Tenperature :
260°C
Operational Temperature :
-40~85°C
Color :
Black, yellow
Description
Custom 6-Pin Magnetic Right Angle Pogo Pin Connector
Union Precision Electronic Ltd (UPE) specializes in custom pogo pin connectors and magnetic connectors for telecommunications, medical devices, aerospace, automotive, wireless equipment, wearable technology, and industrial testing applications.
Material Composition
  • Plunger (Contact Pin): Brass C3604
  • Barrel: Brass C3604
  • Spring: Stainless Steel (SUS304)
  • Housing: High-Tech Plastic (PA9T)
Plating Specifications
Plunger and Barrel Plating: 1-3 micro-inches Gold over 50 micro-inches Nickel. The gold flash ensures low contact resistance while the nickel under-plating provides a durable barrier layer.
Electrical Characteristics
  • Rated Current: 2 Amperes (DC)
  • Rated Voltage: 12 Volts (DC)
  • Contact Resistance: 50 milliOhms Maximum (at working height)
Mechanical Properties
  • Operating Force: 35 ±10 grams-force at working height
  • Durability: 10,000 cycles minimum
Environmental & Thermal Specifications
  • Operational Temperature: -40°C to +85°C
  • Withstanding Temperature: 260°C (suitable for reflow soldering)
Compliance & Testing
  • Quality Assurance: 24-hour delay testing
  • Certification: RoHS Compliant
Technical Specifications
Parameter Specification
Pin Count 6-pin or customized
Pitch 2.54mm
Type Right angle
Pogo Pin Material Brass
Housing Material PA9T
Magnet Material Neodymium iron boron
Magnet Grade N52 (As requirement)
Mechanical Life 10000 cycle Min.
Current 2.0A
Voltage DC 12V
Contact Resistance 50mΩ Max (PIN)
Salt Spray Test 48H
Withstanding High Temperature 260°C
Operational Temperature -40°C to +85°C
Certification ROHS or REACH compliant product
Testing 100% open and short test
Product Images

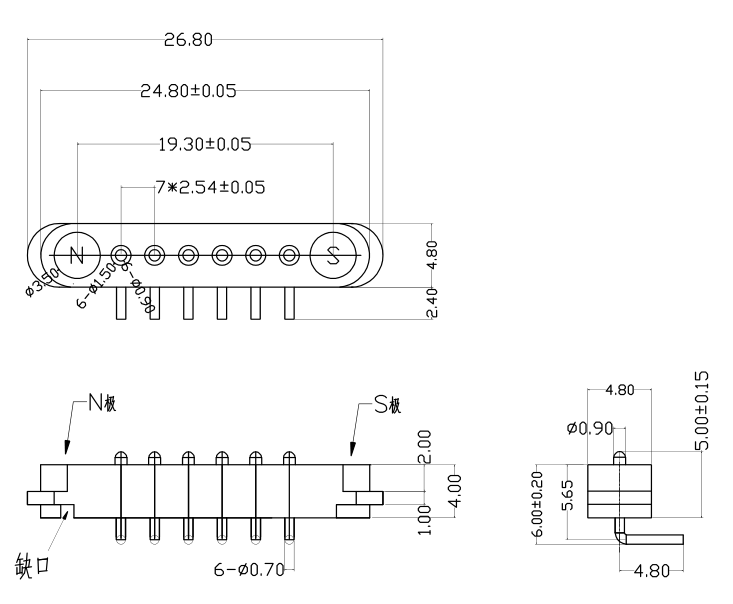

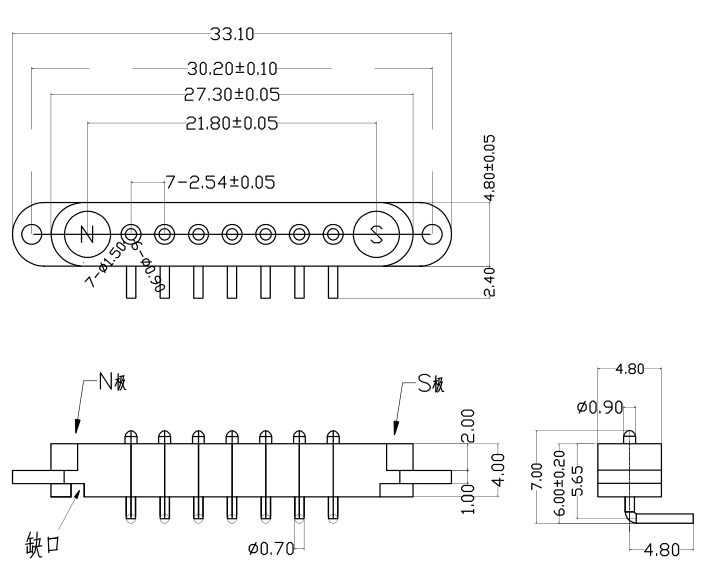

6-Pin Male Magnetic Connector
Customized 6pin male and female magnetic right angle pogo pin connector
6-Pin Female Magnetic Connector
Customized 6pin male and female magnetic right angle pogo pin connector
Company Competitive Advantages
  • High-Technology Production for superior product quality
  • Systematic Management System for efficiency and consistency
  • ISO 9001 Certification for quality management standards
  • RoHS Compliance meeting hazardous substances regulations
  • Short Development Lead Time for faster production cycles
  • Competitive Pricing & Stable Quality for cost-effective solutions
Product Advantages
  • Humanized design with automatic adsorption connection experience
  • Anti-fall protection: Easy to remove from charging interface without device damage
  • Extended lifespan: Up to 100,000-200,000 cycles
  • Waterproof design: Female end provides dustproof and waterproof protection (IPX8)
  • Fast charging capability: 5A-10A design for large current transmission
  • Customizable appearance to match customer application device design
  • Anti-short circuit structure design with foolproof protection
  • High-frequency signal transmission: Can replace traditional USB 2.0, HDMI 1.3 functions
Application Examples
Customized 6pin male and female magnetic right angle pogo pin connector
Design Services
Customized 6pin male and female magnetic right angle pogo pin connector
Ordering & Shipping Information
Payment Methods: T/T, PayPal, OCBC
Sample Lead Time: Inventory sample 2-3 working days / Customized sample 5-7 working days
Production Lead Time: 10-15 working days
Markets Served: America, Europe, Asia, South Africa
Trade Term: EXW
Services: High quality with reasonable price, OEM service, any special size, color, designs are acceptable
Packaging & Shipping
Customized 6pin male and female magnetic right angle pogo pin connector
Contact Us
Any questions, please send to union@upetech.net
Send your message to this supplier
Send Now

Customized 6pin male and female magnetic right angle pogo pin connector

Ask Latest Price
